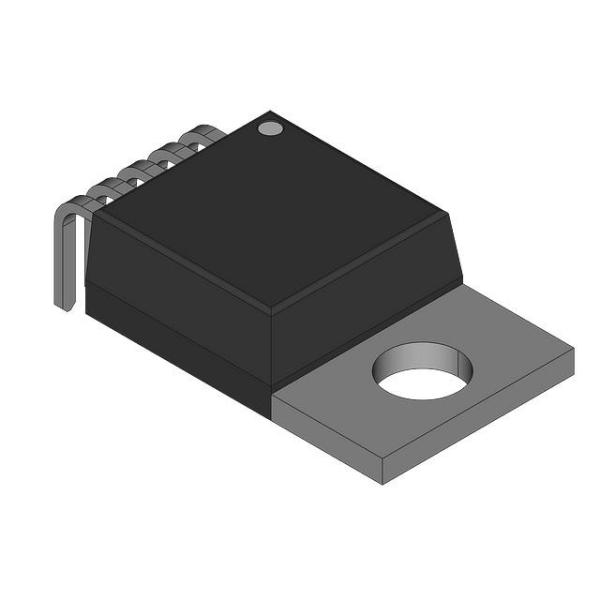

KA5Q0765RTHYDTU Integrated Circuit Chip Quasi Resonant Converter Controller, Internal Burst Mode Controller
KA5Q0765RTHYDTU Integrated Circuit Chip Quasi Resonant Converter Controller, Internal Burst Mode Controller
Specifications
Model Number :
KA5Q0765RTHYDTU
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
8100pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Description :
Converter Offline Topology 18kHz ~ 22kHz TO-220F-5L (Forming)
Drain-Gate Voltage (RGS=1MΩ) :
650 V
Gate-Source (GND) Voltage :
±30 V
Single Pulsed Avalanch Energy :
370 mJ
Avalanch Current :
17 A
Supply Voltage :
40 V
Total Power Dissipation :
45 W
Description


KA5Q0765RTH
Fairchild Power Switch(FPS)

Features
• Quasi Resonant Converter Controller
• Internal Burst Mode Controller for Stand-by Mode
• Pulse by Pulse Current Limiting
• Over Current Latch Protection
• Over Voltage Protection (Vsync: Min. 11V)
• Internal Thermal Shutdown Function
• Under Voltage Lockout
• Internal High Voltage Sense FET
• Auto-Restart Mode
• Primary Side Regulation

Description
The Fairchild Power Switch(FPS) product family is specially designed for an off-line SMPS with minimal external components. The Fairchild Power Switch(FPS) consists of a high voltage power SenseFET and a current mode PWM IC. The integrated PWM controller includes the fixed oscillator, the under voltage lock out, the leading edge blanking, the optimized gate turn-on/turn-off driver, the thermal shut down protection, the over voltage protection, and the temperature compensated precision current sources for loop compensation and fault protection circuitry. Compared to a discrete MOSFET and a controller or a RCC switching converter solutions, a Fairchild Power Switch(FPS) can reduce the total number of components, design size, and weight, so it will improve efficiency, productivity, and system reliability. It has a basic platform well suited for cost-effective design in a quasi-resonant converter as a C-TV power supply.

Absolute Maximum Ratings (Ta=25°C, unless otherwise specified)

ParameterSymbolValueUnit
Drain-Gate Voltage (RGS=1MΩ)VDGR650V
Gate-Source (GND) VoltageVGS±30V
Drain Current Pulsed (2)IDM28ADC
Single Pulsed Avalanch Energy (3)EAS370mJ
Avalanch Current (4)IAS17A
Continuous Drain Current (Tc = 25°C)ID7ADC
Continuous Drain Current (TC=100°C)ID4.5ADC
Supply VoltageVCC40V
Analog Input Voltage RangeVsync-0.3 to 13V
VFB-0.3 to VCCV
Total Power DissipationPD45W
Operating Junction TemperatureTJ+150°C
Operating Ambient TemperatureTA-25 to +85°C
Storage Temperature RangeTSTG-55 to +150°C
Thermal ResistanceRthjc2.98°C/W

Notes:
1. Tj = 25°C to 150°C
2. Repetitive rating: Pulse width limited by maximum junction temperature
3. L = 30mH, VDD = 50V, RG = 25Ω, starting Tj = 25°C
4. L = 13uH, starting Tj = 25°C

Internal Block Diagram

Stock Offer (Hot Sell)

Part NO.Q'tyMFGD/CPackage
PCF8563T/51284015+SOP
LX1996ILQ5037MICROSEMI15+QFN
PI3A125CEX10000PERICOM16+SC70-5
LM301AN6980NSC13+DIP-8
MAX8211ESA+8163MAXIM16+SOP
ZXMP6A13GTA1800DIODES12+SOT223
MC34118L4908UTC16+SOP-28
LM78M05CDTX10000NSC15+TO-252
LT6105IMS8#PBF14438LT15+MSOP
MC74VHCT138ADTR24448ON10+TSSOP
MOC3042SM5497FAIRCHILD16+SOP
AUIRFP29075433IR13+TO-247
BTS134D3664INFINEO07+TO-252
CY7C1041DV33-10BVXIT1904CYPRESS08+BGA
MIC2025-1YM6346MICREL15+SOP
LM35DT1590NSC14+TO-220
MCP23017-E/ML5170MICROCHIP15+QFN
MC33064P-5G12224ON16+TO-92
PIC16F648A-I/SS5098MICROCHIP14+SSOP
MMSZ4699T1G25000ON16+SOD-123
MPXV7025DP6183FREESCALE14+SOP
