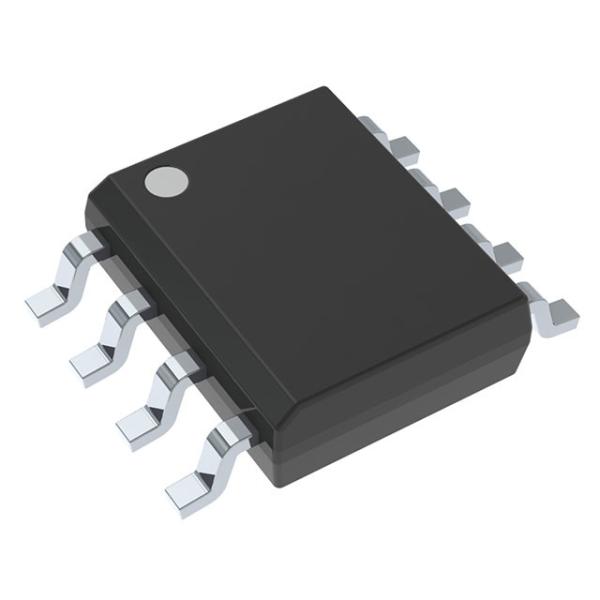

REF02AU Power Management IC Vref Series 5V Precision Voltage Reference
REF02AU Power Management IC Vref Series 5V Precision Voltage Reference
Specifications
Brand Name :
TI
Model Number :
REF02AU
Place of Origin :
Malaysia
MOQ :
10 PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union ， ESCROW
Supply Ability :
5000PCS
Delivery Time :
STOCK
Packaging Details :
REEL
Description :
Series Voltage Reference IC Fixed 5V V ±0.3% 21 mA 8-SOIC
Voltage - Output (Min/Fixed) :
5V
Current - Output :
21mA
Tolerance :
±0.3%
Temperature Coefficient :
15ppm/°C
Noise - 0.1Hz to 10Hz :
4µVp-p
Voltage - Input :
8 V ~ 40 V
Current - Supply :
1.4mA
Operating Temperature :
-40°C ~ 85°C (TA)
Description

REF02AU Power Management IC IC VREF SERIES 5V Precision VOLTAGE REFERENCE

FEATURES

● OUTPUT VOLTAGE: +5V ±0.2% max

● EXCELLENT TEMPERATURE STABILITY: 10ppm/°C max (–40°C to +85°C)

● LOW NOISE: 10µVPP max (0.1Hz to 10Hz)

● EXCELLENT LINE REGULATION: 0.01%/V max

● EXCELLENT LOAD REGULATION: 0.008%/mA max

● LOW SUPPLY CURRENT: 1.4mA max

● SHORT-CIRCUIT PROTECTED

● WIDE SUPPLY RANGE: 8V to 40V

● INDUSTRIAL TEMPERATURE RANGE: –40°C to +85°C

● PACKAGE OPTIONS: DIP-8, SO-8


APPLICATIONS


● PRECISION REGULATORS

● CONSTANT CURRENT SOURCE/SINK

● DIGITAL VOLTMETERS

● V/F CONVERTERS

● A/D AND D/A CONVERTERS

● PRECISION CALIBRATION STANDARD

● TEST EQUIPMENT

Product Attributes Select All
Manufacturer Texas Instruments
Packaging Tape & Reel (TR)
Part Status Active
Reference Type Series
Output Type Fixed
Voltage - Output (Min/Fixed) 5V
Current - Output 21mA
Tolerance ±0.3%
Temperature Coefficient 15ppm/°C
Noise - 0.1Hz to 10Hz 4µVp-p
Noise - 10Hz to 10kHz -
Voltage - Input 8 V ~ 40 V
Current - Supply 1.4mA
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
