TL082CP Integrated Circuit Chipjfet Input Operational Amplifier High Slew Rate
TL082CP Integrated Circuit Chipjfet Input Operational Amplifier High Slew Rate
Specifications
Brand Name :
TI
Model Number :
TL082CP
Place of Origin :
MEXICO
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union ,paypal
Supply Ability :
10000PCS
Delivery Time :
in stock 2-3days
Packaging Details :
1000PCS/BOX
Certification :
CE/ RoHS
Description :
J-FET Amplifier 2 Circuit 8-PDIP
Amplifier Type :
J-FET
Number of Circuits :
2
Slew Rate :
13 V/µs
Gain Bandwidth Product :
3MHz
Current - Input Bias :
30pA
Voltage - Input Offset :
3mV
Current - Supply :
1.4mA
Voltage - Supply, Single/Dual (±) :
7 V ~ 36 V, ±3.5 V ~ 18 V
Description

TL082CP Integrated Circuit Chip JFET-INPUT OPERATIONAL AMPLIFIERS

24 DEVICES COVER COMMERCIAL, INDUSTRIAL, AND MILITARY TEMPERATURE RANGES

• Low-Power Consumption

• Wide Common-Mode and Differential Voltage Ranges

• Low Input Bias and Offset Currents

• Output Short-Circuit Protection

• Low Total Harmonic Distortion . . . 0.003% Typ

• High Input Impedance . . . JFET-Input Stage

• Internal Frequency Compensation (Except TL080, TL080A)

• Latch-Up-Free Operation

• High Slew Rate . . . 13 V/µs Typ

• Common-Mode Input Voltage Range Includes VCC+


Product Attributes Select All
Manufacturer Texas Instruments
Series -
Packaging Tube
Part Status Active
Amplifier Type J-FET
Number of Circuits 2
Output Type -
Slew Rate 13 V/µs
Gain Bandwidth Product 3MHz
Current - Input Bias 30pA
Voltage - Input Offset 3mV
Current - Supply 1.4mA
Voltage - Supply, Single/Dual (±) 7 V ~ 36 V, ±3.5 V ~ 18 V
Operating Temperature 0°C ~ 70°C
Mounting Type Through Hole

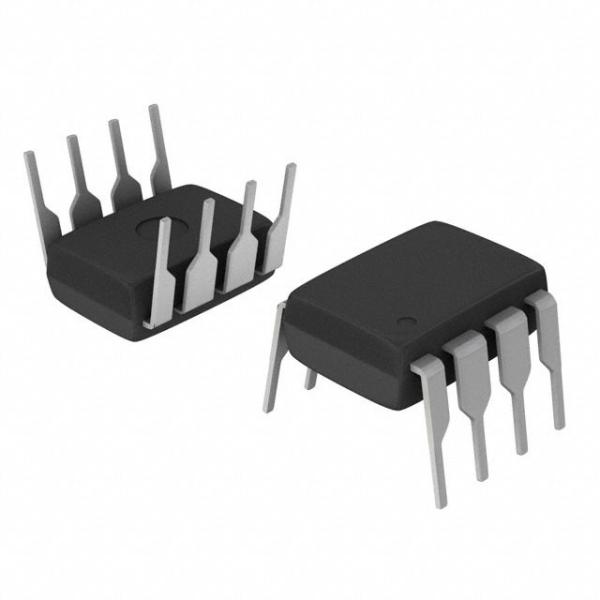

Package / Case 8-DIP (0.300", 7.62mm)
Supplier Device Package 8-PDIP
Base Part Number TL082
