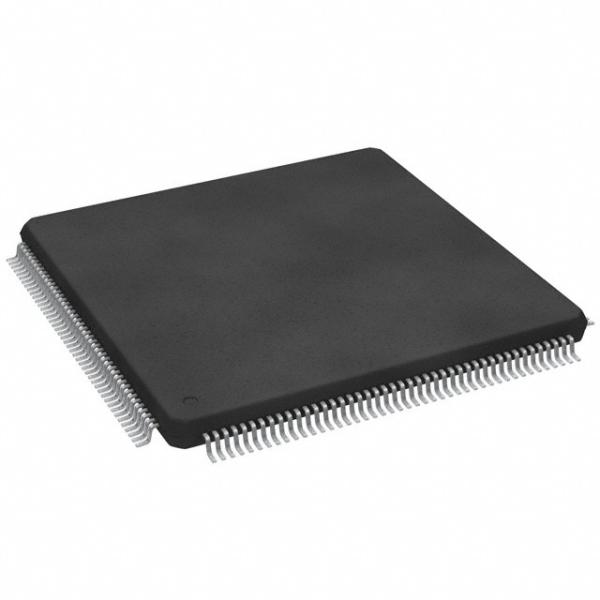

STM32F767IGT6 Integrated Circuit Chip ARM Cortex - M7F 32bit 216 MHz 1 MB 512 KB
STM32F767IGT6 Integrated Circuit Chip ARM Cortex - M7F 32bit 216 MHz 1 MB 512 KB
Specifications
Brand Name :
ST
Model Number :
STM32F767IGT6
Certification :
ROHS
Place of Origin :
Original & New
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000pcs
Delivery Time :
1-3Days
Packaging Details :
BOX
Description :
ARM® Cortex®-M7 STM32F7 Microcontroller IC 32-Bit Single-Core 216MHz 1MB (1M x 8) FLASH 176-LQFP (24x24)
Series :
ARM Cortex-M7F
Package :
176-LQFP (24x24mm)
Feature :
216 MHz CPU
Voltage :
1.8 - 3.6 V
D/c :
New & Original ST Only
Lead time :
0-3 Days
Program memory :
1MB Flash Memory
Description

Circuit Chip STM32F767IGT6 ARM Cortex-M7F, 32bit, 216 MHz, 1 MB, 512 KB

Arm® Cortex®-M7 32b MCU+FPU, 462DMIPS, up to 2MB Flash/ 512+16+4KB RAM, USB OTG HS/FS, 28 com IF, LCD, DSI

Series Items:

STM32F765BI, STM32F765BG, STM32F765NI, STM32F765NG, STM32F765II, STM32F765IG, STM32F765ZI, STM32F765ZG, STM32F765VI, STM32F765VG

STM32F767BG, STM32F767BI, STM32F767IG, STM32F767II, STM32F767NG, STM32F767NI, STM32F767VG, STM32F767VI, STM32F767ZG, STM32F767ZI

STM32F769AG, STM32F769AI, STM32F769BG, STM32F769BI, STM32F769IG, STM32F769II, STM32F769NG, STM32F769NI

STM32F768AI

Descriptions:

The STM32F765xx, STM32F767xx, STM32F768Ax and STM32F769xx devices are based on the high-performance Arm® Cortex®-M7 32-bit RISC core operating at up to 216 MHz frequency. The Cortex®-M7 core features a floating point unit (FPU) which supports Arm® double-precision and single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances the application security.

Feature
  • Core: Arm® 32-bit Cortex®-M7 CPU with
    DPFPU, ART Accelerator™ and L1-cache:
    16 Kbytes I/D cache, allowing 0-wait state
    execution from embedded Flash and external
    memories, up to 216 MHz, MPU,
    462 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1),
    and DSP instructions.
    • Memories
    – Up to 2 Mbytes of Flash memory organized
    into two banks allowing read-while-write
    – SRAM: 512 Kbytes (including 128 Kbytes
    of data TCM RAM for critical real-time data)
    + 16 Kbytes of instruction TCM RAM (for
    critical real-time routines) + 4 Kbytes of
    backup SRAM
    – Flexible external memory controller with up
    to 32-bit data bus: SRAM, PSRAM,
    SDRAM/LPSDR SDRAM, NOR/NAND
    memories
    • Dual mode Quad-SPI
    • Graphics
    – Chrom-ART Accelerator™ (DMA2D),
    graphical hardware accelerator enabling
    enhanced graphical user interface
    – Hardware JPEG codec
    – LCD-TFT controller supporting up to XGA
    resolution
    – MIPI® DSI host controller supporting up to
    720p 30 Hz resolution
    • Clock, reset and supply management
    – 1.7 V to 3.6 V application supply and I/Os
    – POR, PDR, PVD and BOR
    – Dedicated USB power
    – 4-to-26 MHz crystal oscillator
    – Internal 16 MHz factory-trimmed RC (1%
    accuracy)
    – 32 kHz oscillator for RTC with calibration
    – Internal 32 kHz RC with calibration
  • Low-power
    – Sleep, Stop and Standby modes
    – VBAT supply for RTC, 32×32 bit backup
    registers + 4 Kbytes backup SRAM
    • 3×12-bit, 2.4 MSPS ADC: up to 24 channels
    • Digital filters for sigma delta modulator
    (DFSDM), 8 channels / 4 filters
    • 2×12-bit D/A converters
    • General-purpose DMA: 16-stream DMA
    controller with FIFOs and burst support
    • Up to 18 timers: up to thirteen 16-bit (1x lowpower 16-bit timer available in Stop mode) and
    two 32-bit timers, each with up to 4
    IC/OC/PWM or pulse counter and quadrature
    (incremental) encoder input. All 15 timers
    running up to 216 MHz. 2x watchdogs, SysTick
    timer
    • Debug mode
    – SWD & JTAG interfaces
    – Cortex®-M7 Trace Macrocell™
    • Up to 168 I/O ports with interrupt capability
    – Up to 164 fast I/Os up to 108 MHz
    – Up to 166 5 V-tolerant I/Os

Applications

Automation & Process Control, Automotive, Embedded Design & Development, Multimedia, Motor Drive & Control, Robotics
