HD3SS3412RUAT UART Interface IC PCI Interface IC 4 Ch Diff Switch
HD3SS3412RUAT UART Interface IC PCI Interface IC 4 Ch Diff Switch
Specifications
Brand Name :
Ti
Model Number :
HD3SS3412RUAT
MOQ :
Contact us
Price :
Contact us
Payment Terms :
Paypal, Western Union, TT
Supply Ability :
50000 Pieces per Day
Delivery Time :
The goods will be shipped within 3 days once received fund
Packaging Details :
QFN
Description :
PCI Express® Switch IC 4 Channel 42-WQFN (3.5x9)
Packaging :
Reel
Brand :
Texas Instruments
Moisture Sensitive :
Yes
Product Type :
PCI Interface IC
Propagation Delay Time :
0.05 ns
Unit Weight :
0.001933 oz
Description

HD3SS3412RUAT UART Interface IC PCI Interface IC 4 Ch Diff Switch

1 Features

  • Compatible With Multiple Interface Standards Operating up to 12 Gbps Including PCI Express Gen III and USB 3.0

  • Wide –3dB Differential BW of over 8 GHz

  • Excellent Dynamic Characteristics (at 4 GHz)

    • – Crosstalk = –35 dB

    • – Off Isolation = –19 dB

    • – Insertion Loss = –1.5 dB

    • – Return Loss = –11 dB

  • Bidirectional "MUX/De-MUX" Type Differential Switch

  • VDD Operating Range 3.3 V ±10%

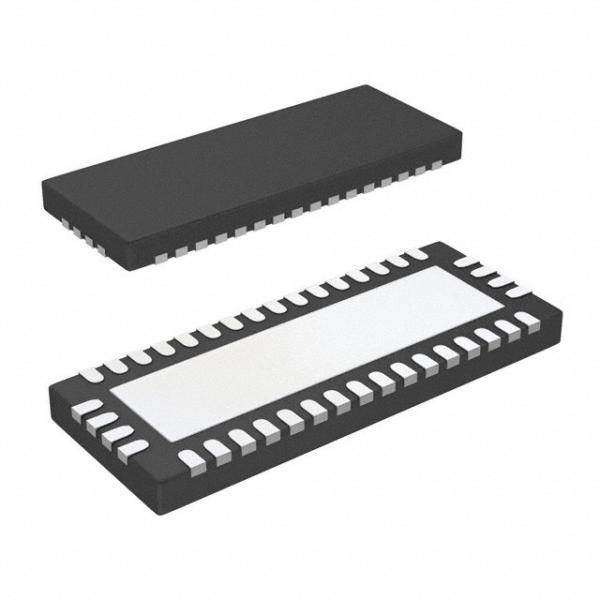

  • Small 3.5-mm × 9.0-mm, 42-Pin WQFN Package

  • Common Industry Standard Pinout

  • Supports XAUI and SGMII

2 Applications

  • Desktop and Notebook PCs

  • Server and Storage Area Networks

  • PCI Express Backplanes

  • Shared I/O Ports

3 Description

The HD3SS3412 device is a high-speed passive switch capable of switching four differential channels, including applications such as two full PCI Express x1 lanes from one source to one of two target locations in a PC/server application. With its bidirectional capability the HD3SS3412 also supports applications that allow connections between one target and two source devices, such as a shared peripheral between two platforms. The HD3SS3412 has a single control line (SEL pin) which can be used to control the signal path between Port A and either Port B or Port C.

The HD3SS3412 is offered in an industry standard 42-pin WQFN package available in a common footprint shared by several other vendors. The device is specified to operate from a single supply voltage of 3.3 V over the full temperature range of -40°C to 85oC.
