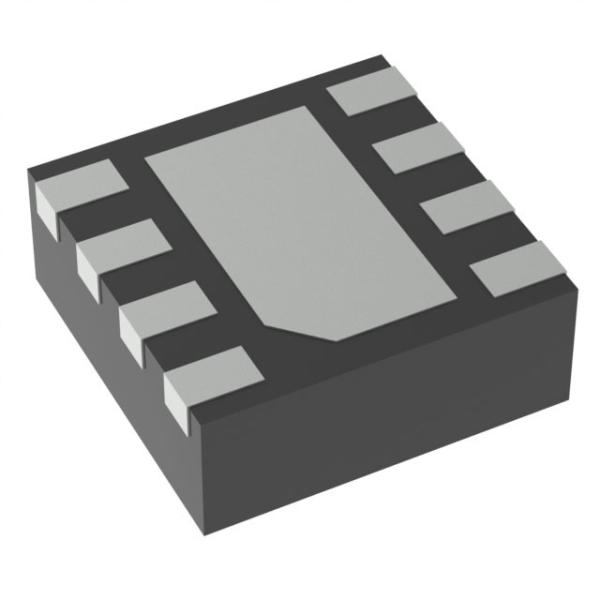

TPS22965DSGR Ethernet Switch IC Power Distribution Ultra-Lo rON,6A Load Switch
TPS22965DSGR Ethernet Switch IC Power Distribution Ultra-Lo rON,6A Load Switch
Specifications
Brand Name :
Ti
Model Number :
TPS22965DSGR
Description :
Power Switch/Driver 1:1 N-Channel 6A 8-WSON (2x2)
Off Time - Max :
80 us
On Time - Max :
2.2 ms
Package / Case :
WSON-8
Minimum Operating Temperature :
- 40 C
Maximum Operating Temperature :
+ 105 C
Current Limit :
6 A
Description

TPS22965DSGR Ethernet Switch IC Power Distribution Ultra-Lo rON,6A Load Switch

1 Features

  • Integrated Single Channel Load Switch

  • Input Voltage Range: 0.8 V to 5.7 V

  • Ultra-Low On Resistance (RON)

    – RON =16mΩatVIN=5V(VBIAS=5V) – RON =16mΩatVIN=3.6V(VBIAS=5V) – RON =16mΩatVIN=1.8V(VBIAS=5V)

2 Applications

  • UltrabookTM

  • Notebooks and Netbooks

  • Tablet PC

  • Consumer Electronics

  • Set-top Boxes and Residential Gateways

  • Telecom Systems

  • Solid State Drives (SSDs)

3 Description

The TPS22965x is a single channel load switch that provides configurable rise time to minimize inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.8 V to 5.7 V and can support a maximum continuous current of 6 A. The switch is controlled by an on and off input (ON), which is capable of interfacing directly with low-voltage control signals. In the TPS22965, a 225-Ω on-chip load resistor is added for quick output discharge when switch is turned off.

The TPS22965x is available in a small, space-saving 2-mm × 2-mm 8-pin SON package (DSG) with integrated thermal pad allowing for high power dissipation. The device is characterized for operation over the free-air temperature range of –40°C to +105°C.

Device Information

PART NUMBER PACKAGE BODY SIZE (NOM)
TPS22965 TPS22965N WSON (8) 2.00 mm × 2.00 mm
