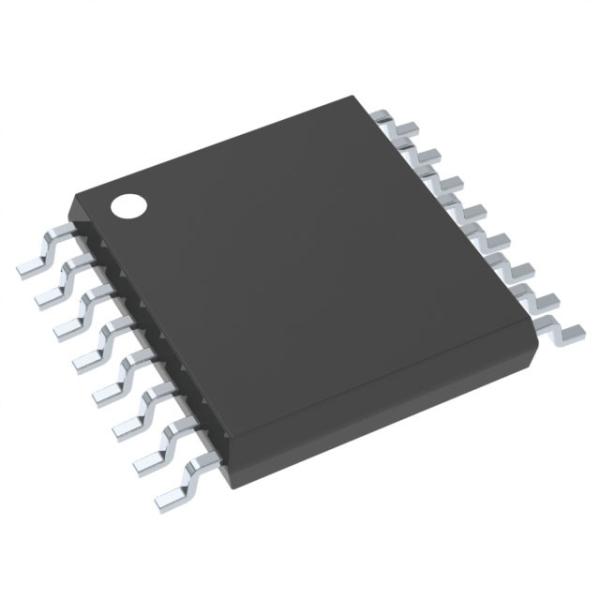

ADC108S022CIMTX/NOPB Data Converter IC ADC 8CH 50kSPS-200kSPS 10B ADC
ADC108S022CIMTX/NOPB Data Converter IC ADC 8CH 50kSPS-200kSPS 10B ADC
Specifications
Brand Name :
TI
Model Number :
ADC108S022CIMTX/NOPB
MOQ :
Contact us
Price :
Contact us
Payment Terms :
Paypal, Western Union, TT
Supply Ability :
50000 Pieces per Day
Delivery Time :
The goods will be shipped within 3 days once received fund
Packaging Details :
TSSOP
Description :
10 Bit Analog to Digital Converter 8 Input 1 SAR 16-TSSOP
Mounting Style :
SMD/SMT
Unit Weight :
0.002222 oz
Subcategory :
Data Converter ICs
SINAD - Signal to Noise and Distortion Ratio :
61.8 dB
Sample and Hold :
Yes
Product Type :
ADCs - Analog to Digital Converters
Description

ADC108S022CIMTX/NOPB Data Converter IC ADC 8CH 50kSPS-200kSPS 10B ADC

FEATURES

  • Eight Input Channels
  • Variable Power Management
  • Independent Analog and Digital Supplies
  • SPI/QSPI/MICROWIRE/DSP compatible
  • Packaged in 16-Lead TSSOP

APPLICATIONS

  • Automotive Navigation

  • Portable Systems

  • Medical Instruments

  • Mobile Communications

  • Instrumentation and Control Systems

    KEY SPECIFICATIONS

  • Conversion Rate 50 ksps to 200 ksps

  • DNL (VA = VD = 2.7V to 5.25V) ±0.3 LSB (max)

  • INL (VA = VD = 2.7V to 5.25V) ±0.3 LSB (max)

  • Power Consumption

  • – 3V Supply 1.1 mW (typ)

  • – 5V Supply 6.4 mW (typ)

DESCRIPTION

The ADC108S022 is a low-power, eight-channel CMOS 10-bit analog-to-digital converter specified for conversion throughput rates of 50 ksps to 200 ksps. The converter is based on a successive- approximation register architecture with an internal track-and-hold circuit. It can be configured to accept up to eight input signals at inputs IN0 through IN7.

The output serial data is straight binary and is compatible with several standards, such as SPI, QSPI, MICROWIRE, and many common DSP serial interfaces.

The ADC108S022 may be operated with independent analog and digital supplies. The analog supply (VA) can range from +2.7V to +5.25V, and the digital supply (VD) can range from +2.7V to VA. Normal power consumption using a +3V or +5V supply is 1.1 mW and 6.4 mW, respectively. The power-down feature reduces the power consumption to 0.09 μW using a +3V supply and 0.3 μW using a +5V supply.

The ADC108S022 is packaged in a 16-lead TSSOP package. Operation over the extended industrial temperature range of −40°C to +105°C is ensured.
