LTC3532EDD#TRPBF Power Path Management IC Switching Voltage Regulators Micropower Synchronous Buck-Boost DC/DC Converter
LTC3532EDD#TRPBF Power Path Management IC Switching Voltage Regulators Micropower Synchronous Buck-Boost DC/DC Converter
Specifications
Brand Name :
ADI
Model Number :
LTC3532EDD#TRPBF
MOQ :
Contact us
Price :
Contact us
Payment Terms :
Paypal, Western Union, TT
Supply Ability :
50000 Pieces per Day
Delivery Time :
The goods will be shipped within 3 days once received fund
Packaging Details :
QFN10
Description :
Buck-Boost Switching Regulator IC Positive Adjustable 2.4V 1 Output 500mA 10-WFDFN Exposed Pad
Subcategory :
PMIC - Power Management ICs
Product Type :
Switching Voltage Regulators
Operating Supply Current :
0.035 mA
Development Kit :
DC921A
Brand :
Analog Devices / Linear Technology
Quiescent Current :
600 uA
Description

LTC3532EDD#TRPBF Power Path Management IC Switching Voltage Regulators Micropower Synchronous Buck-Boost DC/DC Converter

FEATURES

  • Single Inductor

  • Regulated Output with Input Voltages Above, Below or Equal to the Output

  • Wide VIN Range: 2.4V to 5.5V

  • VOUT Range: 2.4V to 5.25V

  • Up to 500mA Peak Output Current

  • Synchronous Rectification: Up to 95% Efficiency

  • Manual or Programmable Automatic Burst Mode® Operation

  • Output Disconnect in Shutdown

  • Programmable Oscillator: 300kHz to 2MHz

  • Pin Compatible with LTC3440

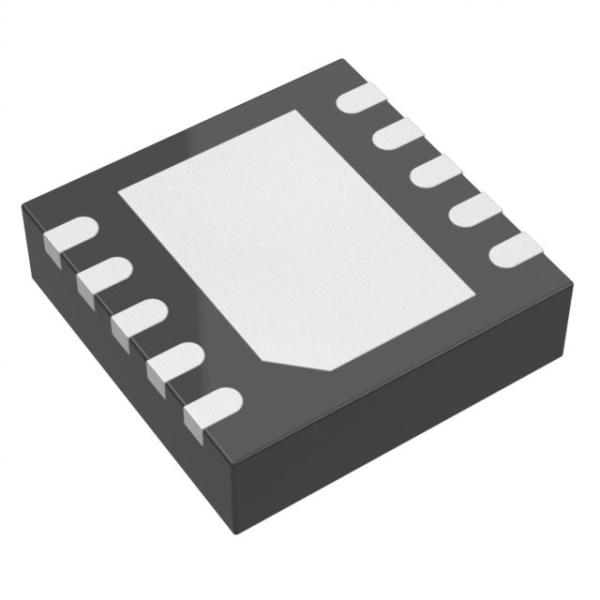

  • Small Thermally Enhanced 10-Lead (3mm × 3mm) DFN and 10-Lead MSOP Packages

APPLICATIO S

  • Miniature Hard Disk Drive Power Supply

  • MP3 Players

  • Handheld Instruments

  • Digital Cameras

  • Handheld Terminals

​

DESCRIPTIO

The LTC®3532 is a high efficiency, fixed frequency, buck- boost DC/DC converter that operates from input voltages above, below or equal to the output voltage. The topology incorporated in the IC provides a continuous transfer function through all operating modes, making the product ideal for single lithium-ion, multicell alkaline or NiMH ap- plications where the output voltage is within the battery voltage range.

The device includes two 0.36Ω N-channel MOSFET switches and two 0.42Ω P-channel switches. Switching frequencies up to 2MHz are programmed with an external resistor. Quiescent current is only 35μA in Burst Mode operation, maximizing battery life in portable applica- tions. Automatic Burst Mode operation allows the user to program the load current for Burst Mode operation or to control it manually.

Other features include a 1μA shutdown, soft-start control, thermal shutdown, and peak current limit. The LTC3532 is available in a low profile (0.75mm) 10-lead (3mm × 3mm) DFN and 10-lead MSOP packages.
