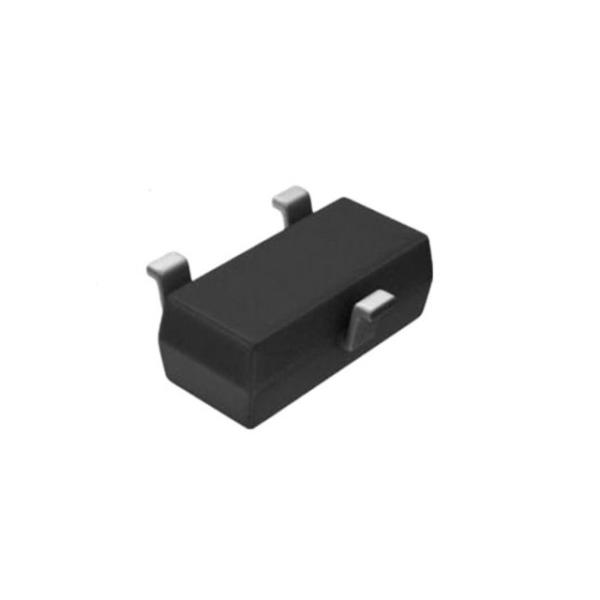

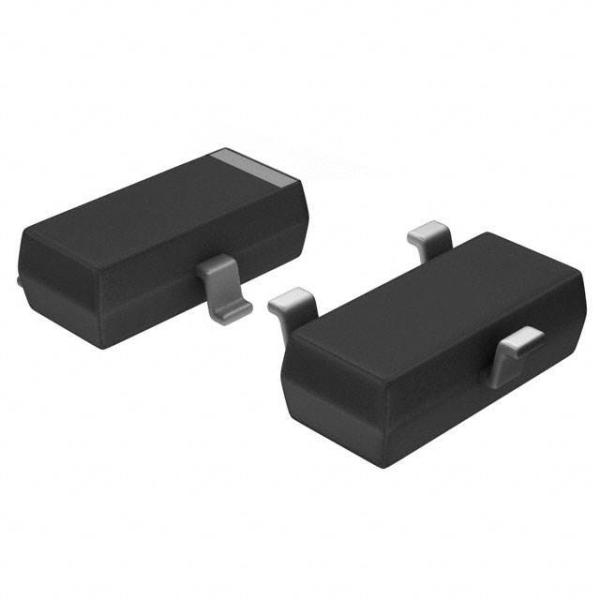

Synchronous Rectifier Diode High Speed Switching Diode BAV99
Synchronous Rectifier Diode High Speed Switching Diode BAV99
Synchronous Rectifier Diode High Speed Switching Diode BAV99
Synchronous Rectifier Diode High Speed Switching Diode BAV99
Specifications
Brand Name :
Standar
Model Number :
BAV99
Certification :
Original Factory Pack
Place of Origin :
China
MOQ :
3000pcs
Price :
negotiation
Payment Terms :
T/T Western Union,PayPal
Supply Ability :
30000PCS
Delivery Time :
1 Day
Packaging Details :
please contact me for details
Description :
Diode Array 1 Pair Series Connection 70 V 215mA Surface Mount TO-236-3, SC-59, SOT-23-3
Package :
3000pcs/Reel
Reverse Voltage :
75 V
P V eak Reverse Voltage :
100V
Rectified Current (Average), Half Wave Rectification with Resistive Load and f >=50 Hz :
150 MA
T t ypical Junction Capacitance( Notes1) :
4.0 pF
Maximum Reverse Recovery (Notes2) :
4.0 ns
M R aximum Thermal Resistance :
357 'C / W
Storage Temperature Range :
-55 TO +125
Description

Synchronous Rectifier Diode BAV99 High Speed Switching Diode​

BAL99, BAW56, BAV70, BAV99 SURFACE MOUNT SWITCHING DIODES VOLTAGE 75 Volts 350 mWatts

FEATURES

• Fast switching speed.

• Surface mount package Ideally Suited for Automatic insertion

• Electrically Identical to Standard JEDEC

• High Conductance

MECHANICAL DATA

Case: SOT-23, Plastic

Terminals: Solderable per MIL-STD-202, Method 208 Approx.

Weight: 0.008 gram

Marking : JF, JC, JA, JG

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25OC ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

NOTE:

1. CJ at VR=0, f=1MHZ

2.From IF=10mA to IR=1mA, VR=6Volts, RL=100Ω POWER PACKAGE SOT-23 PARAMETER SY
