New & Original Power Mosfet Transistor (−100V , −2A) 2SB1316
New & Original Power Mosfet Transistor (−100V , −2A) 2SB1316
New & Original Power Mosfet Transistor (−100V , −2A) 2SB1316
New & Original Power Mosfet Transistor (−100V , −2A) 2SB1316
New & Original Power Mosfet Transistor (−100V , −2A) 2SB1316
New & Original Power Mosfet Transistor (−100V , −2A) 2SB1316
Specifications
Model Number :
2SB1316
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
9000pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Description :
Bipolar (BJT) Transistor PNP - DarliCM GROUPon 100 V 2 A 50MHz 10 W Surface Mount CPT3
Collector-base voltage :
-100 V
Collector-emitter voltage :
-100 V
Emitter-base voltage :
- 8 V
Junction temperature :
150°C
Storage temperature :
-55 to +150°C
Collector current :
-2 A(DC)
Description

Power Transistor (−100V , −2A) 2SB1580 / 2SB1316

Features

1) DarliCM GROUPon connection for high DC current gain.

2) Built-in resistor between base and emitter.

3) Built-in damper diode.

4) Complements the 2SD2195 / 2SD1980.

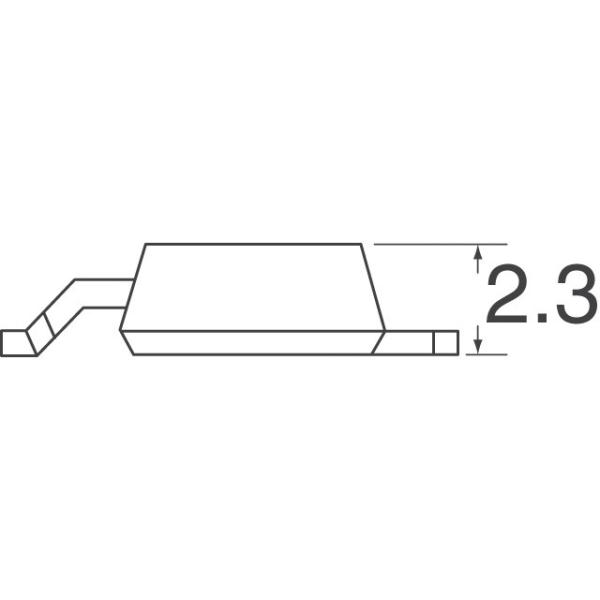

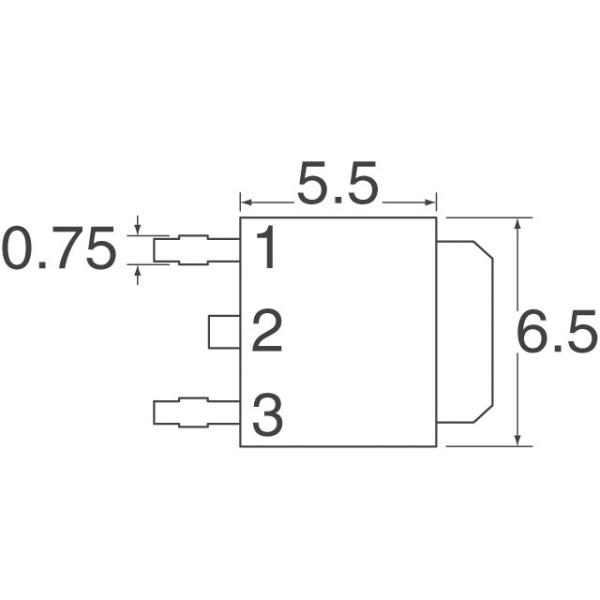

External dimensions (Unit : mm)

Absolute maximum ratings (Ta = 25°C)

Parameter Symbol Limits Unit
Collector-base voltage VCBO -100 V
Collector-emitter voltage VCEO -100 V
Emitter-base voltage VEBO -8 V
Collector current IC -2 A(DC)
-3 A(Pulse) ∗1
Collector power dissipation 2SB1580 PC 2 W ∗2
2SB1316 1
10 W(Tc=25°C)
Junction temperature Tj 150 °C
Storage temperature Tstg -55 to +150 °C

∗1 Single pulse Pw=100ms

∗2 When mounted on a 40 x 40 x 0.7 mm ceramic board.

Packaging specifications and hFE

Type 2SB1580 2SB1316
Package MPT3 CPT3
hFE 1k to 10k 1k to 10k
Marking BN∗ --
Code T100 TL
Basic ordering unit (pieces) 1000 2500

∗ Denotes hFE

Electrical characteristics curve
