HUF75645P3 power mosfet module N-Channel , UltraFET Power MOSFETs
HUF75645P3 power mosfet module N-Channel , UltraFET Power MOSFETs
Specifications
Model Number :
HUF75645P3
Certification :
new & original
Place of Origin :
original factory
MOQ :
20pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
9000pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Description :

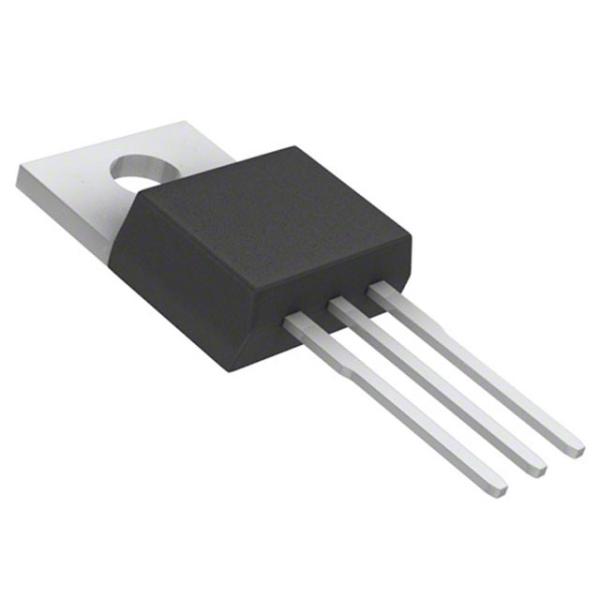

N-Channel 100 V 75A (Tc) 310W (Tc) Through Hole TO-220-3
Drain to Source Voltage :
100 V
Drain to Gate Voltage :
100 V
Gate to Source Voltage :
±20 V
Power Dissipation :
310 W
Operating and Storage Temperature :
-55 to 175 ℃
Package :
TO-220AB
Description

HUF75645P3, HUF75645S3S

75A, 100V, 0.014 Ohm, N-Channel, UltraFET Power MOSFETs

Features

• Ultra Low On-Resistance

- rDS(ON) = 0.014Ω, VGS = 10V

• Simulation Models

- Temperature Compensated PSPICE® and SABER© Electrical Models

- Spice and Saber Thermal Impedance Models

• Peak Current vs Pulse Width Curve

• UIS Rating Curve

Absolute Maximum Ratings TC = 25℃, Unless Otherwise Specified

PARAMETER SYMBOL

HUF75645P3,

HUF75645S3S

 UNITS

Drain to Source Voltage (Note 1)

VDSS

100

V

Drain to Gate Voltage (RGS = 20kΩ) (Note 1)

VDGR

100

V

Gate to Source Voltage

VGS

±20

V

Drain Current

Continuous (TC= 25℃, VGS = 10V) (Figure 2)

Continuous (TC= 100℃, VGS = 10V) (Figure 2)

ID

ID

75

65

A

A

Power Dissipation

Derate Above 25℃

PD

310

2.07

W

W/℃

Operating and Storage Temperature

TJ, TSTG

-55 to 175

℃

Maximum Temperature for Soldering

Leads at 0.063in (1.6mm) from Case for 10s

Package Body for 10s, See Techbrief TB334

TL

Tpkg

300

260

℃

℃

NOTES: 1. TJ = 25℃ to 150℃.
