AnKuai AKS580 BLDC 220V Stainless Steel Barrier Gate
AnKuai AKS580 BLDC 220V Stainless Steel Barrier Gate
AnKuai AKS580 BLDC 220V Stainless Steel Barrier Gate
AnKuai AKS580 BLDC 220V Stainless Steel Barrier Gate
AnKuai AKS580 BLDC 220V Stainless Steel Barrier Gate
AnKuai AKS580 BLDC 220V Stainless Steel Barrier Gate
AnKuai AKS580 BLDC 220V Stainless Steel Barrier Gate
AnKuai AKS580 BLDC 220V Stainless Steel Barrier Gate
AnKuai AKS580 BLDC 220V Stainless Steel Barrier Gate
AnKuai AKS580 BLDC 220V Stainless Steel Barrier Gate
AnKuai AKS580 BLDC 220V Stainless Steel Barrier Gate
AnKuai AKS580 BLDC 220V Stainless Steel Barrier Gate
Specifications
Brand Name :
AnKuai
Model Number :
AKS580
Certification :
ISO,CE
Place of Origin :
Guangdong, China
MOQ :
1
Price :
490
Payment Terms :
T/T
Supply Ability :
30000 units
Delivery Time :
5 work days
Packaging Details :
carton
Material :
Stainless Steel
Reflective Grade :
Engineer Grade
Product name :
Barrier Gate
Product model :
AKS580
Size :
344*283*1020mm
Opening and closing times :
1.5~3s/3~6s (depending on boom length)
on boom length) Lever Length :
3~6m (Maximum, Adjustable)
Level to Ground :
890MM
Voltage :
DC220V
Description

Ankuai AKS580 BLDC 220V Barrier Gate Popular Style Intelligent LED Arm Boom Anti-Crash Parking Lot Traffic Barrier

Specifications Data Sheet
Speed Time
1.5s
3s
5s
1.8s
3.5s
5.5s
6s
Boom Type

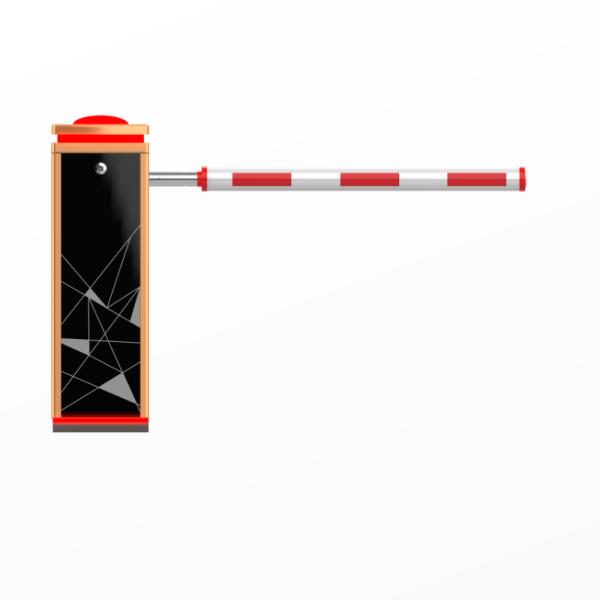

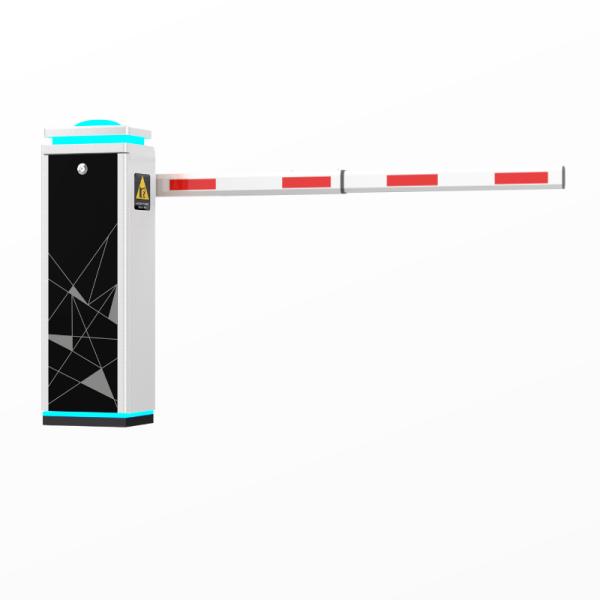

Straight

Boom

Straight

Boom

Straight

Boom

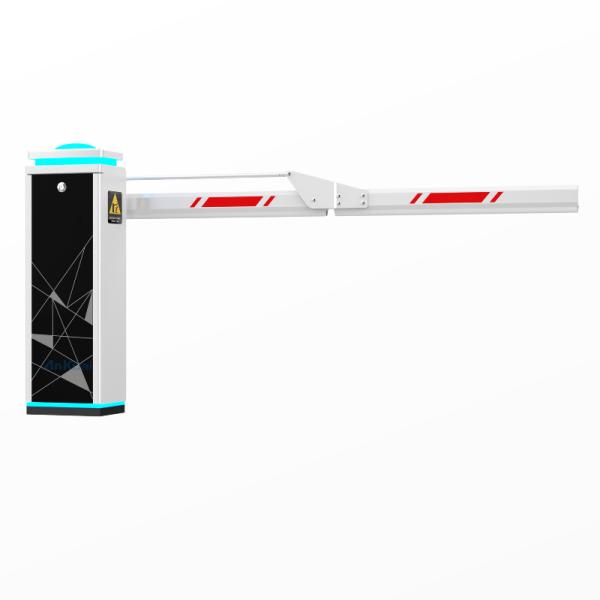

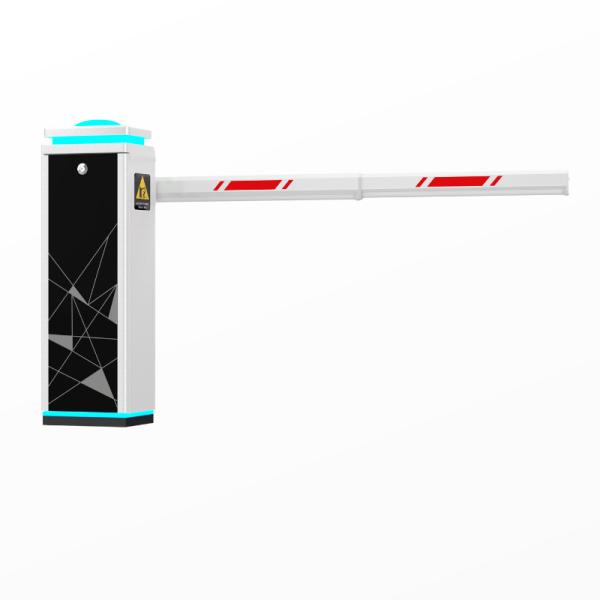

Folding Boom
Folding Boom

Folding

Boom

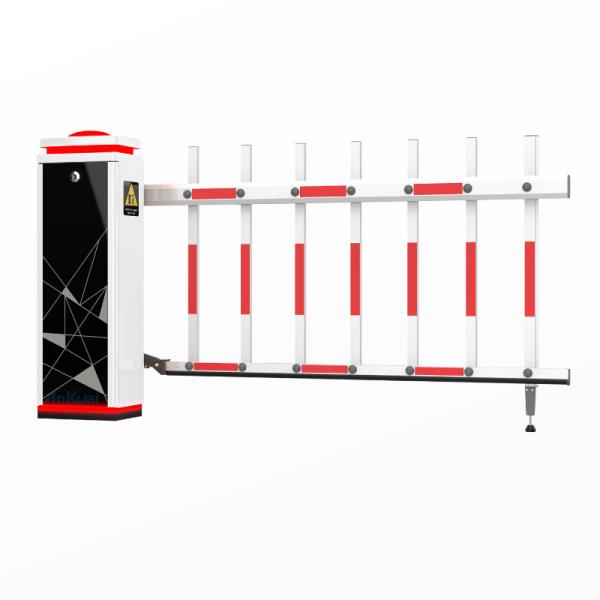

Fence

Boom
Boom Length
3m
4.5m
6m
3m
4.5m
6m
5m
Place of origin
China
Product model
AnKuai Barrier Gate AKD117
Boom Type
Straight Boom, Folding Boom, Fence Boom
Boom Length
Maximum 6 meters
Speed
1.8~3s/3~6s
Voltage
AC220V±15%
Frequency
50HZ
Power consumption
100W
Working temperature
-30°C to 80°C
Housing dimension
344(L) * 283(W) * 1020(H)
Weight
45kgs
Drive
DC24V
Max RC Distance
≤30m

Mechanical Features
1. Robust, waterproof chassis designed for outdoor use.​
2. Integrated movement with full mold production ensures stability and precision.​
3. Precise four-bar linkage enables smooth operation, reducing vibration and extending lifespan.​
4. 100W gear reducer offers quiet, compact transmission with shock-free stall protection.​
5. Manual lock mechanism allows effortless manual operation during power outages.

Electrical Features
1. Highly integrated system with easy device compatibility and anti-overrun protection for 24/7 operation.​
2. Angle sensors provide accurate position detection and stable movement.​
3. Status indicators facilitate use and maintenance.​
4. Supports 25 sets of remote control codes with an intelligent learning function.​
5. Imported core transformer ensures reliable performance in harsh environments.​
6. Combines optical, electrical, and mechanical controls for user-friendly, safe operation.

Security Features

Obstacle rebound

During the descent of the barrier, if it encounters an external force blocking, it will automatically lift to reduce the damage caused by mistakes.

Ground Loop Anti-Crush Protection

When the gate arm is descending, it will automatically retract if it receives a ground loop signal. During the triggered period,the gate will not lower again until the ground loop signal is restored, ensuring safe operation.

Anti-crushing rubber strips

The barrier is equipped with rubber strips, which can reduce the losses caused by accidents.
AnKuai AKS580 BLDC 220V Stainless Steel Barrier GateAnKuai AKS580 BLDC 220V Stainless Steel Barrier GateAnKuai AKS580 BLDC 220V Stainless Steel Barrier GateAnKuai AKS580 BLDC 220V Stainless Steel Barrier GateAnKuai AKS580 BLDC 220V Stainless Steel Barrier GateAnKuai AKS580 BLDC 220V Stainless Steel Barrier Gate

LPR System and Parking Software
1. Role, permission, and password management Settings.
2. Vehicle registration, extension, recharge, and parking area setting.
3. Support batch import of license plate numbers and card numbers.
4. Settings for the white list and black list.
5. Setting of charging standards and charging methods.
6. Vehicle flow management and reporting.
7. Query and summary report of parking fees.
8. Access monitoring and toll collection system management.
Our license plate recognition cameras can identify license plates from over 180+ countries and regions worldwide. We provide supporting parking software systems developed in-house, and our products have obtained both ISO9001:2015 quality management system certification and CE certification. With a R&D team of over 50 members, a professional software R&D team, and after-sales service specialists, we offer software integration and customized services, providing more professional suggestions and technical support for your projects.
