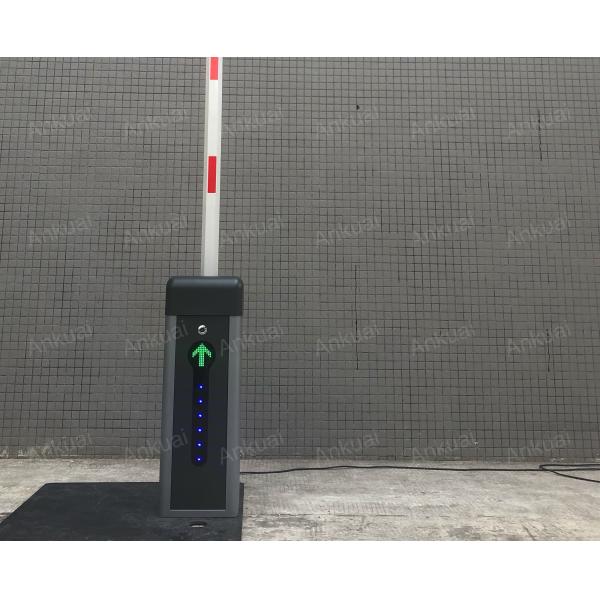

Traffic Parking Gate Barrier System Parking Stable Automatic Barrier Gates
Traffic Parking Gate Barrier System Parking Stable Automatic Barrier Gates
Traffic Parking Gate Barrier System Parking Stable Automatic Barrier Gates
Traffic Parking Gate Barrier System Parking Stable Automatic Barrier Gates
Traffic Parking Gate Barrier System Parking Stable Automatic Barrier Gates
Traffic Parking Gate Barrier System Parking Stable Automatic Barrier Gates
Specifications
Brand Name :
Ankuai
Model Number :
AKD102C
Certification :
ISO9001, CE Certificate
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30000 sets per Month
Delivery Time :
5-7 days
Packaging Details :
Regular package way with carton
Cabinet Dimension :
344*283*1019mm
Motor :
DC24V Brushless motor
Motor Power :
100W
Open/close Speed :
1.8s/3s/6s
Boom Length :
Max 6m
Working Temperature :
-30°C~80°C
Remote Control :
≤ 30m
Direction :
Bi-Direction
Boom Type :
Telescopic, Boom, Floding, etc.
Warranty :
1-year gurantee except for artificial damage
Delivery time :
3-5 days
Description
Traffic Parking Gate Barrier System Parking Stable Automatic Barrier Gates
Product Specifications
Attribute Value
Cabinet Dimension 344*283*1019mm
Motor DC24V Brushless motor
Motor Power 100W
Speed 1.8s/3s/6s
Boom Length Max 6m
Cabinet Color Customize
Working Temperature -30°C~80°C
Remote Control Maximum 30m
Direction Bi-Direction
Boom Type Telescopic, Boom, Floding, etc.
Warranty 1-year guarantee except for artificial damage
Delivery time 3-5 days
Product Features
Mechanical Features
  • A stylish, thoughtfully designed cabinet that’s robust, water-resistant, and ideal for outdoor settings.
  • An integrated machine core, with all parts molded, ensures precision and stable performance.
  • A 100W turbine worm drive deceleration induction motor comes with a fan, allowing for continuous operation.
  • A high-precision linkage mechanism reduces boom vibration and eases motor load, boosting service life.
  • Manual boom lock/unlock features are accessible when the power is cut off.
Electrical Features
  • Boasts high integration and robust capabilities.
  • Comes with 6-second auto-shutdown and thermal protection features.
  • An intelligent limit sensor enables automatic position detection.
  • Includes anti-smash functionality and adjustable opening/closing speeds.
  • LED indicator for easy use and maintenance
  • Imported high-power MOSFET for contactless motor control
  • Photoelectric isolated protection circuit for signal stability
  • Supports standard remote control with 10 additional groups
  • Imported magnetic core transformer for damping situations
Safety Features
  • Auto bounce back function, make sure the car and the facilities' safety
  • Pressure sensor-Anti-crash functions: if the boom meets something during closing process, the boom will be opened automatically.
  • Loop detector-Anti-crash functions: if car stands under the boom, the barrier gates cannot be closed. And the barrier gates will be closed automatically when the car passes the boom.
  • Plastic strips: we can install a plastic strip into our boom, it can decrease accident damage
Technical Specifications
Voltage DC 24V
Drive DC brushless motor
Power Consumption 100W
Working Temperature -30°C ~80°C
Humidity ≤90%
Remote Control Distance ≤30m
IP Rating IP54
Key Functions
  • Multiple Arm Types: Boom-arm, Straight-arm, Folding-arm, Fence-arm
  • Anti-crash Protection: Bounceback, Loop Detector, Open Priority, Rubber Strips
  • Intelligent Limited Sensor: Automatic position detection without manual adjustment
  • Posmon Memory Function: Motor remembers limit positions
  • Environmental Resistance: Outdoor installation, IP54 waterproof, -30°C~80°C operation
  • Durable Motor: 5 million times
Applications
  • Office buildings
  • Banks
  • Wholesale centers
  • Pavilions
  • Residential areas
  • Toll stations
  • Company entrances
  • Factories
Traffic Parking Gate Barrier System Parking Stable Automatic Barrier Gates Traffic Parking Gate Barrier System Parking Stable Automatic Barrier Gates
FAQ
Who are we?

We are based in Guangdong, China, start from 2010, sell to North America(10.00%), South America(15.00%), Eastern Europe(10.00%), Southeast Asia(15.00%), Africa(10.00%), Oceania(5.00%), Mid East(10.00%), Eastern Asia(10.00%), Western Europe(5.00%), Central America(5.00%), Northern Europe(5.00%). There are a total of about 450 people in our office.

How can we guarantee the quality?

Always a pre-production sample before mass production.
Always final Inspection before shipment.

What can you buy from us?

Barrier Gate, Tripod Turnstile, Swing Gate Turnstile, Flap Barrier Turnstile, Fast Speed Turnstile

What is the lead time for standard items?

1-50 sets: 5 working days; 50-100 sets: 7 working days; 100-500 sets: 15 working days. Custom items may require 3-10 additional days.

What services can we provide?

Accepted Delivery Terms: FOB, CIF, EXW, DDP；
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, L/C, PayPal;
Language Spoken: English, Chinese
