Specifications
Model Number :
AKT322
Brand Name :
AnKuai
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$120-150
Access control :
ESD System, Face Recognition, IC Card, Fingerprint, QR Code, RFID Card
Barrier speed :
0.2 s, 0.4 s, 1 s, 0.6 s, 0.5 s, 0.8 s, 1.2 s, 2 s, 1.5 s
Communication interface :
Rs485, RS-232
Operation direction :
1-Way
Barrier motor :
Brushless Motor
Material :
304 grade stainless steel
Turnstile functions :
Counting Function, Collision Avoidance, Anti-Pinch, Anti-Tailgating
Power supply :
220VAC 50HZ / 110VAC 60HZ
Size :
1050(H)*168(D) mm
Arm length :
500-900mm(optional)
Pass rate :
30-40 persons per minute
MCBF :
around 4 million times
Input voltage :
12v dry contact
Weight :
40kg
Power consumption :
32w
Description
Product Description

304 stainless steel security access controlentrance gate barrier

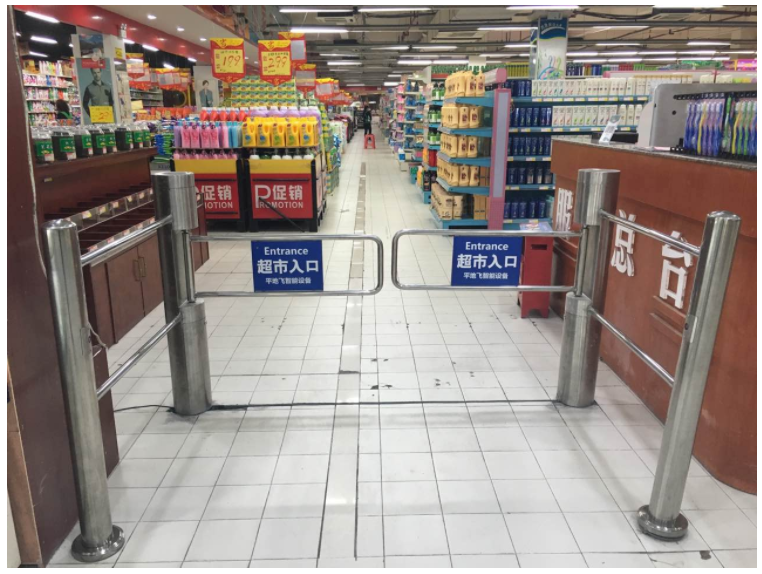

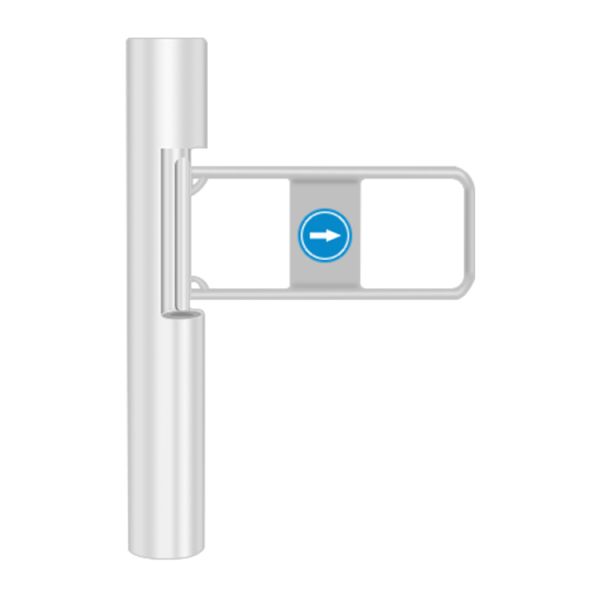

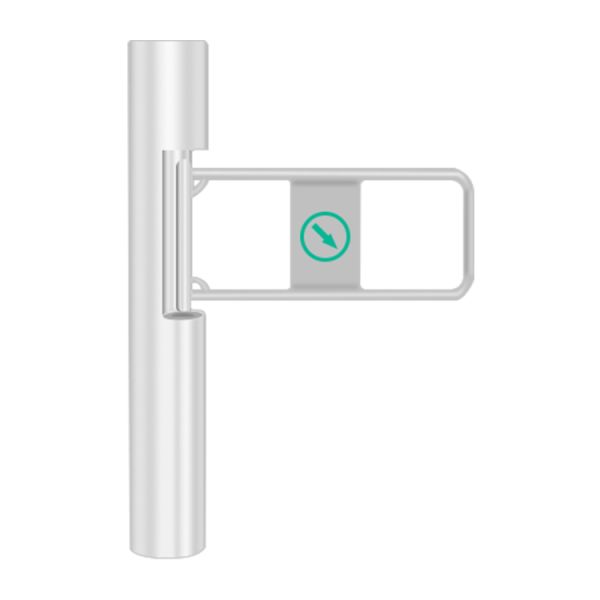

1. It's widely installed in the front of entrance or path to manage the pedestrian traffic. 2. Working way: manual lightly push the swing arm, then peopel can easily go through the Turnstile Gate, after that, the arm will auto return to close state. 3. Pass direction: one way or two ways to set for you. 4. The MOQ:1 unit. 5. the length of swing arm: in 900mm (can be custom-made under your request).
304 Stainless Steel Flap Barrier Turnstile with RS485 Communication IP54 Protection and Customizable Arm Length

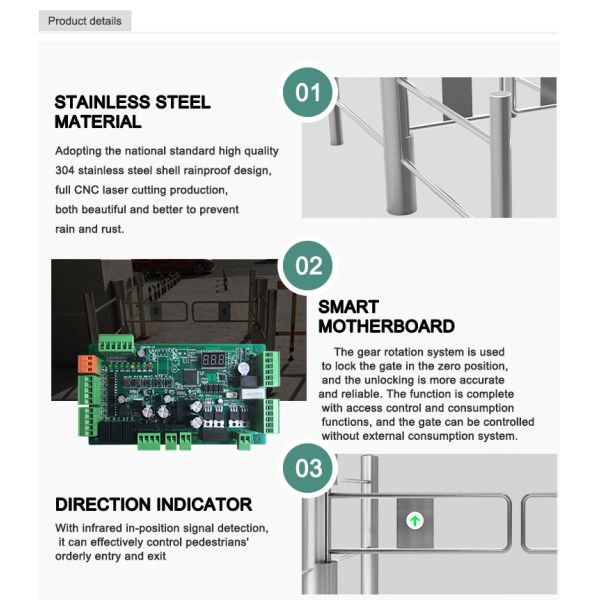

Feature highlights

This manual swing turnstile gate is made of 304 stainless steel, ensuring durability and corrosion resistance. It features a customizable arm length of 600-900mm and supports one-way or two-way passage settings. With an operating temperature range of -25℃ to +60℃ and a transit speed of 30-45 persons per minute, it suits various environments like stations, offices, and hotels. Certified with CE and RoHS, it complies with EU safety standards, providing market access and regulatory advantages.
Specification
name
supermarket swing turnstile
Model Number
AKT322
type
swing barrier gate
material
304 grade stainless steel

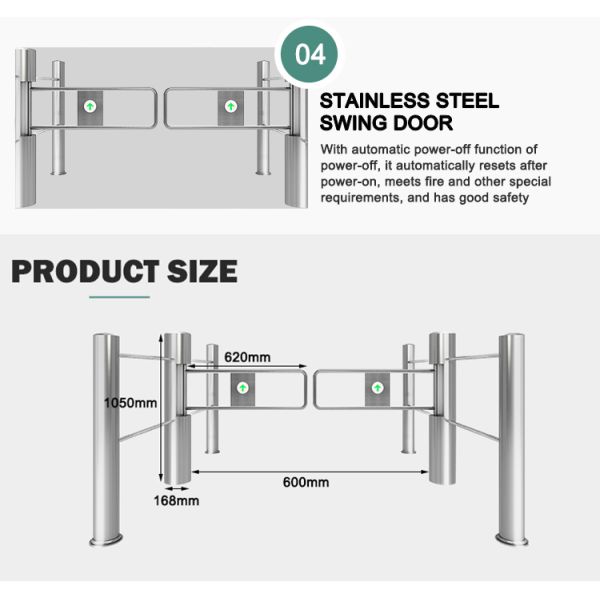

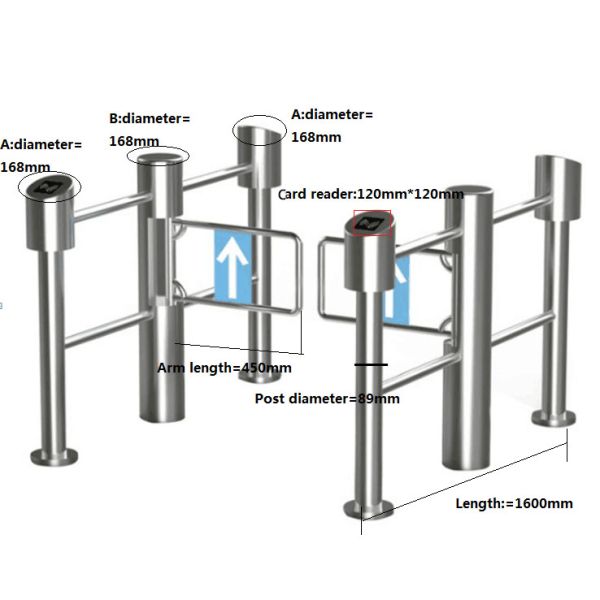

size
1050(H)*168(D)
weight
40kg
arms length
500-900mm(optional)
working voltage
AC220V(10%more or less ),50(10%more or less )HZ
Pass rate
30-40 persons per minute
protection grade
IP54
communication interface
one standard port-RS485
Life time
around 4 million times
Environment temperature
-25ºC±70ºC
Power consumption
32w
Input
12v dry contact
humidity
≤90%
