Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control
Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control
Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control
Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control
Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control
Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control
Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control
Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control
Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control
Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control
Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control
Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control
Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control
Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control
Specifications
Brand Name :
AnKuai
Model Number :
AKT326
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 Peices/Month
Product Name :
Swing Turnstile Barrier
Size :
1200*150*980 mm
Power Supply :
AC 110~220V, 50/60Hz
Passage Width :
≤950mm
Arm Length :
≤600mm
Open/Close Time :
1s
Infrared :
4 Pairs
Housing Material :
SUS304 Stainless Steel
Warranty :
12 Month
Price :
Negotiate
Description

High-Stability, Multi-Function Swing Turnstile for Smart Access

Compatible with ID/IC Card, Barcode, Fingerprint & Face Recognition | -25~75℃ Wide Temperature Adaptation

Core Features

Problem-Self-Checking

Automatically detects equipment faults and sends prompts, simplifying maintenance and reducing downtime.

Bi-Directional Arm Turning

Supports two-way passage, with adjustable direction settings to meet different site management needs.

Power-Off Safety Design

Arm opens automatically when power is cut off (meets fire safety standards) and locks automatically when power is restored.

Anti-Rush Protection

Arm locks tightly when no open signal is received, preventing unauthorized forced entry.

Adjustable Delay Close

After valid card reading and passenger passage, arm close delay can be set from 1-60s via the control panel.

Auto-Reposition

If the passenger does not pass within the set time after card reading, the system automatically cancels the passage permission.

Technical Specifications

Parameters AKT326 Swing Barrier Turnstile
Power Supply AC110~220V (Working Power: DC24V)
Power Consumption 24V BLDC 40W
Working Temperature -25℃ ~ 75℃
Relative Humidity <95%, No Condensation
Passage Width ≤950 mm
Passing Speed 30 persons/min (Normal Open); 20 persons/min (Normal Close)
Arm Open/Close Time 1s
Input Interface +12V Electrical Signal or Impulse Signal (Width >100ms, Drive Current >10mA)
Communication Interface RS485, TTL232
Dimension (L×W×H) 1200×150×980 mm
Controlling Way Relay Signal, RS485

Where to Use AKT326?

Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control

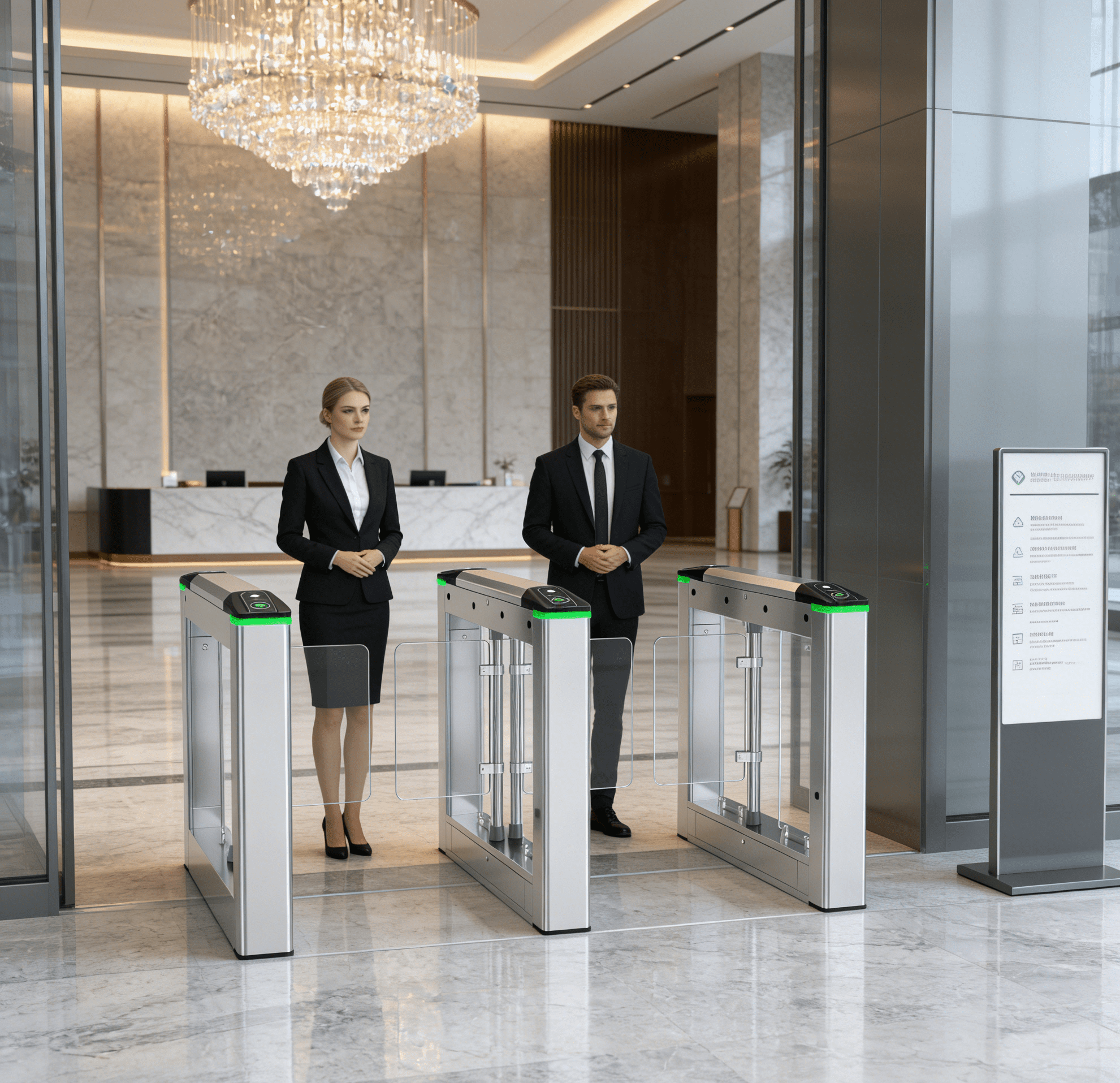

Office Buildings

Manage employee access, ensure office security

Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control

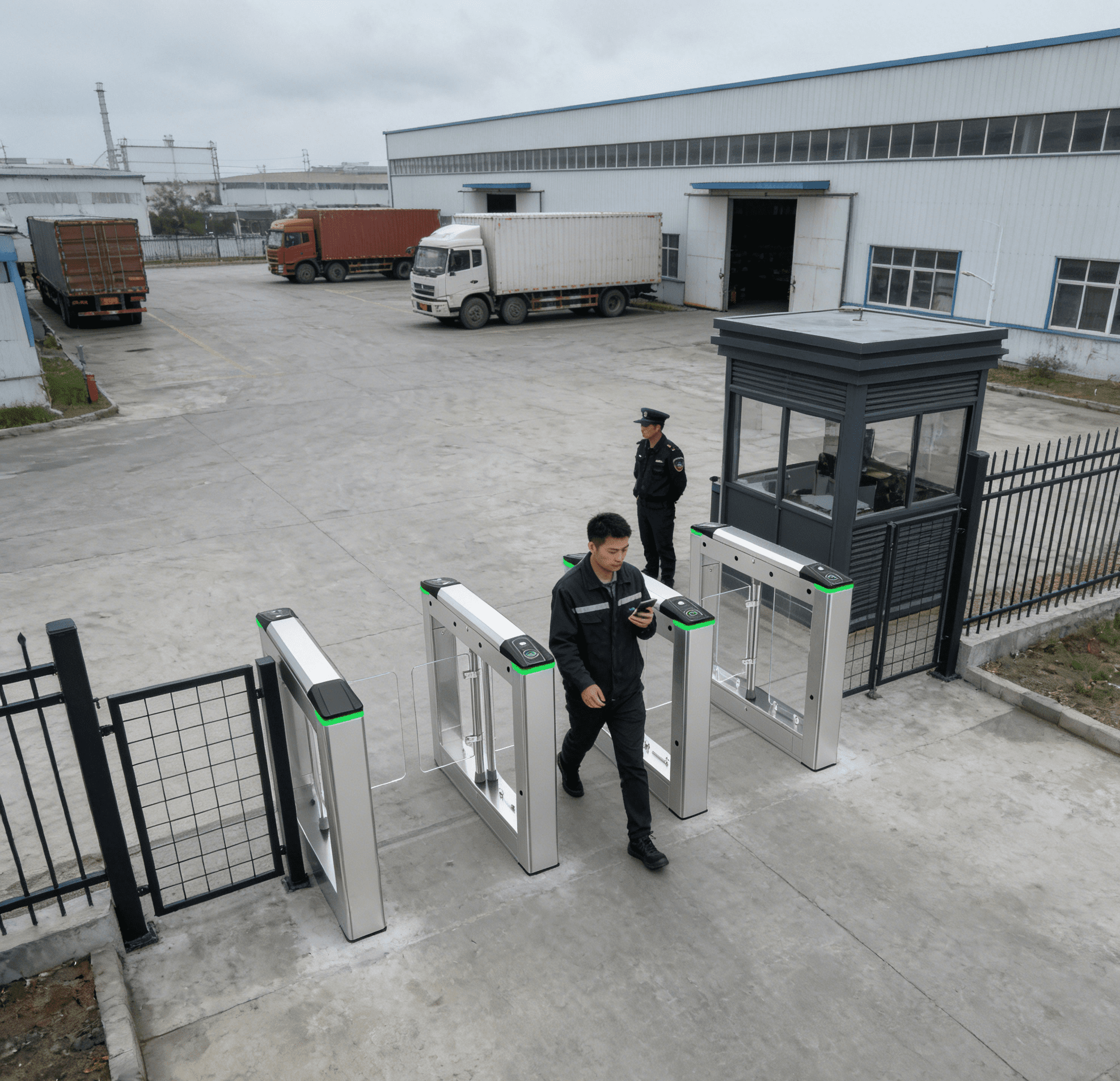

Industrial Parks

Control staff and visitor entry, prevent unauthorized access

Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control

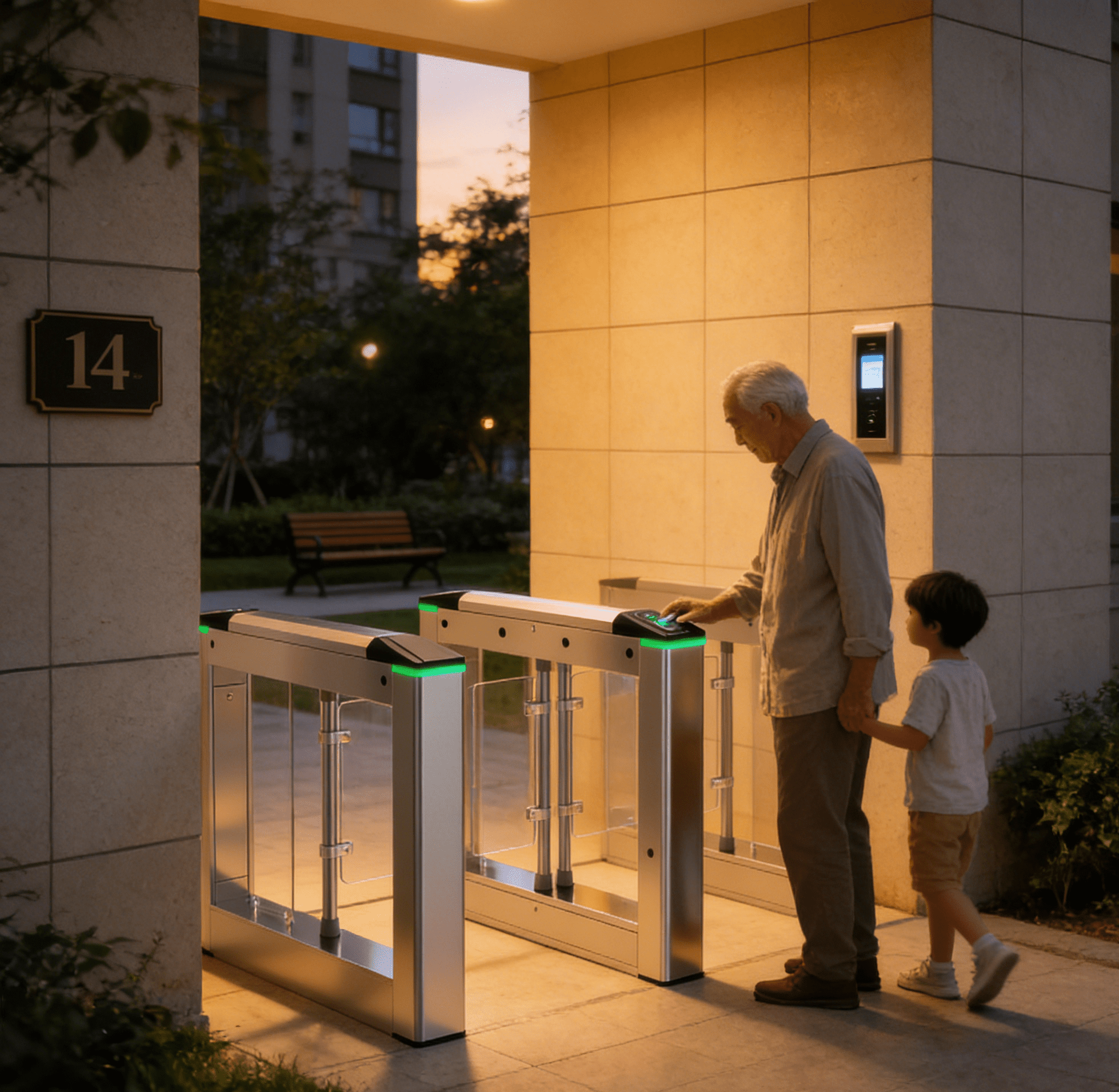

Residential Communities

Guarantee resident safety, manage visitor flow

Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control

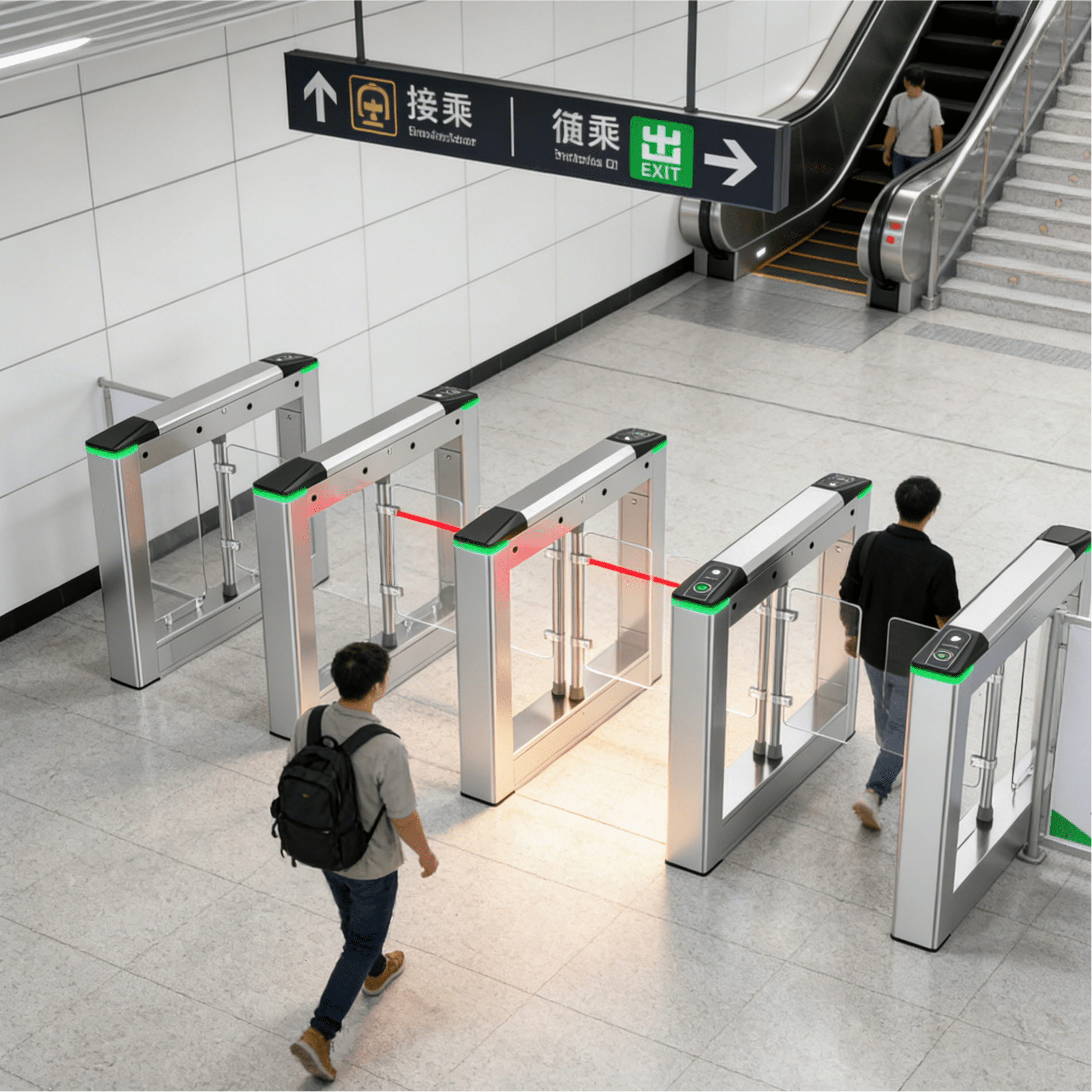

Transport Hubs

Efficient passenger passage, integrate with ticket systems

Our Company Advantages

Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control

Advanced Production Workshop

Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control

Company Introduction

Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control

Active Participation in Exhibition


Product Certification

Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control

The AKT326 Swing Barrier Turnstile has passed ISO and CE certifications, complying with international quality and safety standards. You can use it with confidence in global markets.


After-Sales Service

  • ✓ Quality Guarantee: 12-month warranty for the whole machine (excluding consumables)
  • ✓ Technical Support: 24/7 online support via email or phone
  • ✓ Installation Guidance: Provide detailed installation manual and video tutorials
  • ✓ Spare Parts Supply: Stable supply of original spare parts for long-term maintenance


Frequently Asked Questions

Can AKT326 integrate with face recognition devices?
Yes. The AKT326 has a standard electrical interface, which can be easily connected to face recognition, fingerprint, and other biometric devices to realize multi-mode access control.
Is the AKT326 suitable for outdoor use?
Yes. With 304/316 stainless steel material and wide temperature adaptation (-25~75℃), it can be used outdoors. For heavy rain areas, we recommend matching it with a rain shelter to extend service life.
How to adjust the arm close delay time?
You can set the delay time (1-60s) directly through the control panel of the AKT326. The user manual provides detailed operation steps, or our technical team can guide you remotely.
What is the delivery time for AKT326?
For standard models (304 stainless steel, straight arm), the delivery time is 5-7 working days. For customized models (special material, color, arm shape), it takes 10-15 working days.
