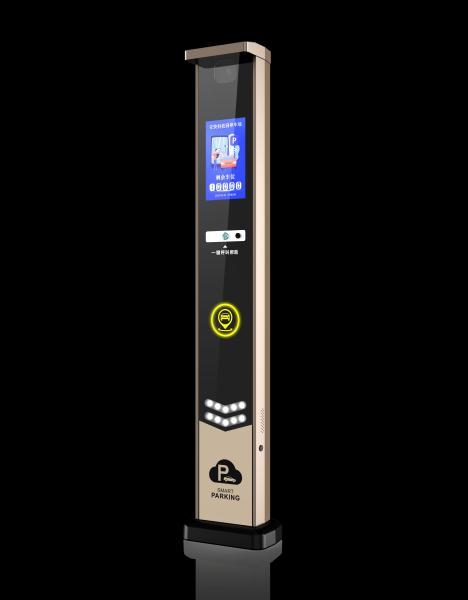

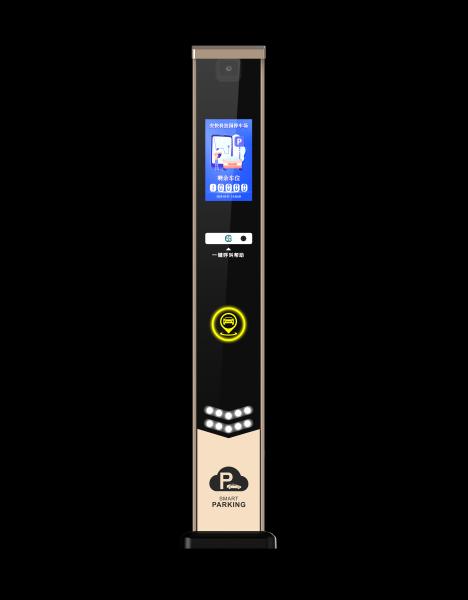

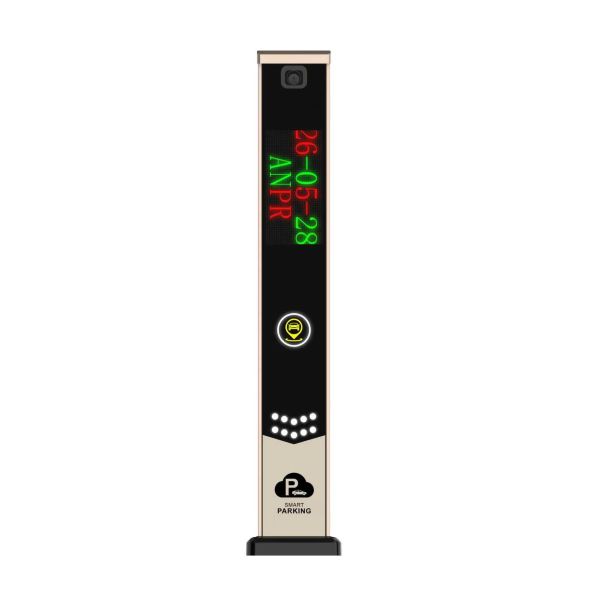

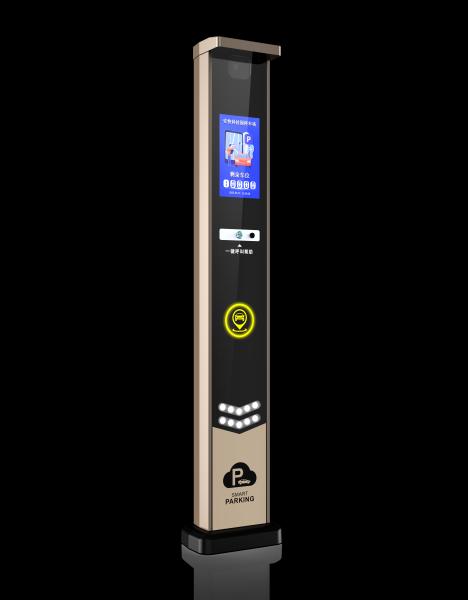

AnKuai P823 Outdoor LPR Terminal with 5-megapixel HD LPR Camera IP65 Rated and 10.1-inch Outdoor LCD for Parking Lane Installation
AnKuai P823 Outdoor LPR Terminal with 5-megapixel HD LPR Camera IP65 Rated and 10.1-inch Outdoor LCD for Parking Lane Installation
AnKuai P823 Outdoor LPR Terminal with 5-megapixel HD LPR Camera IP65 Rated and 10.1-inch Outdoor LCD for Parking Lane Installation
AnKuai P823 Outdoor LPR Terminal with 5-megapixel HD LPR Camera IP65 Rated and 10.1-inch Outdoor LCD for Parking Lane Installation
AnKuai P823 Outdoor LPR Terminal with 5-megapixel HD LPR Camera IP65 Rated and 10.1-inch Outdoor LCD for Parking Lane Installation
AnKuai P823 Outdoor LPR Terminal with 5-megapixel HD LPR Camera IP65 Rated and 10.1-inch Outdoor LCD for Parking Lane Installation
AnKuai P823 Outdoor LPR Terminal with 5-megapixel HD LPR Camera IP65 Rated and 10.1-inch Outdoor LCD for Parking Lane Installation
AnKuai P823 Outdoor LPR Terminal with 5-megapixel HD LPR Camera IP65 Rated and 10.1-inch Outdoor LCD for Parking Lane Installation
AnKuai P823 Outdoor LPR Terminal with 5-megapixel HD LPR Camera IP65 Rated and 10.1-inch Outdoor LCD for Parking Lane Installation
AnKuai P823 Outdoor LPR Terminal with 5-megapixel HD LPR Camera IP65 Rated and 10.1-inch Outdoor LCD for Parking Lane Installation
AnKuai P823 Outdoor LPR Terminal with 5-megapixel HD LPR Camera IP65 Rated and 10.1-inch Outdoor LCD for Parking Lane Installation
AnKuai P823 Outdoor LPR Terminal with 5-megapixel HD LPR Camera IP65 Rated and 10.1-inch Outdoor LCD for Parking Lane Installation
Specifications
Price :
USD 545-650 /Peice
Input Voltage :
AC 200–240 V, 50 Hz
Ip Rating :
IP65
Model Number :
AKP832-3
Cabinet Material :
Iron plate metal 2.0
Certification :
ISO,CE
Power Interface :
DC12V
MOQ :
1
Delivery Time :
10 WORKING DAYS
Recognition Distance :
3-10m
Data Storage Options :
Cloud, NVR, Memory Card, SD Card
Payment Terms :
T/T
Normal Work Life :
Five years
Network :
RJ45
Operating Voltage :
AC220V±10%/50Hz
Recognitionspeed :
Less than 0.5 seconds per plate
Supply Ability :
10000
Installation Angle :
Fine angle adjustment
Barrier Motor :
Brushed Motor
Place of Origin :
CHINA
Opening Mode :
Key, Bluetooth, Remote Controller
Brand Name :
ANKUAI
Capture Rate :
≥99%
Packaging Details :
CARTONS
Userinterface :
Web-based management platform
Description
AnKuai P823 Outdoor LPR Terminal for Parking Lane Installation
Product Overview

The AnKuai P823 is a vertical outdoor license plate recognition terminal designed specifically for parking lane installation. This integrated solution combines a high-definition LPR camera with an outdoor display and control system in a single, robust terminal.


AnKuai P823 Outdoor LPR Terminal with 5-megapixel HD LPR Camera IP65 Rated and 10.1-inch Outdoor LCD for Parking Lane InstallationKey Features
  • 5-megapixel HD LPR camera with deep learning algorithm
  • 10.1-inch outdoor LCD display for clear visibility
  • IP54 rated high-strength carbon steel housing
  • Integrated fill light, speaker, and barrier control outputs
  • Professional installation design with concrete base recommendations
Installation Specifications
  • Cabinet height: 1352 mm with 256 mm × 176 mm chassis footprint
  • Recommended installation distance: 3 to 6 meters from vehicle stop line or barrier gate
  • Mounting: M10 expansion bolts
  • Concrete base: 400 × 400 × 200 mm with pre-embedded PVC conduits
  • Camera horizontal viewing angle: within 45 degrees
Technical Specifications
Parameter Specification
Brand & Model AnKuai P823
Product Category License Plate Recognition Terminal
Working Voltage AC 220V ±10%
Power Consumption ≤60W
Operating Environment -20°C to +60°C, ≤95% RH, non-condensing
Protection Level IP54
Camera Resolution 5-megapixel HD
Recognition Algorithm ICE V6.0 CNN Deep Learning Algorithm
Recognition Distance 3.0 to 6.0 meters
Speed Range 0 to 40 km/h
Recognition Accuracy ≥99% for standard plates
Display 10.1-inch HD outdoor LCD (1366 × 768)
Network Interface RJ45 / LAN, 10/100 Mbps Ethernet
Default Camera IP 192.168.55.100
Connectivity & Control
  • External trigger input for loop detector or radar hardware trigger mode
  • OUT1 / OUT2 dry contact output for barrier opening control
  • RS485 serial communication interface
  • Internal 8 Ohm / 5W waterproof square speaker
  • 10-LED yellow fill light with photo-sensitive auto-control
