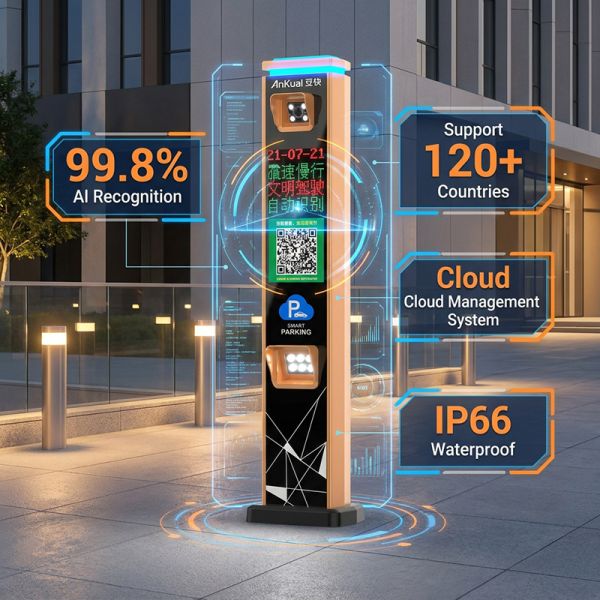

AK-P828-SP IP68 LPR Parking Access Terminal with 5MP HD Camera and 4-line LED Display
AK-P828-SP IP68 LPR Parking Access Terminal with 5MP HD Camera and 4-line LED Display
AK-P828-SP IP68 LPR Parking Access Terminal with 5MP HD Camera and 4-line LED Display
AK-P828-SP IP68 LPR Parking Access Terminal with 5MP HD Camera and 4-line LED Display
AK-P828-SP IP68 LPR Parking Access Terminal with 5MP HD Camera and 4-line LED Display
AK-P828-SP IP68 LPR Parking Access Terminal with 5MP HD Camera and 4-line LED Display
AK-P828-SP IP68 LPR Parking Access Terminal with 5MP HD Camera and 4-line LED Display
AK-P828-SP IP68 LPR Parking Access Terminal with 5MP HD Camera and 4-line LED Display
Specifications
Price :
USD 545-650 /Peice
Accesscontrol :
RFID, Barcode, Fingerprint compatible
Infra Red Sensors :
3-4 pairs
Model Number :
AK828
Ip Rating :
IP68
Payment Terms :
T/T
Working Temperature :
-30℃-80℃
Surface Treatment :
brushed finish
Housing Material :
304 Stainless Steel
Motor Power :
DC motor
Certification :
ISO,CE
Swing Arm Speed :
1s
MOQ :
1
Delivery Time :
10 WORKING DAYS
Power Voltage :
hospitals, enterprises and institutions
Shock Absorber :
hydraulic.
Supply Ability :
10000
Unlock Time :
0.15s
Output Power :
Single Core 30w
Place of Origin :
CHINA
Output Voltage :
DC 24Ｖ
Brand Name :
ANKUAI
Communicationinterface :
RS485, TCP/IP
Packaging Details :
CARTONS
Number Of Infrared :
4 Pairs Of Infared Inputs
Description
AK-P828-SP LPR Parking Access Terminal with TCP/IP and RS485
Product Description

The AK-P828-SP is a parking access terminal designed for system integrators requiring comprehensive communication and input interfaces alongside license plate recognition capabilities. This terminal features TCP/IP communication, 6 x USB 2.0 ports, RS485 interface, loop detector input, MIC interface, and additional connectivity options.

Equipped with a 5MP HD camera module featuring a 6mm fixed focus lens, the terminal operates at a camera height of 1230 mm with an optimal recognition distance of 3 to 6 meters. It includes a 4-line high-brightness LED display for custom messages and supports QR code scanning for vehicles without license plates. The system incorporates a dedicated LPR chip for recognition processing and features leakage protection circuit breaker for enhanced safety.


AK-P828-SP IP68 LPR Parking Access Terminal with 5MP HD Camera and 4-line LED DisplayAK-P828-SP IP68 LPR Parking Access Terminal with 5MP HD Camera and 4-line LED Display

Specifications
Item Specification
Brand AnKuai
Model AK-P828-SP
Product Type License Plate Recognition Terminal
System Use Unattended parking management
Working Voltage AC 220V
Operating Temperature -25°C to +70°C
Relative Humidity ≤85%, no condensation at room temperature
Ingress Protection IP54
LED Display 4-line high-brightness LED screen
LED Display Specification P3, 192 x 192 mm
LPR Camera 5MP HD module
Lens 6mm fixed focus lens
Camera Height 1230 mm
Optimal Recognition Distance 3 to 6 meters
Capture and LPR Rate ≥99.9% plate accuracy in all-weather conditions
Special Plate Accuracy ≥95% plate accuracy
Communication Protocol TCP/IP
Input Interfaces 6 x USB 2.0, RS485, loop detector input, MIC interface, etc.
Casing Dimensions 320 x 236 x 1395 mm (W x L x H)
Supported Plates Standard, new energy, public facility, restricted access area, emergency plates
QR Function QR code scanning for vehicles without plates
Voice Prompt Smart voice prompts
LPR Chip Dedicated LPR chip
Circuit Protection Leakage protection circuit breaker
Exterior Process Automotive-grade baking paint process
Outdoor Paint Reference Rust-free and paint-intact for over 3 years outdoors
Ambient Lighting Colorful ambient LED lighting
Key Features
  • TCP/IP communication supports parking software connection
  • Six USB 2.0 interfaces for peripheral connectivity
  • RS485 and loop detector input support access control integration
  • MIC interface for audio applications
  • 5MP camera with 6mm fixed focus lens supports plate capture
  • 4-line LED display supports custom parking messages
  • Leakage protection circuit breaker for enhanced safety
Applications

Parking system integration, vehicle entrance control, vehicle exit control, residential parking, commercial parking lots, enterprise facility access, automated parking lots, and parking barrier access points.

Frequently Asked Questions
What communication protocol is listed?
TCP/IP is listed as the communication protocol.
Does it include RS485?
Yes. RS485 is listed in the input interfaces.
Does it support loop detector input?
Yes. Loop detector input is listed in the source specifications.
What lens is used?
The source brochure lists a 6mm fixed focus lens.
What is the camera height?
The camera height is listed as 1230 mm.
