Specifications
Brand Name :
Kasugai
Model Number :
SUS304 JIS 5K BLFF
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L / C , T / T
Supply Ability :
1000 tons per month
Delivery Time :
30 - 60 working days
Packaging Details :
Seaworthy Packng
Product Name :
SUS F304 5K BLFF Flange
Size Range :
3/8" to 60"
Pressure Class :
5K
Face Type :
BLFF
Material :
SUS 304
Standard :
JIS B2220
Description

SUS304 5K BL-FF JIS Standard Stainless Steel Flange

Material:Stainless Steel SUS304

SUS304 material is a Japanese JIS standard and the most commonly used stainless steel, containing 18% Cr and 8% Ni. It can maintain good strength and heat resistance in high temperature and low temperature environments, and also has good corrosion resistance, weldability, cold workability and mechanical properties in the mild atmosphere.

SUS304 Stainless Steel Chemical Composition

Standard Grade C≤ Si≤ Mn≤ P≤ S≤ Cr Ni
JIS G4303 SUS304 0.08 1.00 2.00 0.045 0.030 18-20 8-10.5

SUS304 Stainless Steel Mechanical Properties

Standard Grade

Dia.(d)

(mm)

Yield Strength

(N/mm2)

Tensile Strength

(N/mm2)

Elongation

(%)

Hardness

(HB)

Hardness

(HV)
JIS G4303 SUS304 d≤180 ≥205 ≥520 40 ≤187 ≤200

Face Type-BLFF Blind Flat Face

A blind flange is a circular plate with a bolt hole and a solid surface that is used to seal off a pipeline or to create the end flow. They are widely utilized in the petrochemical, public services, pipe engineering, and water works industries. The blind flange is placed between two open flanges to prevent liquid flow via a pipeline.

Blind flange is typically essential when undertaking pipeline maintenance or repairs as the flow in the pipeline must be stopped for maintenance, yet the nearest valve may be kilometers away from the repair site. As a result, installing a blind flange on a pipeline is far more cost-effective.

The Flat Face flange has a gasket surface in the same plane as the bolting circle face. Applications using flat face flanges are frequently those in which the mating flange or flanged fitting is made from a casting.

Product Information

Product Name SUS304 5K BL-FF Flange
Size Range 3/8” to 60”
Pressure Class 5K (5kg/cm2)
Standards JISB2220
Face Type PTFF
Materials SUS304
Origin China
Application

Pumps, Valves, and vessels in manufacturing and food processing.

Pipe connections in industrial waterworks.

Heat exchangers and heating systems of all sizes.

Mining support.

Nuclear power systems

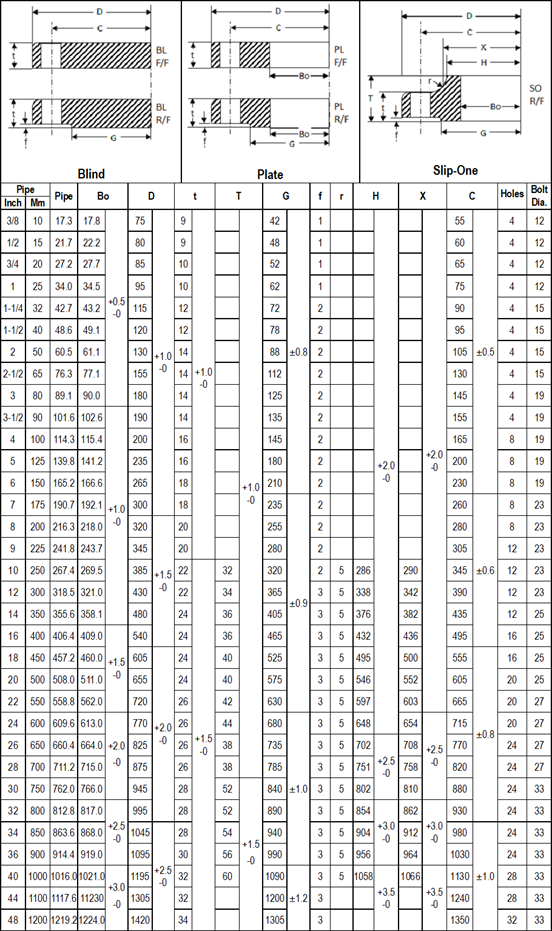

JIS Flange 5K (5kg/cm2) Dimensions
