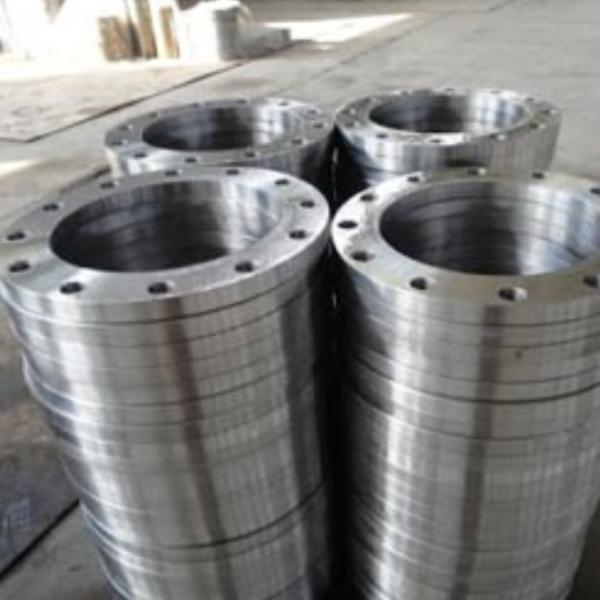

Slip On Carbon Steel Flange PN25 Industrial DIN2501 Standard 28 Inch Class 150
Slip On Carbon Steel Flange PN25 Industrial DIN2501 Standard 28 Inch Class 150
Slip On Carbon Steel Flange PN25 Industrial DIN2501 Standard 28 Inch Class 150
Slip On Carbon Steel Flange PN25 Industrial DIN2501 Standard 28 Inch Class 150
Specifications
Brand Name :
Kasugai
Model Number :
DIN 2501 PN25 SO
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L / C , T / T
Supply Ability :
100 tons per month
Delivery Time :
30 - 60 working days
Packaging Details :
Seaworthy Packng
Product Name :
DIN2501 PN25 Slip-on Carbon Steel Flange
Size Range :
4' to 28"
Pressure Class :
PN25
Face Type :
Slip-on (SO)
Standards :
DIN2501
Coating :
Anti-rust Paint, Could and Hot Dip Galvanized, Zinc Plated, Yellow Transparent, Oil Black Paint
Description

DIN2501 PN25 Slip-on Carbon Steel Flange

DIN 2501 is a German standard for industrial flanges

Product Information

Product Name DIN 2501 PN25 Slip-on Carbon Steel Flange
Size Range Dimension: 4” to 28”
Pressure Class PN25
Standards DIN2501
Face Type Slip-on(SO)
Coating Anti-rust Paint, Could and Hot Dip Galvanized, Zinc Plated, Yellow Transparent, Oil Black Paint

DIN2501 PN25 Slip-On Flanges Dimensions (mm)

Slip On Carbon Steel Flange PN25 Industrial DIN2501 Standard 28 Inch Class 150

DN

Pipe Size

Inch

 O.D. I.D. Bolt Holes Thickness

Weight

(kg)
Bolt Circle Dia. Bolt Dia. Numbers
D K H T
100 4 235 116.0 190 22 8 26 6.1
125 5 270 141.5 220 26 8 28 8.2
150 6 300 170.5 250 26 8 30 10.4
200 8 360 221.5 310 26 12 32 14.3
250 10 425 276.5 370 30 12 35 20.2
300 12 485 327.5 430 30 16 38 26.8
350 14 555 359.5 490 33 16 42 41.8
400 16 620 411.0 550 36 16 48 576.7
450 18 670 462.0 600 36 20 54 69.9
500 20 730 513.5 660 36 20 58 86.9
600 24 845 616.5 770 39 20 68 127.3
700 28 960 716.0 875 42 24 85 192.5
