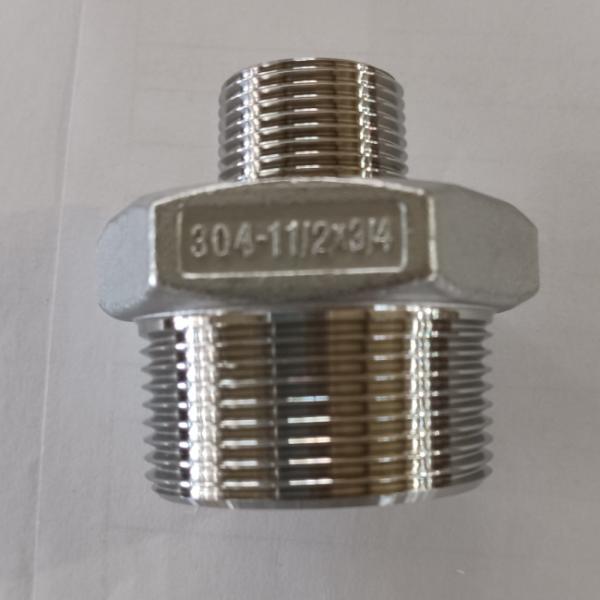

ISO 49-1994 Stainless Steel Cast Fittings CL1000 Hexagon Threaded Reducing Nipple
ISO 49-1994 Stainless Steel Cast Fittings CL1000 Hexagon Threaded Reducing Nipple
Specifications
Brand Name :
KASUGAI
Model Number :
AISI 304 ISO 49-1994(E) CL1000 1½"x¾" Stainless Steel Cast Hexagon Threaded Reducing Nipple
Certification :
ISO-9001; PED; AD 2000
Place of Origin :
CHINA
MOQ :
TO BE NEGOTIATED
Price :
PER BASE MATERIAL PRICE
Payment Terms :
L / C , T / T
Supply Ability :
100 TONS / MONTH
Delivery Time :
60 DAYS FOR ONE CONTAINER
Packaging Details :
SEAWORTHY PACKING
Product Name :
FAISI 304 ISO 49-1994(E) CL1000 1½"x¾" Stainless Steel Cast Hexagon Threaded Reducing Nipple
Size Range :
1½" x ¾"
Thread Type :
ASME B1.20.1(NPT), BS 21 (NSPT), DIN2999/259
Pressure Class :
Class 1000 NPT
Standards :
AISI 304/L
Dimensions :
ISO 49-1994(E)
Description

AISI 304 ISO 49-1994(E) CL1000 1½” x ¾“ Stainless Steel Cast Hexagon Threaded Reducing Nipple

Product Information

Product NameAISI 304 ISO 49-1994(E) CL1000 1½” x ¾“ Stainless Steel Cast Hexagon Threaded Reducing Nipple
Thread TypesASME B1.20.1(NPT)
DimensionsISO 49-1994(E)
Size Range1½” x ¾“
Pressure ClassClass 1000
MaterialsAISI 304/L


Standard & Materials:AISI 304L
The SAE/ANSI 304 (AISI 304) is the most commonly available and used type of stainless steel. It is also referred to as 18/8 stainless steel, A2 stainless steel (as per the ISO 3506), or 304S15 (as per the British Standard). This is an austenitic chromium-nickel alloy which practically means that it has a very high corrosion resistance. It is also nonmagnetic and can’t be hardened through heat treatment. As AISI 304 can withstand extremely corrosive environments and can be shaped, machined and welded relatively easy, it is very popular for a wide range of applications.

AISI 304/L Chemical Composition (%)

GradeC, maxCrMn, maxNiP, maxS, maxSi, max
AISI 3040.0818~2028~10.50.0450.031
AISI 304L0.0318~2028~120.0450.031


AISI 304/L Mechanical Properties

Mechanical Properties304304L
Hardness, Knoop138158
Hardness, Rockwell B7082
Hardness, Vickers129159
Tensile Strength, Ultimate505 MPa564 MPa
Tensile Strength, Yield215 MPa210 MPa
Elongation at Break70%58%
Modulus of Elasticity193~200 GPa193~200 GPa
Charpy Impact325 J216J


ISO 49-1994(E) Dimensions of Hexagon Nipple (mm)
Width across flats, s, are left to the discretion of the manufacturer.


ISO 49-1994 Stainless Steel Cast Fittings CL1000 Hexagon Threaded Reducing Nipple

Fitting Sizes (inches)Dimensions (mm)
N8N8 Reducinga
⅛—29
¼—36
⅜⅜ × ¼38
½

½ × ¼

½ × ⅜

44
¾

¾ × ⅜

¾ × ½

47
1

1 × ½

1 × ¾

53
1¼

(1¼ × ½)

1¼ × ¾

1¼ × 1

57
1½

(1½ × ¾)

1½ × 1

1½ × 1¼

59
2

(2 × 1)

2 × 1¼

2 × 1½

68
2½(2½ × 2)75
3

(3 × 2)

(3 × 2½)

83
4—95
