Steel Anti Loose Titanium Flange Screw Bolt External Hex Drive With Hat Ring
Steel Anti Loose Titanium Flange Screw Bolt External Hex Drive With Hat Ring
Steel Anti Loose Titanium Flange Screw Bolt External Hex Drive With Hat Ring
Steel Anti Loose Titanium Flange Screw Bolt External Hex Drive With Hat Ring
Steel Anti Loose Titanium Flange Screw Bolt External Hex Drive With Hat Ring
Steel Anti Loose Titanium Flange Screw Bolt External Hex Drive With Hat Ring
Steel Anti Loose Titanium Flange Screw Bolt External Hex Drive With Hat Ring
Steel Anti Loose Titanium Flange Screw Bolt External Hex Drive With Hat Ring
Specifications
Brand Name :
Summery
Model Number :
flange screw
Certification :
ISO 7045
Place of Origin :
China,shanghai
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
10000000
Delivery Time :
7-10 Days
Packaging Details :
Poly bags
Product Name :
Cross Head Screw
Material :
steel
Cross recess :
Type H
Surface :
Zinc plate
Project :
flange screw
Size :
M10x30
Grade :
8.8
Other :
ASME B18.6.3
Description

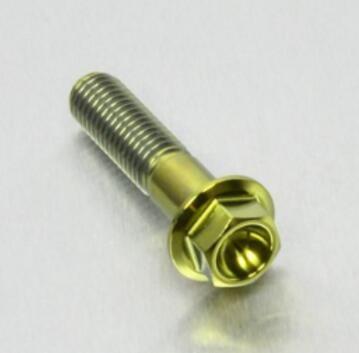

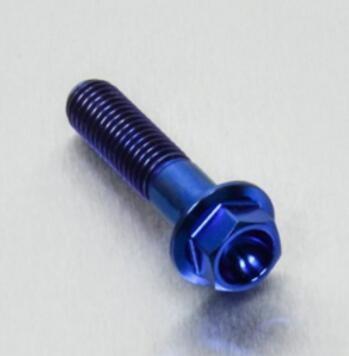

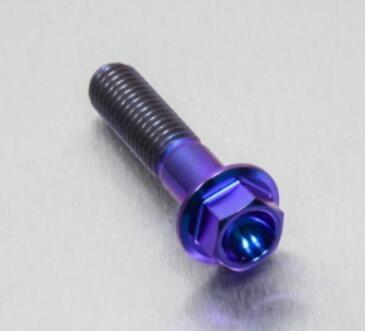

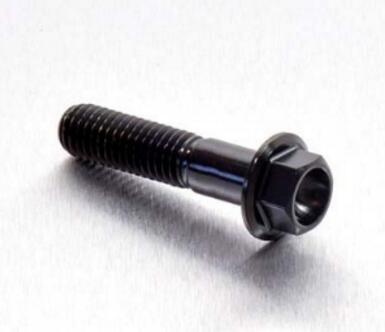

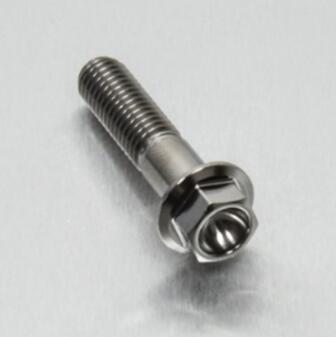

Steel Anti Loose Titanium Flange Screw Bolt External Hex Drive With Hat Ring

Product Description

Product Name
Titanium Hex Head M8 x (1.25mm) x 35mm
Part No.
TiGi-835
Product Type
bolt
Material
Titanium Grade 5
Weight In Gms
8.61
Head Style
Flanged Hex Head
Thread Diametzer
8mm
Length
35mm
Thread Length
22mm
Thread Pitch
1.25mm
Head Diameter
15mm
Head Height
6.5mm
Socket Size
10mm
Shank Length
13mm
Pack Quantity
1
Color
rainbow, golden, titanium color

Density
4420kg/m3 (276lb/ft3)
Young's Modulus
110GPa (16 x 106 psi)
Yield Strength
828MPa (120 x 103 psi)
Ultimate Tensile Strength
1030MPa (149 x 103 psi)
Compressive Strength
960MPa (139 x 103 psi)
Shear Modulus
43GPa (6.24 x 106 psi)
Ductility
10% elongation at break
Poisson's Ratio
0.34 €
Hardness
36 Rockwell C
Strength-to-Weight Ratio
187 kNm/kg
Stiffness-to-Weight Ratio
24.9 Mnm/kg

Steel Anti Loose Titanium Flange Screw Bolt External Hex Drive With Hat Ring
