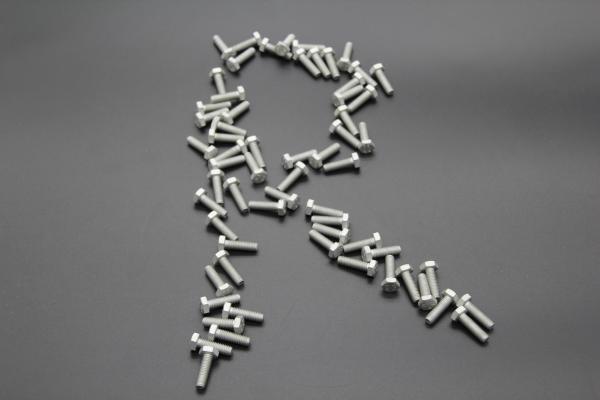

Heavy Duty Hexagonal Headed Bolt DIN 933 Grade A M8X20 8.8 For Connection
Heavy Duty Hexagonal Headed Bolt DIN 933 Grade A M8X20 8.8 For Connection
Heavy Duty Hexagonal Headed Bolt DIN 933 Grade A M8X20 8.8 For Connection
Heavy Duty Hexagonal Headed Bolt DIN 933 Grade A M8X20 8.8 For Connection
Specifications
Brand Name :
Summery
Model Number :
DIN933
Certification :
ISO4017
Place of Origin :
Shanghai
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
D/A, L/C, T/T, Western Union
Supply Ability :
10000000
Delivery Time :
7-10 Days
Packaging Details :
Poly bags
Product Name :
DIN933 hex head bolt
Material :
medium carbon steel
Size :
M6x12
Tolerance :
6g
Surface :
Dacromet
Product Grade :
A
Description

Hexagon head screws — Product grades A

ISO4017 DIN933 bolts

This International Standard specifies the characteristics of hexagon head screws with threads from M1,6

up to and including M64, of product grade A for threads M1,6 to M24 and nominal lengths up to and

including 10 d or 150 mm,whichever is shorter, and product grade B for threads over M24 or nominal

lengths over 10 d or 150 mm, whichever is shorter.

NOTE: This type of product is the same as that covered by ISO 4014 DIN931 with the exception of

threading up to head and nominal length up to and including 200 mm as popular lengths.

Heavy Duty Hexagonal Headed Bolt DIN 933 Grade A M8X20 8.8 For Connection

Heavy Duty Hexagonal Headed Bolt DIN 933 Grade A M8X20 8.8 For Connection

Minimum breaking torques
Thread Pitch (mm) Minimum breaking torque (N.m)
Property class
8.8 9.8 10.9 12.9
M2 0.40 0.37 0.4 0.45 0.5
M2.5 0.45 0.82 0.9 1 1.1
M3 0.50 1.5 1.7 1.9 2.1
M3.5 0.60 2.4 2.7 3 3.3
M4 0.70 3.6 3.9 4.4 4.9
M5 0.80 7.6 8.3 9.3 10
M6 1.00 13 14 16 17
M7 1.00 23 25 28 31
M8 1.25 33 36 40 44
M8x1.0 1.00 38 42 46 52
M10 1.50 66 72 81 90
M10x1.0 1.00 84 92 102 114
M10x1.25 1.25 75 82 91 102
