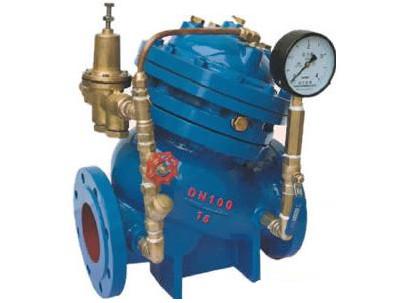

PN25 RF Diaphragm Hydraulic Control Valves , Cast Iron Pressure Reducing Valve
PN25 RF Diaphragm Hydraulic Control Valves , Cast Iron Pressure Reducing Valve
Specifications
Brand Name :
TEYI/OEM
Model Number :
YX741X
Certification :
API/CE/ISO/TS
Place of Origin :
China
MOQ :
1-10PCS
Price :
negotiation
Payment Terms :
L/C, T/T.Western Union
Packaging Details :
500pcs per month
Name :
Multifuncational Pressure reduce Valve
Size :
DN50 to DN1200
Pressure :
PN6 to PN25
Working Temp. :
0 to 120 ℃
Medium :
water or Oil
inspection Standard :
GB/T13927 or API 598
Description

PN25 RF Diaphragm Hydraulic Control Valves , Cast Iron Pressure Reducing Valve

Description:

Multifuncational hydraulic control valve include main valve and control system. The control system include pipe, fitting, needle valve and pilot valve, etc. It was installed in water supply and drainage pipeline. The valve closed or opened against differential pressure.

Multifuncational Pressure reducing /Sustaining valve is install in feeding water supplying and drainage system in high building to reduce the inlet pressure as per requirement. The valve ensures outlet pressure will be stayed in setting value stably by its own energy, the outlet pressure will be not changed against inlet pressure and flow.

Material:

Material for main Parts Body/Cover Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Diaphragm EPDM or NBR
Disc Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Pilot valve SS or Brass
Spring SS304
Shaft A276 410
Operation Automatic control by pressure differential
Working Temperature 0 to 80 Celsius degree
Working Medium Water

Dimesion:

PN25 RF Diaphragm Hydraulic Control Valves , Cast Iron Pressure Reducing Valve

Size 50 65 80 100 125 150 200 250 300 350
L 240 270 300 350 400 480 500 605 700 800
H 203 222 241 305 356 394 457 533 610 950
Size 400 450 500 600 700 800 900 1000 1100 1200
L 900 900 1100 1150 1300 1500 1650 1800 1800 2000
H 1150 1180 1550 1600 1750 1900 2606 2765

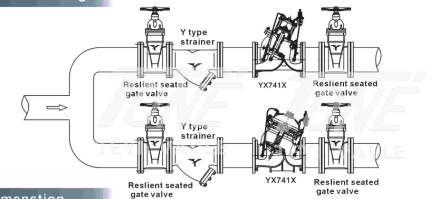

Installation drawing:

PN25 RF Diaphragm Hydraulic Control Valves , Cast Iron Pressure Reducing Valve

Competitive Advantage:

1 . 30 years of industrial valves experience to guarantee quality.

2 . Always stand on the side of of the customer, and support customer to win the market and find new way.

3 . 12 months warranty

4 . Short Delivery time
