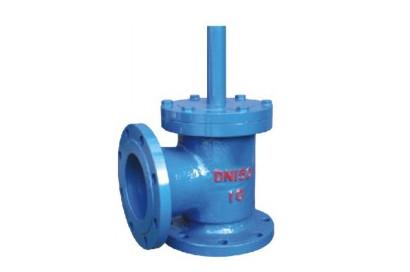

PN10 RF Ductile Iron 10 Inch Foot Valve Flange Type For Water Class 125LB
PN10 RF Ductile Iron 10 Inch Foot Valve Flange Type For Water Class 125LB
Specifications
Brand Name :
TEYI
Model Number :
SSDF
Certification :
CE/API/ISO/TS
Place of Origin :
Zhejiang, China
MOQ :
1-20PCS
Price :
negotiation
Supply Ability :
500pcs per month
Delivery Time :
7-15 working days after received payment
Packaging Details :
Packed in carton firstly, and then reinforced with wooden case for outer packing
Product Name :
SSDF Foot Valve
Material :
Cast Iron, Ductile Iron,Carbon Steel
Connection Form :
Flange, RF
Size :
DN50 to DN800
Pressure :
0.6-1.6Mpa( Class125LB)
Medium :
Water
Description

PN10 RF Ductile Iron 10 Inch Foot Valve Flange Type For Water Class 125LB


Description:

SSDF Foot Valve can be installed at inlet of pumps and outlet of pumps. when it installed at inlet of pumps, it will be used for foot valve. And if the valves was installed outlet of pumps, it was used for check valve. please see the installation drawings.

Main Part Material

No.NameMaterial
1BodyCast Iron, Ductile Iron, Carbon Steel, Stainless Steel
2DiscCarbon Steel, Stainless steel
3Sealing RingNBR , EPDM
4BonnetCast Iron, Ductile Iron, Carbon Steel, Stailess Steel


Specification

  • Nominal Pressure: 0.6-1.6Mpa
  • Pressure Test: GB/T13927-1992
  • Face to Face Dimension: GB/T1221-1989
  • Working Pressure: ≤80°C
  • Suitable Medium: Water, Sewage, Seawater

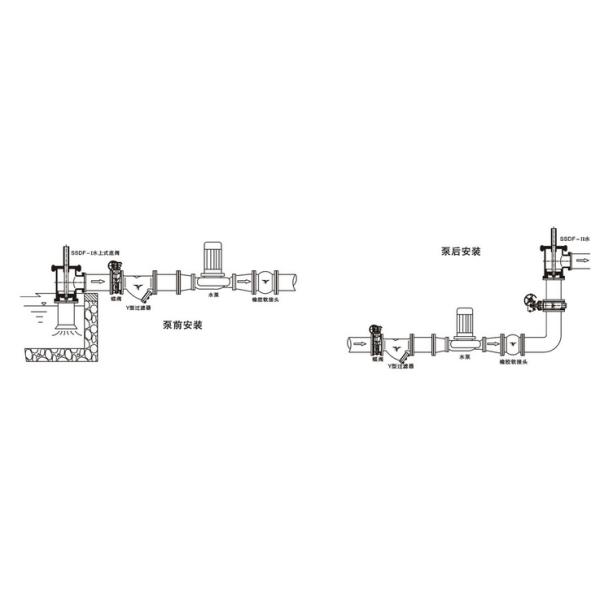

Installation Drawing
PN10 RF Ductile Iron 10 Inch Foot Valve Flange Type For Water Class 125LB

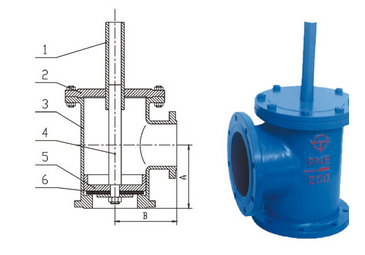

Main Dimensions:
PN10 RF Ductile Iron 10 Inch Foot Valve Flange Type For Water Class 125LB

DN(mm)5065801001502002503003504004505006007008009001000
A120120135165175195245290295345375450460
B120130135145170210245280310390395500500



Advantage:
1, We offer the non-standard valves, according to customer requirements
2, If you want, you can have your own logo on the products
3, Exported to all over of the world
4, We can promise the quality, passed the CE and ISO certification
Choose me, do not hesitate:
1, Design team: We have the professional design people, as u choose, Customer's sample is always welcomed
2, Professional factory: We are manufacturer, specializing in manufacturing stainless steel valves for many years, competitive price with good quality, the deadline usually is 30-45 days
3, Sample: We can give out sample in 3 days, but the shipment charge usually paid by your side, the fee of it will be rebound when we have formal order.
4, Rapid response to your needs: We will be answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
