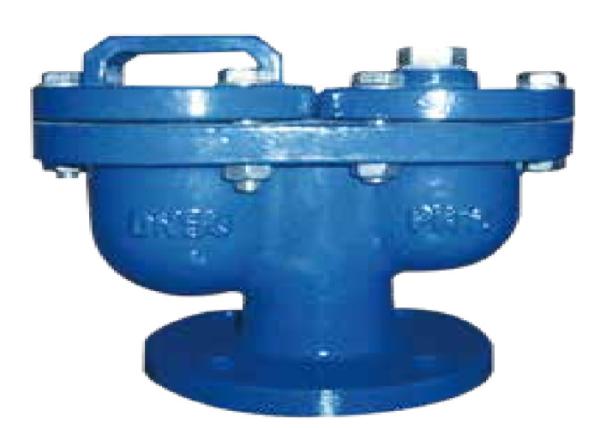

Ductile Iron Double Ball Air Valve , Automatic 1.6mpa Air Release Valves
Ductile Iron Double Ball Air Valve , Automatic 1.6mpa Air Release Valves
Specifications
Brand Name :
Y
Model Number :
2QB2X-10/16
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs per year
Delivery Time :
5-8 work days
Packaging Details :
wooden box 1200*1100*1100
Product name :
Flanged Air Valve
Body material :
Ductile Iron
Color :
Blue / Customer's Request
Size :
DN50 to DN150
Ball :
ABS
Connection :
flange
Working temperature :
0~80℃
Working pressure :
1.0~1.6mpa
Description

Ductile Iron Pressure 1.0mpa~1.6mpa Automatic Double Ball Flanged Air Valve

Specifications

Flange end BS4504
Seal test 1.0/1.76 mpa
suitable temperature 0-80℃
suitable

Main parts and materials

Body Ductile Iron
Ball ABS
Bonnet Ductile Iron

Dimension

DN D D1 D2 L B H Z-D
50 165 125 99 240 19 211 4-19
65 185 145 118 256 19 211 4-19
80 200 160 132 305 19 261 8-19
100 220 180 156 328 19 269 8-19
150 285 240 211 392 19 320 8-23
