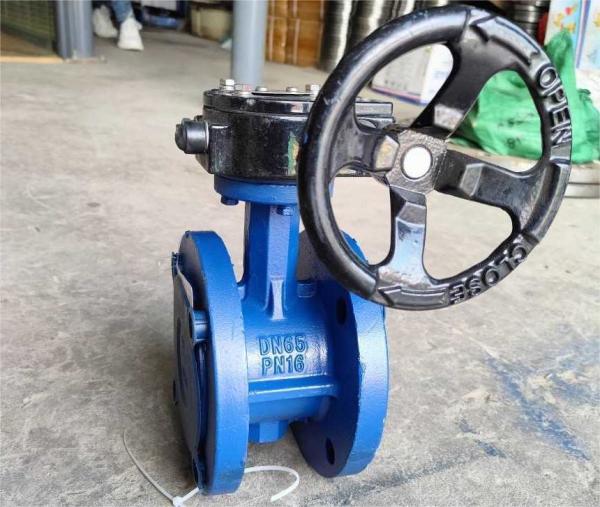

Metal Butterfly Flange ValveBlue Color Dn 2 2.5 3 Inch
Metal Butterfly Flange ValveBlue Color Dn 2 2.5 3 Inch
Metal Butterfly Flange ValveBlue Color Dn 2 2.5 3 Inch
Metal Butterfly Flange ValveBlue Color Dn 2 2.5 3 Inch
Specifications
Brand Name :
Y brand
Model Number :
D341X-10
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
10 pieces
Price :
Contact Us
Payment Terms :
T/T, L/C
Supply Ability :
3000 pcs per month
Delivery Time :
5-8 work days
Packaging Details :
Woven bag, carton, wooden box，according to customer's requirements
Type :
Butterfly Valve
Transmission mode :
Handwheel
DN :
2 2.5 3 inch
PN :
1.0 MPa
Connection Form :
Flange
Color :
Blue
Valve body materials :
cast iron+NRB
Butterfly plate material :
QT450-10
Applicable medium :
Water
Applicable temperature :
≤80℃
Manufacturing standard :
GB12238
MOQ :
10 pcs
Description

Metal Dn 2 2.5 3 Inch Wholesale Price Flanged Butterfly Valve


Flanged Butterfly Valve Description


The sealing of the valve shaft is controlled by adding rubber to the rotating surface between the butterfly plate and the valve seat. The butterfly plate with rubber sealing surface and rubber lining is adopted to ensure that the valve shaft is not in contact with the fluid medium in the cavity, with tight sealing performance and long service life.

Outline And Connecting Measurement

Model

DN

Size

D341X-10

mm

D

D1(PN10)

Z-φd

L

b-f

50

160

125

4-φ18

108

20-3

65

180

145

4-φ18

112

20-3

80

195

160

8-φ18

114

22-3


Metal Butterfly Flange ValveBlue Color Dn 2 2.5 3 Inch

Application


The Flanged Butterfly Valve is suitable for occasions requiring reliable sealing and good adjustment characteristics. It can be used to quickly cut off or adjust the flow rate. It is used for regulating flow and intercepting medium in water supply and drainage and gas pipelines of food, medicine, chemical industry, petroleum, electric power, textile, paper making, etc. with temperature ≤80℃ and nominal pressure ≤1.6MPa.

Performance Specification

Modle PN(MPa) Test Pressure(MPa) Applicable temperature Applicable media
Strength(water) Sealing(water)
D341X-10 1.0 1.5 1.1 ≤80℃ Water
D341X-16Q 1.6 2.4 1.76 ≤80℃ Water
