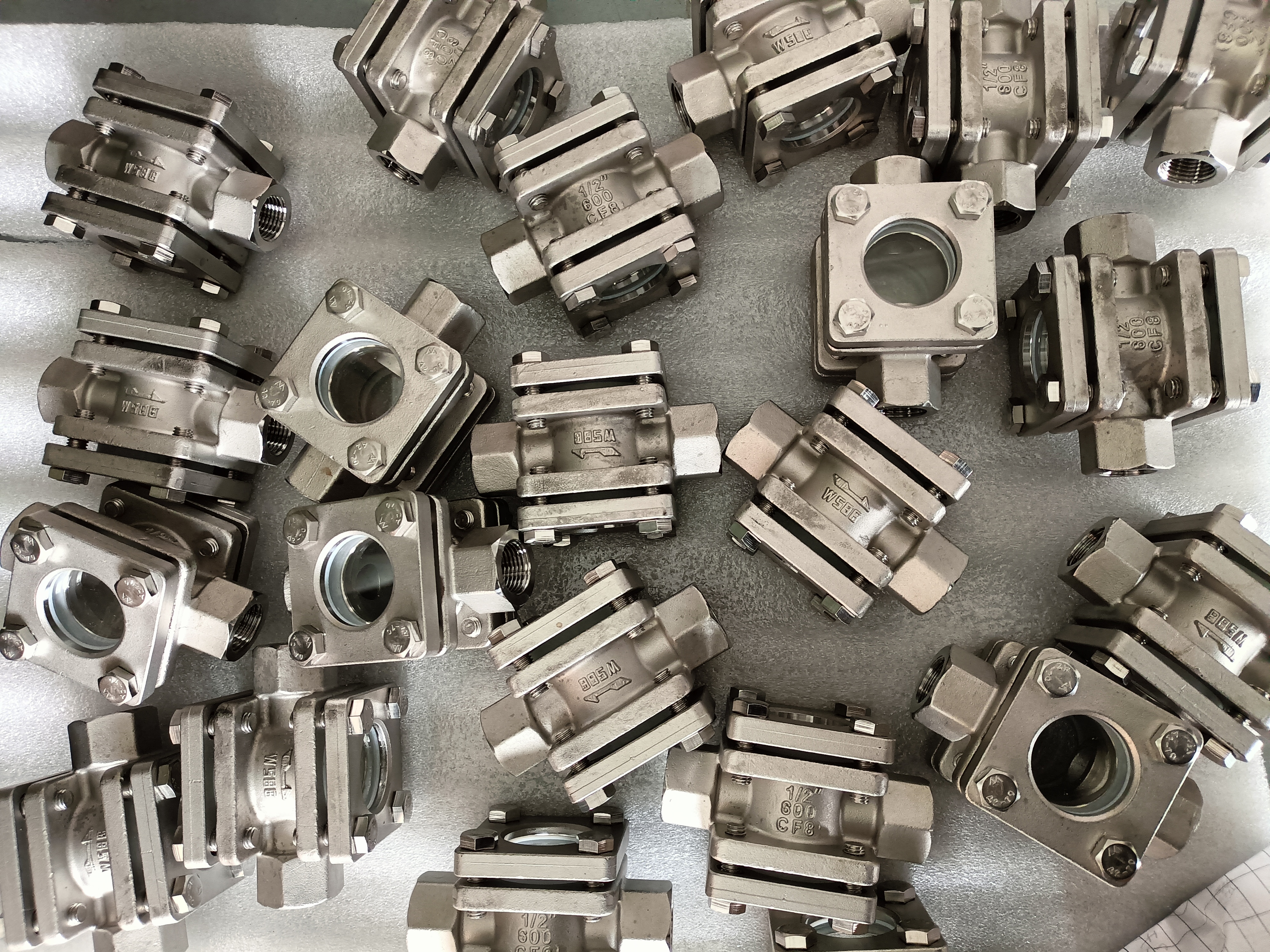

Screwed 800 wog Sight Glass Flow Indicator PTFE Seat for Waste Water Treatment
Screwed 800 wog Sight Glass Flow Indicator PTFE Seat for Waste Water Treatment
Specifications
Brand Name :
CXDLV
Model Number :
Sight Glass Flow Indicator
Certification :
CE&ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Payment Terms :
T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability :
500pcs/Mon
Delivery Time :
5~25 Work Days
Packaging Details :
Suitable Plywood Cases according to different valves structure
Body Material :
Stainless Steel/Casting Steel/904L
Glass :
Borosilicate/Tempered
Seat :
PTFE/PPL
Model :
Flapper
Valve Size :
1/2" ~2"
Temperature :
-20~180℃
Description

Screwed 800 wog Sight Glass Flow Indicator PTFE Seat for Waste Water Treatment


Product Feature

Flow Indicator Sight Glass

Applicable Standards:
- Design and Manufacturing: ASTM B16.34

- Connection: Threaded NPT,BSP

- Test and Inspection: API598

Size Range:
- DN15~DN40

Pressure Rating:
- GB PN16
Temperature Range:
- -20°C~180°C

Sight glass, also called inspection glass, sight port or sight windows is described as a window in a pipe, or sidewalls of boilers, tanks, process chambers or silos for visually observing the presence, flow or the level of a medium. With this sight glass you can check / inspect a device or the entire process.


Sight Glass Overview

When simple visual flow indication will be sufficient we have a sight flow indicator option to suit most applications.

Our sight indicators are ideal for observing and monitoring fluid characteristics such as direction, flow and colour.

We have rising ball style, spinners and flap and spout flow indicator options available in a choice of sizes and materials with screwed, flanged or wafer connections. Compatible with water, oil, chemicals up to 600 centistokes as well as gases, our flow sight indicators meet the needs of many and varied applications.


Technical Data

Screwed 800 wog Sight Glass Flow Indicator PTFE Seat for Waste Water Treatment

DN H L D
15 60 100 89
20 70 100 98
32 90 130 117

Screwed 800 wog Sight Glass Flow Indicator PTFE Seat for Waste Water Treatment

Application

1. Utilities and power
2. Food and beverage
3. Biofuels
4. Wastewater treatment and management
5. And chemical/petrochemical

Model Selection

Product Name Flow Sight Glass Indicator
Connection Flange Threaded
Pressure DIN/JIS/ANSI 0.6Mpa
Material 1)CF8/SS304 2)CF8M/SS316 3)Carbon Steel
