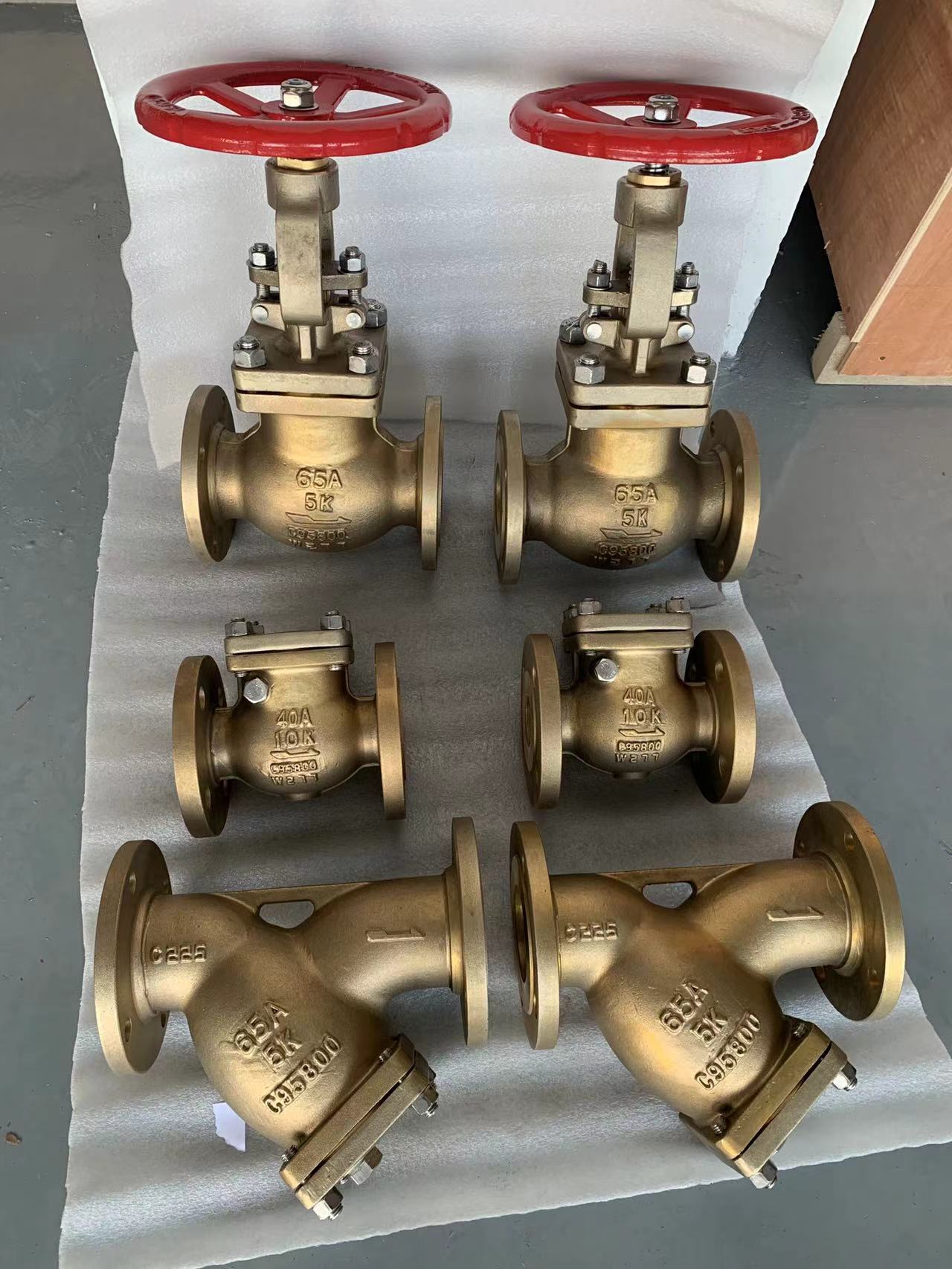

C95800 Aluminum Bronze Swing Check Valve 150LB Raised Flange Connection for Marine
C95800 Aluminum Bronze Swing Check Valve 150LB Raised Flange Connection for Marine
Specifications
Brand Name :
CXDLV
Model Number :
H44W-150LB
Certification :
ISO9001&PED
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
7-30 days
Packaging Details :
Suitable Polywood Cases according to different valves structure
Disc Material :
C95800
Temperature :
Normal Temperature
Size :
1/2"~1/1/2"
Pressure :
150lb
Media :
Water,Oil,Gas
Structure :
Check
Description

C95800 Aluminum Bronze Swing Check Valve 150LB Raised Flange Connection for Marine

Specifications

- Design Standard: ASME B16.34
- Face to Face: ASME B16.10
- End Flange: ANSI/ASME B16.5
- Inspection and Test: API598


Application

Check Valves are also known as one-way valves that allow the flow of the fluid in only one direction. We manufacture our own line of Check Valves in a variety of designs such as swing check, lift check, ball check, dual plate check, and single plate check. Our designs ensure our valves are easy to maintain, economical, and fully functional in horizontal and upward flow applications.
C95800 Aluminum Bronze Swing Check Valve 150LB Raised Flange Connection for Marine

SIZE d L H D C G T N-ΦM
1 1/2" 40 165 75 127 98.5 73 14.3 4-16
2" 50 203 98 152 120.5 92 15.9 4-19
2 1/2" 65 216 112 178 139.5 105 17.5 4-19

C95800 Aluminum Bronze Swing Check Valve 150LB Raised Flange Connection for Marine
Feature

The swing-type check valve adopts a built-in rocker swing type structure, and all the opening and closing parts of the valve are installed inside the valve body without penetrating the valve body, except that the middle flange portion is sealed with a sealing gasket or a sealing ring, and the whole There is no leak point, which eliminates the possibility of valve leakage.The valve flap has a certain degree of freedom in the range of 360 degrees, and there is appropriate micro position compensation.


Package&Delivery

Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days

FAQ

Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
