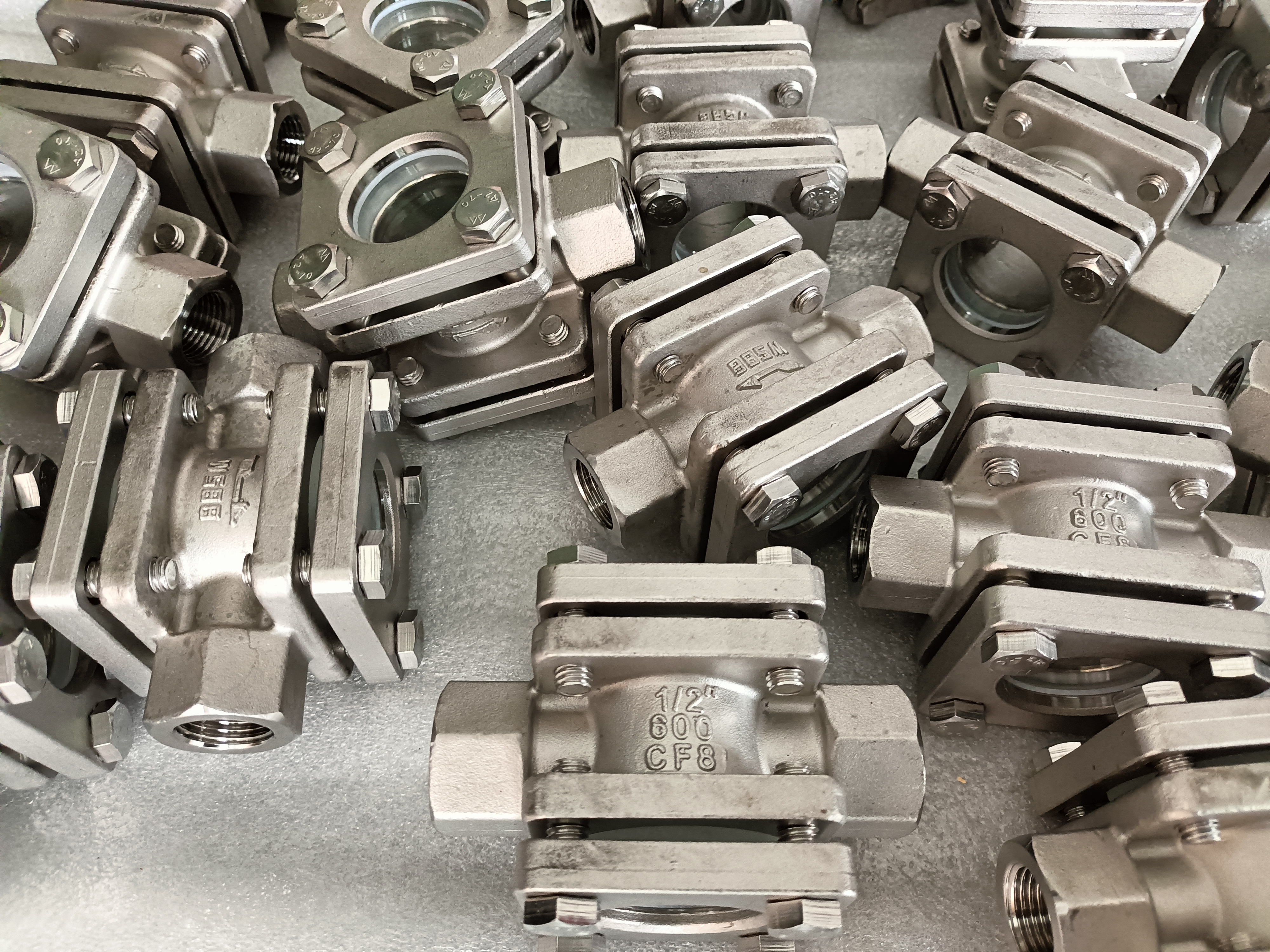

1/2 Inch Stainless Steel Sight Glass Threaded Connection NPT
1/2 Inch Stainless Steel Sight Glass Threaded Connection NPT
Specifications
Brand Name :
CXDLV
Model Number :
Sight Glass/SG
Certification :
ISO5211/PED
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Payment Terms :
T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability :
500pcs/Mon
Delivery Time :
5~25 Work Days
Packaging Details :
Suitable Plywood Cases according to different valves structure
Body Material :
CF8M/CF8/A216 WCB/CF3M
Glass :
Borosilicate/Tempered
Seat :
PTFE/NBR
Connection :
BSP/NPT
Valve Size :
1/2" ~4"
Temperature :
-20~180℃
Description

1/2 Inch Stainless Steel Sight Glass Threaded Connection NPT
Product Feature
Flow Indicator Sight Glass Threaded Connection
Applicable Standards:
- Connection: Threaded
- Test and Inspection: API598
Size Range:
- DN15~DN40
Pressure Rating:
-1.0Mpa
Temperature Range:
- -20°C~180°C

Sight glass, also called inspection glass, sight port or sight windows is described as a window in a pipe, or sidewalls of boilers, tanks, process chambers or silos for visually observing the presence, flow or the level of a medium. With this sight glass you can check / inspect a device or the entire process.


Sight Glass Overview
When simple visual flow indication will be sufficient we have a sight flow indicator option to suit most applications.
Our sight indicators are ideal for observing and monitoring fluid characteristics such as direction, flow and colour.

Technical Data

1/2 Inch Stainless Steel Sight Glass Threaded Connection NPT

DN H L D
15 60 100 89
20 70 100 98
25 80 115 108

1/2 Inch Stainless Steel Sight Glass Threaded Connection NPT


Application
1. Utilities and power
2. Pharmaceuticals
3. Food and beverage
4. Biofuels
5. Wastewater treatment and management
6. And chemical/petrochemical

Model Selection

Product Name Flow Sight Glass Indicator
Connection Flange Threaded
Pressure DIN/JIS/ANSI 0.6Mpa
Material 1)CF8/SS304 2)CF8M/SS316 3)Carbon Steel/904L
