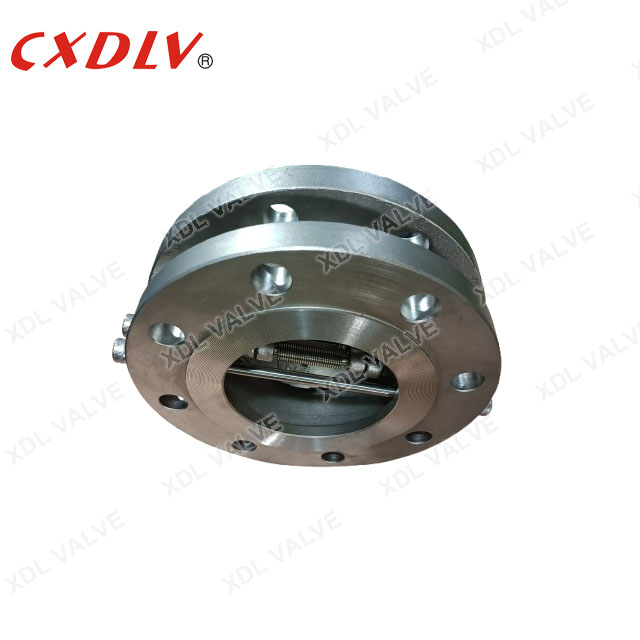

Non Return Valve Stainless Steel Flange Check Valve Dual Plates Swing Check Valve
Non Return Valve Stainless Steel Flange Check Valve Dual Plates Swing Check Valve
Specifications
Payment Terms :
T/T,L/C,PayPal,
Pressure Rating :
PN16
Spring Material :
Stainless Steel 316
Brand Name :
Xidelong
Applicable Media :
Water, Oil, Gas
Packaging Details :
Export-grade plywood case with inner foam protection
Model Number :
H46W-16R
Working Temperature :
-29°C to 200°C
MOQ :
1 Piece
Delivery Time :
7-15 working days
Connection Type :
Wafer
Price :
USD 50-200 / Piece
Body Material :
Stainless Steel CF8M (316)
Supply Ability :
5000 Pieces per Month
Valve Type :
Dual Plate Wafer Check Valve
Certification :
ISO 9001:2015, CE
Disc Material :
Stainless Steel CF8M (316)
Place of Origin :
Zhejiang, China
Description

Non Return Valve Stainless Steel Flange Check Valve Dual Plates Swing Check Valve

The Xidelong Wafer Dual Plates Check Valve is a high-performance non-return valve engineered for reliable backflow prevention in demanding industrial pipeline systems. Featuring a robust stainless steel CF8M (A351 Grade 316) body and dual spring-loaded discs, this flange connection check valve delivers exceptional corrosion resistance, rapid closure, and maintenance-free operation across a wide range of applications.

Key Features

Feature Benefit
Dual Plate Spring-Loaded Design Torsion spring mechanism ensures instant, bubble-tight closure when flow reverses, preventing water hammer and system damage
CF8M Stainless Steel Body & Discs Superior corrosion and oxidation resistance; suitable for aggressive media including seawater, chemicals, and high-temperature fluids up to 200°C

Technical Specifications

  • Body & Disc Material: ASTM A351 CF8M (316 Stainless Steel),CF8/Dulplex Staineless2205/Dulplex Staineless2507
  • Seat Material: Virgin PTFE
  • Spring Material: Stainless Steel 316 (Inconel X-750 optional)
  • Connection Standard: EN 1092-1 PN16 / ASME B16.5 Class 150 flanges
  • Design Standard: API 594, EN 13709
  • Working Temperature: -29°C to +200°C (-20°F to +392°F)
  • Applicable Media: Water, hot water, steam, oil, gas, weak acids, organic solvents

Typical Applications

  • Water Treatment Plants: Pump discharge backflow prevention in raw water, treated water, and sludge lines
  • HVAC Systems: Chilled water, condenser water, and hot water circulation loops
  • Oil & Gas: Refinery process lines, tank farm piping, and fuel transfer systems
  • Marine & Shipbuilding: Ballast water systems, bilge discharge lines, firefighting mains
  • Chemical Processing: Corrosive media transfer where 316 SS compatibility is required
  • Power Generation: Cooling water circuits, auxiliary piping, condensate return lines

Quality Assurance

Every Xidelong dual plate check valve undergoes the following quality control procedures before shipment:

  • 100% shell pressure test per API 598 at 1.5x rated pressure
  • 100% seat leakage test at 1.1x rated pressure with zero visible leakage
  • Material certificate (EN 10204 3.1) for body, disc, and trim components
  • Dimensional inspection against API 594 face-to-face tolerances
  • Full traceability from melt lot to finished product

Contact us today for a competitive quotation, technical datasheet, or to request a sample for evaluation.
