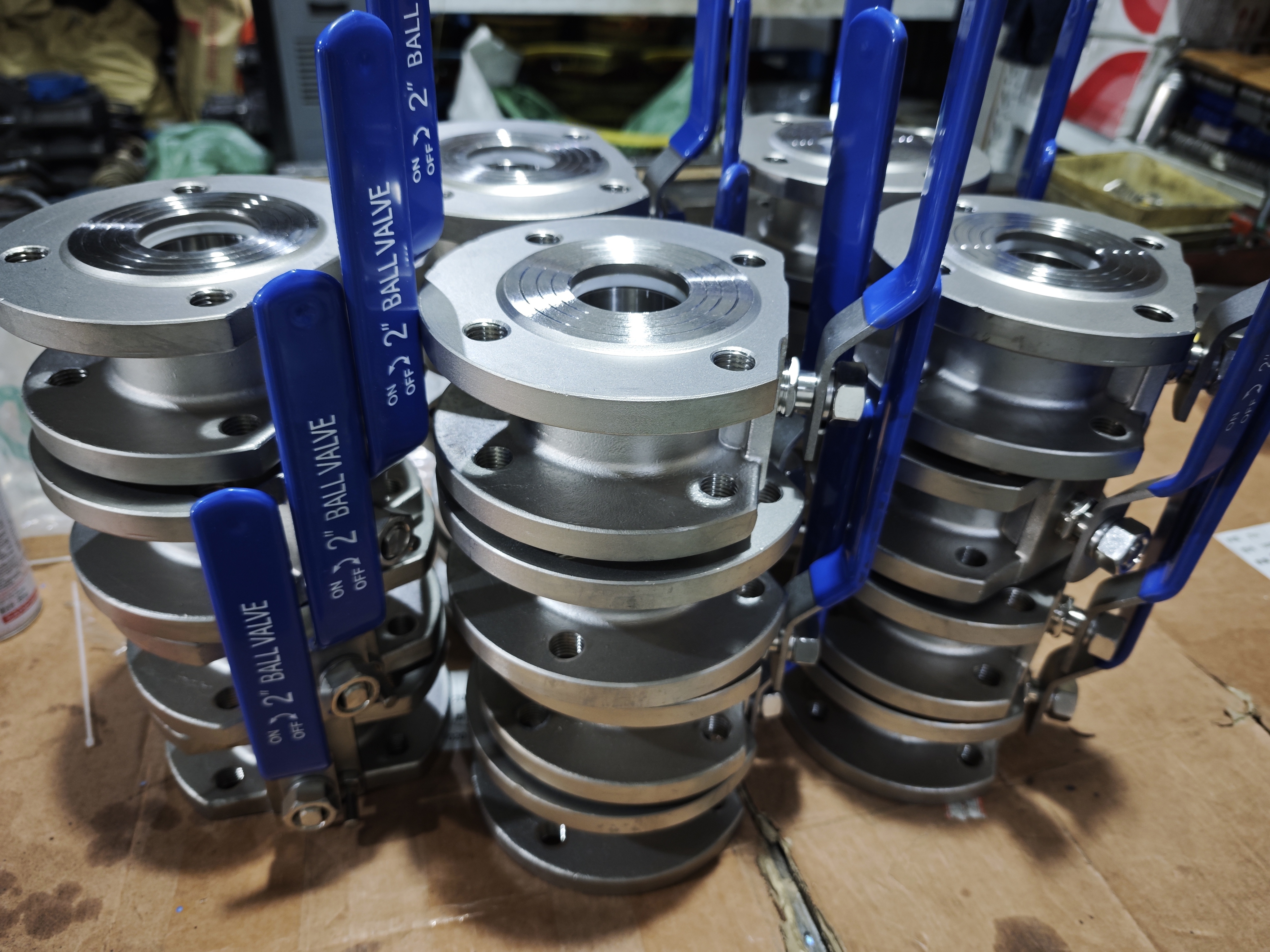

Italian thin-walled ball valve, which is more convenient for replacing parts. Stainless steel and carbon steel ball valve
Italian thin-walled ball valve, which is more convenient for replacing parts. Stainless steel and carbon steel ball valve
Specifications
Model Number :
Q71F-40P
Size Range :
DN15~DN200
Payment Terms :
T/T,D/A,L/C,D/P
Operation :
Handle
Valve Material :
Stainless Steel CF8 CF8M
Product Name :
1pc Ball Valve
Place of Origin :
China
Packaging Details :
Suitable Plywood Cases according to different valves structure
MOQ :
1pc
Delivery Time :
5~25 Work Days
Model :
Q71F-40P
Price :
Negotiation
Pressure :
PN40
Certification :
CE&ISO
Supply Ability :
500pcs/Mon
Connection :
Wafer
Brand Name :
CXDLV
Temperature :
-20°C~350°C
Description

Italian thin-walled ball valve, which is more convenient for replacing parts. Stainless steel and carbon steel ball valve


General Features

Italy Ball Valve

Applicable Standards:
- Design and Manufacturing : GB / T12237 / 1989

- Connection : JB / T79

- Fireproof Test: GB / T13927 - 1992

Size Range:
- DN15 ~ DN200

Nominal Pressure:
- PN40 (4.0 MPa)
Temperature Limit:
- 20 °C ~ 350 °C


Wafer Type ball valves (or called “Italy Super Thin” Type ball valves) are used in the pipeline equipment in the condition of PN1.0~2.5MPa, working temperature of 29~180℃(sealing ring is RPTFE) or 29~180℃(sealing ring is PPL Polyphenylene), to achieve to cut off or connect the medium in the pipeline. The applicable medium, such as water, steamer, oil, Nitric Acid, Acetic Acid, Carbamide, or medium of oxidizability can be applied subject to difference valve material adopted.

Unit:mm
Pressure Size L D D1 D2
PN40 15 35 95 65 45
20 38 105 75 55
25 42 115 85 65
32 50 135 100 78
40 62 145 110 85
50 72 160 125 100
65 95 180 140 120
80 118 195 160 135
100 140 215 180 155
125 195 245 210 185
150 225 280 240 210
200 275 335 295 265



Application

Wafer Ball Valve can be widely used in petroleum, chemical, metallurgy, power station, light industry and other fields to automatically adjust or cut off oil, water, gas and pulp or fibrous fluid.


Strength

1. Blow out proof stem design

2. Full port design

3. ISO5211 direct mounting pad

4. Flange Standard:GB

5. Various sealing materials and carbon steel options

6. Wafer ball valve structure simple, small size, light weight.


Model Selection

Wafer ball valve

Model No Working Pressure
/Mpa		 Applicable Temperature
/℃		 Applicable Medium
Q71F-40P 4.0 PTFE≤150
PPL≤250		 Nitrose
Q71F-25P 2.5 Nitrose
Q71F-40Ti 4.0 Oxidizing Corrosive Medium
Q71F-25Ti 2.5 Oxidizing Corrosive Medium
