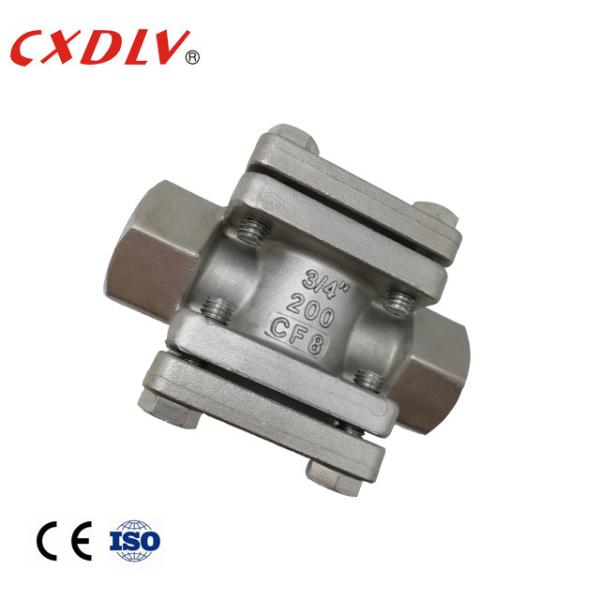

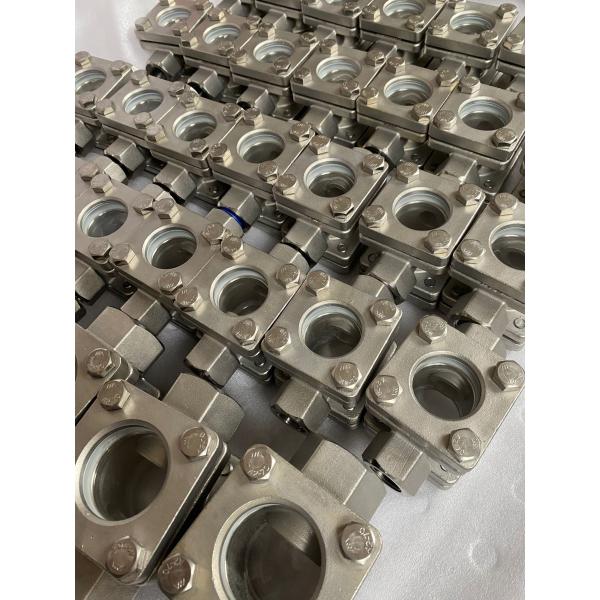

BSP PN16 Stainless Steel Industrial Sight Glass Visual Indication
BSP PN16 Stainless Steel Industrial Sight Glass Visual Indication
BSP PN16 Stainless Steel Industrial Sight Glass Visual Indication
BSP PN16 Stainless Steel Industrial Sight Glass Visual Indication
Specifications
Brand Name :
CXDLV
Model Number :
Sight Glass
Certification :
PED
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Payment Terms :
T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability :
500pcs/Mon
Delivery Time :
5~25 Work Days
Packaging Details :
Suitable Plywood Cases according to different valves structure
Body Material :
CF8M/CF8/A216 WCB/CF3M
Glass :
Borosilicate/Tempered
Seat :
PTFE/NBR
Model :
Threaded Connection
Valve Size :
1/2" ~4"
Temperature :
-20~180℃
Description

Stainless Steel Sight Glass BSP PN16 Visual Indication ​
Product Feature
Flow Indicator Sight Glass
Applicable Standards:
- Connection: Threaded
- Test and Inspection: API598
Size Range:
- DN15~DN40
Pressure Rating:
-1.0Mpa
Temperature Range:
- -20°C~185°C

Sight glass, also called inspection glass, sight port or sight windows is described as a window in a pipe, or sidewalls of boilers, tanks, process chambers or silos for visually observing the presence, flow or the level of a medium. With this sight glass you can check / inspect a device or the entire process.


Sight Glass Overview
When simple visual flow indication will be sufficient we have a sight flow indicator option to suit most applications.
Our sight indicators are ideal for observing and monitoring fluid characteristics such as direction, flow and colour.

Technical Data

BSP PN16 Stainless Steel Industrial Sight Glass Visual Indication

DN H L D
15 60 100 89
20 70 100 98
25 80 115 108


Application
1. Utilities and power
2. Pharmaceuticals
3. Food and beverage
4. Biofuels
5. Wastewater treatment and management
6. And chemical/petrochemical

Model Selection

Product Name Flow Sight Glass Indicator
Connection Flange Threaded
Pressure DIN/JIS/ANSI 0.6Mpa
Material 1)CF8/SS304 2)CF8M/SS316 3)Carbon Steel

BSP PN16 Stainless Steel Industrial Sight Glass Visual Indication
