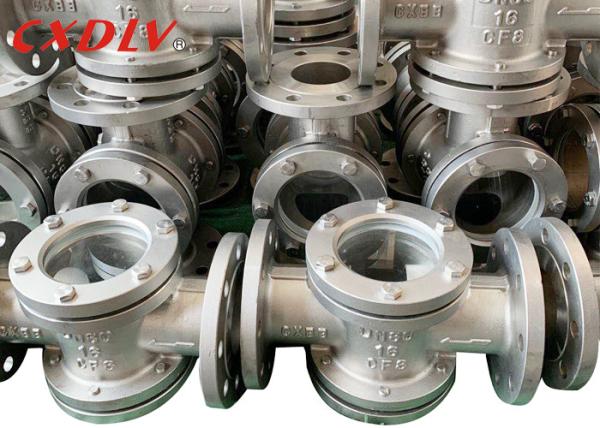

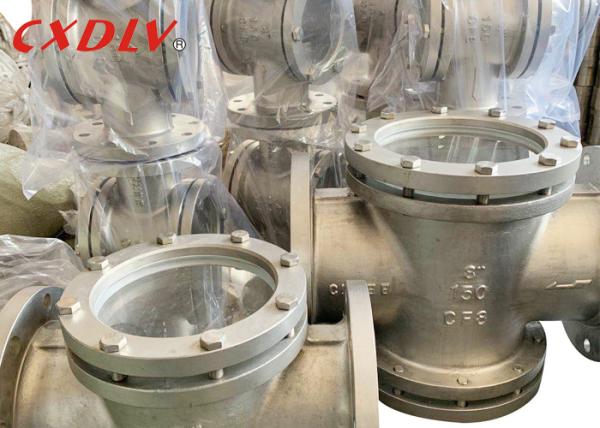

Round Straight CF8M WCB 150LB Stainless Steel Sight Glass
Round Straight CF8M WCB 150LB Stainless Steel Sight Glass
Round Straight CF8M WCB 150LB Stainless Steel Sight Glass
Round Straight CF8M WCB 150LB Stainless Steel Sight Glass
Specifications
Brand Name :
CXDLV
Model Number :
SG
Certification :
CE&ISO
Place of Origin :
Wenzhou,China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Mon
Delivery Time :
7~25days
Packaging Details :
Suitable Plywood Cases according to different valves structure
Connection :
150LB RF
Body Material :
CF8,CF8M,WCB
Gasket :
PTFE
Pressure :
PN16
Size :
DN15~DN300
Description

Round View flange Straight Stainless Steel Sight Glass / high pressure sight glass

Product Feature

Flange Sight Glass

Applicable Standards:
- Design and Manufacturing: ASTM B16.34

- Test and Inspection: API598

Size Range:
- DN15~DN300

Pressure Rating:
- 150LB,300LB
Temperature Range:
- -20°C~150°C

Technical Data

Round Straight CF8M WCB 150LB Stainless Steel Sight Glass

H L D D1 D2
1" 92 160 108 79.5 51
2" 140 230 152 120.5 92
3" 180 310 190 152.5

127
4" 215 350 229 190.5 157.5

Overview

A sight flow indicators is a device installed into a pipe to provide a visual of verifying liquid flow for direction and accurate flow rate. Sight flow indicators allow operators to observe the color and clarity of liquids through a window. A sight flow indicator is a body with one or more viewing windows, usually with gaskets, and a way to mount the indicator to the pipeline, such as flanged, threaded connections. Sight flow indicators are available to fit standard pipe sizes ranging from 1/4-inch to 16-inches and carry ANSI pressure ratings. Sight flow indicators may be applied to almost every phase of movement, whether it is liquid, gas or powder.

Reference

Flange Sight Glass
Standard JIS DIN ANSI
Pressure 10K,20K PN16,PN25,PN40 150LB,300LB
Material CF8,CF8M,WCB
Size DN15~DN200
