High Precision ID Mount Flange Facer Compact For Pressure Vessel Manufacturing
High Precision ID Mount Flange Facer Compact For Pressure Vessel Manufacturing
High Precision ID Mount Flange Facer Compact For Pressure Vessel Manufacturing
High Precision ID Mount Flange Facer Compact For Pressure Vessel Manufacturing
Specifications
Brand Name :
MT Portable Machine
Model Number :
FI14M
Certification :
ISO9001 & CE
Place of Origin :
Wuxi, China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
5-7 days
Price :
1350USD-5400USD
Shipping Dimensions :
80 × 510 × 250 mm
Facing Standar :
ASME B16.5
Facing Types :
Smooth face & Spiral serrated finish
Shipping Weight :
29.0 kg
Description

FI14M ID Mount Flange Facer Application in Pressure Vessel Manufacturing

CASE INTRODUCTION

In 2025, a leading pressure vessel and forging manufacturer in China—long-term supplier for Sinopec, CNPC, CNOOC, and Shenhua Group—faced recurring challenges with small flanges on valves, nozzles, and tanks. These flanges are often exposed to high pressure, corrosion, and frequent handling, which causes scratches, wear, and sealing surface damage. Conventional workshop repairs were inefficient, making on-site machining the only practical solution.

High Precision ID Mount Flange Facer Compact For Pressure Vessel Manufacturing

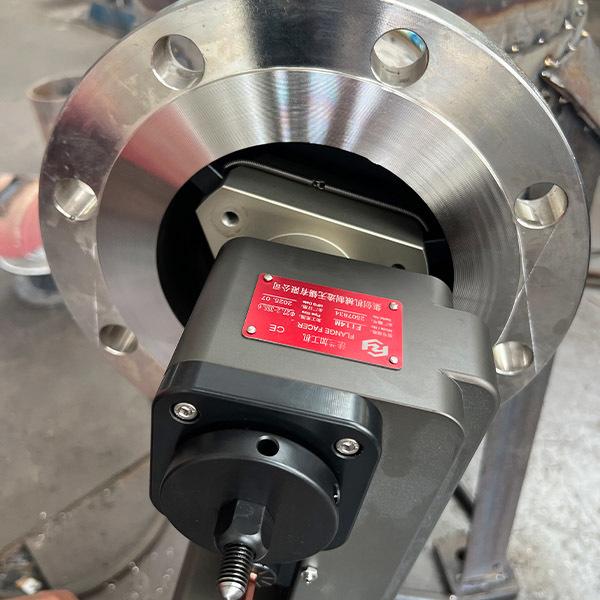

The company had already used MT’s FI26E Flange Facing Machine for more than two years and was impressed by its precision and durability. To enhance its capability in repairing small-diameter flanges, it invested in the FI14M Manual Flange Facing Machine. Compact and lightweight, the FI14M can be quickly installed on small flanges and operated manually with smooth feed control. It consistently delivers spiral grooved finishes that meet international gasket sealing standards. By using this portable tool, the customer successfully restored multiple valve and tank flanges on-site without dismantling equipment—reducing downtime, ensuring sealing reliability, and reinforcing confidence in MT’s machining solutions.

SPECIFICATIONS

Model: FI14M Manual Flange Facing Machine
Facing Diameter Range 1.07" to 14" (27.2–355.6 mm)
ID Mounting Range 1.07" to 10.63" (27.2–270 mm)
Drive Type Manual (no external power required)
Feed Speeds

Fine feed: 0.125 mm/rev (0.005 inch/rev)

ASME B16.5 standard feed: 0.5 mm/rev (0.02 inch/rev)
Minimum Swing Diameter

With knob handle: 22.9" (582 mm)

Without knob handle: 19.5" (495 mm)
Working Weight 9.0 kg
Shipping Weight 29.0 kg
Shipping Dimensions (L×W×H) 680 × 510 × 250 mm (Plastic carry case)

PERFORMANCE AND VALUE DELIVERED

The FI14M Flange Facing Machine delivered outstanding results:

  • Restored small-diameter flange sealing surfaces to industry standards.
  • Ensured safe and reliable operation of valves and tank flanges in pressure vessel manufacturing.
  • Reduced downtime and avoided costly disassembly or replacement.
  • Delivered high precision with smooth manual feed control and stable cutting performance.
  • Reinforced MT Portable Machine’s reputation as a customer-focused on-site machining solution provider.

Its portability, precision, and efficiency proved essential in maintaining production safety, equipment reliability, and operational efficiency for small flange repairs.

KEY INDUSTRY CHALLENGES SOLVED BY FI14M

Sealing surface damage on small flanges

precisely restored sealing faces to ensure proper performance.

High downtime and inefficiency of conventional workshop repairs

on-site machining minimized production interruptions.

Limited access and tight working space

compact, lightweight design allowed easy installation directly on small flanges.

Need for high-precision finishing

manual feed system provided smooth, accurate control for spiral-grooved surfaces.

Reliability concerns in repetitive small flange repairs

consistent performance reinforced customer confidence in MT’s products.

FLANGE FACER MACHINE SELECTION TABLE

Model

Facing Diameter Range

ID/OD Mounting Range

Drive Type

FI14M

1.07" to 14" (27.2–355.6 mm)

1.07" to 10.63" (27.2–270 mm)

Manual

FE12P

0–12" (0–305 mm)

2–17.7" (50–450 mm)

Pneumatic (1.0 kW)

FE12E

0–12" (0–305 mm)

2–17.7" (50–450 mm)

Electric Servo motor (1.0 kW)

FI26P

4.72–27.56" (120–700 mm)

3.78–28.35" (96–720 mm)

Pneumatic (1.0 kW)

FI26E

4.72–27.56" (120–700 mm)

3.78–28.35" (96–720 mm)

Electric Servo motor (1.0 kW)

FI40P

6–40" (153–1000 mm)

5.7–35.8" (145–910 mm)

Pneumatic (1.7 kW)

FI40E

6–40" (153–1000 mm)

5.7–35.8" (145–910 mm)

Electric Servo motor (1.5 kW)

FI60P

12.6–59" (320–1500 mm)

11.4–57" (290–1450 mm)

Pneumatic (3.0 kW)

FI60E

12.6–59" (320–1500 mm)

11.4–57" (290–1450 mm)

Electric Servo motor (3.0 kW)

FI80P

26.34–80" (670–2032 mm)

31.1–74.8" (790–1900 mm)

Pneumatic (3.0 kW)

FI80E

26.34–80" (670–2032 mm)

31.1–74.8" (790–1900 mm)

Electric Servo motor (3.0 kW)
