ID30 Electric Pipe Beveling Machine Internal Mounted Cold Cutting Tool For Small Bore Weld Preparation

PRODUCT DESCRIPTION

The ID30 Electric Pipe Beveling Machine is a precision-engineered, internally mounted cold-cutting system specifically designed for small-diameter pipe and tube end prep. Operating within a range of 0.59" to 1.42" (Φ15–36 mm), this compact tool delivers consistent, burr-free beveling, facing, and counterboring without thermal distortion—ideal for applications demanding code-compliant weld integrity.

Whether deployed in a fabrication shop or for on-site field machining, the ID30’s lightweight frame, self-centering mandrel system, and multiple drive options make it a reliable solution for power generation, petrochemical maintenance, and boiler tube processing.

KEY FEATURES

Cold Cutting Process

Cold machining without heat input prevents heat-affected zones and preserves base material properties.

Compatible with Multiple Materials

Suitable for carbon steel stainless steel and high-alloy pipe materials.

Multi Function Cutting Capabilities

Supports beveling facing counterboring and J prep operations Tool bits are easy to change.

Compact and Portable Design

Starting at only 7.9 kg, the unit features a self-centering clamping system for fast and accurate setup, even in confined or elevated spaces.

Multiple Drive Options Available

Three drive configurations are available including MT electric Bosch electric and pneumatic to meet various site conditions.

SPECIFICATIONS

DRIVE OPTIONS

The ID30 pipe beveling machine is available with three distinct drive system configurations, offering flexible options tailored to various worksite conditions, power availability, and safety requirements. Each configuration ensures reliable and efficient performance for both field and shop applications.

IDE30 – MT Electric Motor Drive

The MT electric drive system features a 1.21 Hp / 0.9 Kw industrial-grade motor designed for stable, long-term operation in factory environments. It operates on 220–240 V at either 50 or 60 Hz and delivers a consistent output speed of 65 rpm. This configuration offers smooth operation and precise torque control, making it ideal for repeatable beveling tasks and high-precision edge preparation.

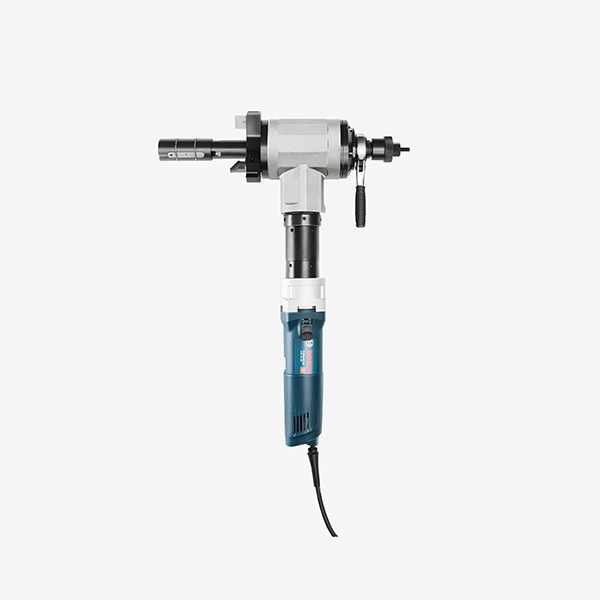

IDB30 – Bosch Electric Motor Drive

The Bosch electric drive system is equipped with a high-performance 1.34 Hp / 1.0 Kw Bosch motor. It supports the same voltage and frequency range as the MT system, while providing enhanced durability and mechanical stability. Running at 48 rpm, it is well-suited for heavy-duty industrial applications or continuous operation in demanding material processing scenarios.

IDP30 – Pneumatic Motor Drive

The pneumatic drive system utilizes a 1.34 Hp / 1.0 Kw air motor, making it ideal for environments where electric power is restricted or explosion-proof operation is required. Operating at 1.3 m³/min @ 0.6 Mpa, this drive is preferred for use in offshore platforms, petrochemical sites, or outdoor installations. It delivers a speed of 66 rpm and features a compact, lightweight design for ease of transport and quick setup.

INDUSTRIES AND APPLICATIONS

Power Generation Industry

Trusted across thermal, nuclear, wind, and hydroelectric power plants, our beveling machines deliver precise weld end prep for critical high-temperature and high-pressure pipework. Their portability and reliability support turbine repair, heat exchanger fabrication, and aging system retrofits during outages.

Oil and Gas Industry

Engineered for the harsh conditions of oil and gas operations—both onshore and offshore—these beveling machines are suited for refineries, platforms, and subsea pipeline work. Their pneumatic drive is ideal for ATEX and explosive zones, cutting various pipe alloys in demanding environments.

Chemical and Petrochemical Plants

These machines are ideal for process piping systems handling acids, solvents, and high-temperature fluids. Their cold-cutting approach guarantees clean, burr-free bevels while avoiding heat-affected zones, preserving pipe integrity and system safety.

Pipeline Construction and Field Maintenance

Ideal for outdoor and remote pipeline installation or emergency repairs, these portable machines perform precise beveling without heat or sparks. Quick setup and cold cutting help reduce risk and ensure reliable joints on-site.

MOUNTING RANGE

TOOLBIT OPTIONS

FREQUENTLY ASKED QUESTIONS

Q1: What pipe sizes and materials can these machines handle?

A: They can process a wide range of pipe sizes made of carbon steel, stainless steel, and various alloys.

Q2: Are these machines safe to use in hazardous environments?

A: Yes. They use cold cutting, so no sparks or heat are generated — no hot work permit needed.

Q3: What power options are available?

A: Pneumatic, electric, and hydraulic drives are available to suit different site needs.

Q4: Can the machines make different bevel types?

A: Yes. They support standard bevels, compound bevels, J-preps, and facing.

Q5: How should I maintain the machine?

A: Keep it clean, lubricate moving parts, and check tool bits regularly. Air models also need dry, clean air.

PIPE BEVELER SELECTION TABLE
