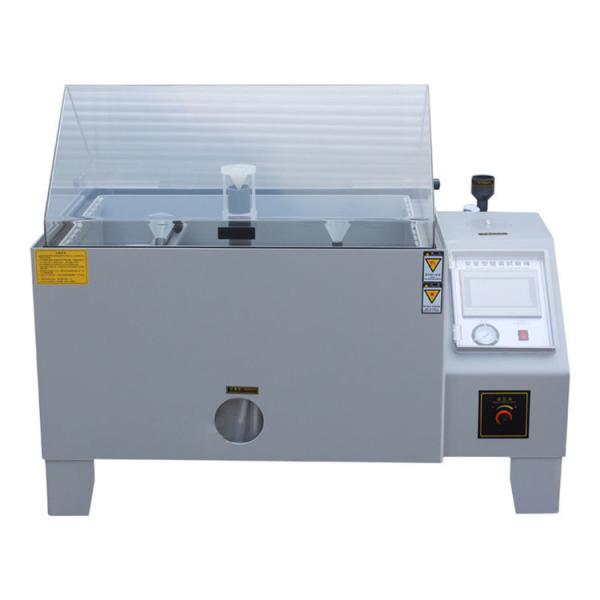

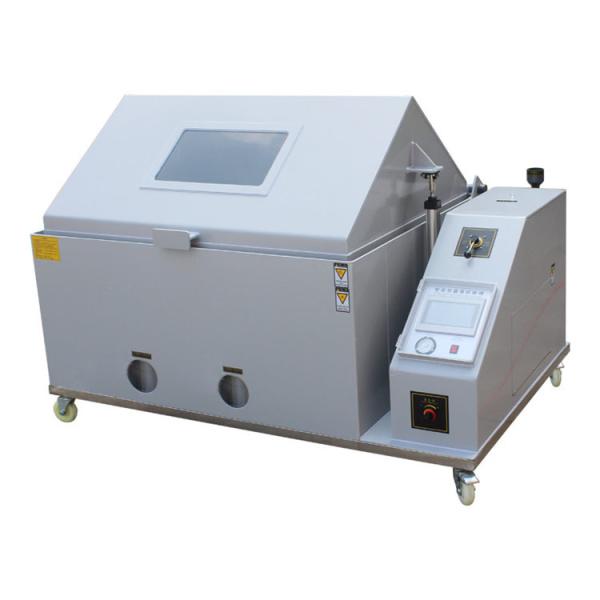

Environmental Test Chamber for Salt Spray Corrosion Testing Equipment X 60 for Zinc Plating Paint Coating

This Salt Spray Test Chamber is designed to meet the most widely recognized corrosion testing standards, including:

• ASTM B117 – Standard Practice for Operating Salt Spray (Fog) Apparatus

• ISO 9227 – Corrosion Tests in Artificial Atmospheres (Salt Spray Tests)

• ISO 7253 – Paints and Varnishes – Determination of Resistance to Neutral Salt Spray

• ASTM G85 – Modified Salt Spray (Fog) Testing

These standards are essential for evaluating corrosion resistance in various materials and coatings.

Purpose & Applications

The Salt Spray Test Chamber is used to assess the durability and corrosion resistance of surface-treated materials, including:

• Coatings & Paints:

  • Saltwater-resistant spray paint

  • Powder coating corrosion testing

  • Anti-corrosive paint evaluation

• Electroplating & Metal Finishes:

  • Zinc plating (salt spray test for galvanized coatings)

  • Stainless steel corrosion resistance

• Other Materials:

  • Organic & inorganic coatings

  • Automotive & marine components

  • Electronic enclosures & hardware

Key Features & Benefits

Precision Testing – Simulates harsh salt-laden environments to predict real-world corrosion performance.
Wide Compatibility – Suitable for paints, electroplating, metal products, and coatings.
Standard Compliance – Meets ASTM, ISO, and other industry standards for reliable results.
Automated Control – Programmable test cycles for consistent and repeatable testing.
Durable Construction – Corrosion-resistant interior for long-lasting performance.

Corresponding standard​ of the Salt Water Spray Test Chamber for CASS, NSS Test:

1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM.B117-97 salt
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB.10587-89 salt spray test
9. CNS.4158 salt spray test
10. CNS.4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test

Purpose :

Salt spray test machine is applicable for the salt spray corrosive test for the protection layer of components , parts , electronic and electrical parts and metal materials and industrial products

Chamber Structure:

1. Salt spray test machine cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample .
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow .
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement .

Main technical parameters :

Specifications:

Salt Spray Test Chamber

1. Durable hard PVC construction
2. Anti-corrosion ,
3. Easy clean & operate
4. 1 year warranty

Features :

1. Low loading threshold for ergonomic loading and unloading..

2. "Easy Open' pneumatically operated canopy, with safety interlock.

3. Dry seal gasket to prevent wetting the operator's clothes.

4. Timed canopy lock and automatic purge of the cabinet interior with fresh air after testing and before the chamber is opened.

5. Easily accessible salt spray atomizer(s) in transparent hard-wearing acrylic, for ease of maintenance.

6. External portable salt solution tank for ease of cleaning. 115L for 300L, 73L for 450L, Chambers and 90L for 1000L Chambers and above.

7. Central viewing window for unimpeded visual access to chamber interior and test material.

8. Base castors and integrated fork lift lift truck runners, for ease of transportation.

9. A free choice of canopy colour.

10. Calibration certificate.

11. Consumables spares kit.

12. Fallout Measuring Kit.
