Specifications
Brand Name :
YUYANG
Model Number :
YYL-001
Certification :
GB/T1040 GB/T1042 ASTM D638 ASTM D790 ISO 178 ISO 527 DIN 53-504 DIN 53-452 ETC, ASTM D903\GB/T16491\GB/T1040\GB/T8808\GB13022\GB/T
Place of Origin :
China
MOQ :
1
Price :
negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
30 Set/Sets per Month
Delivery Time :
5-8 work days
Packaging Details :
export wooden caton
accuracy class: :
0.5 class
measurement range of force value :
2%-100% FS
Maxcapacity :
<1000KN
Control Mode :
Computer Control
Piston Stroke :
250mm
Hanging Column :
100-350mm manually adjustable
Voltage :
220V-240V
Power Unit :
N,Kg,Lb,kN...
Force Relative Error :
± 0.5 %
Software :
Tensile Testing Software
Description

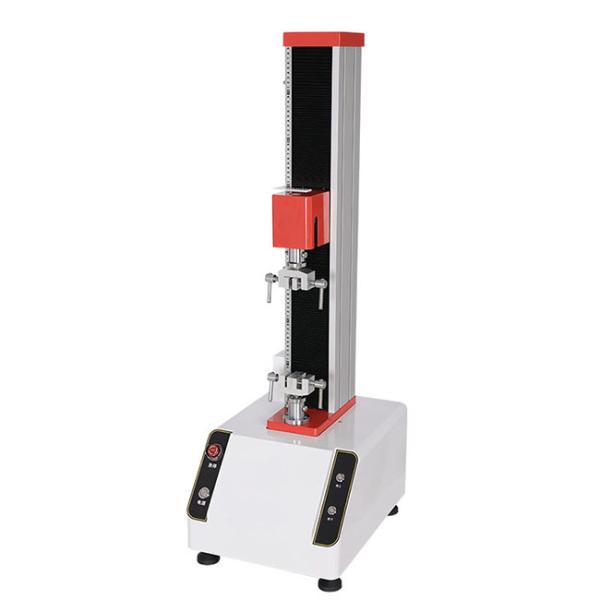

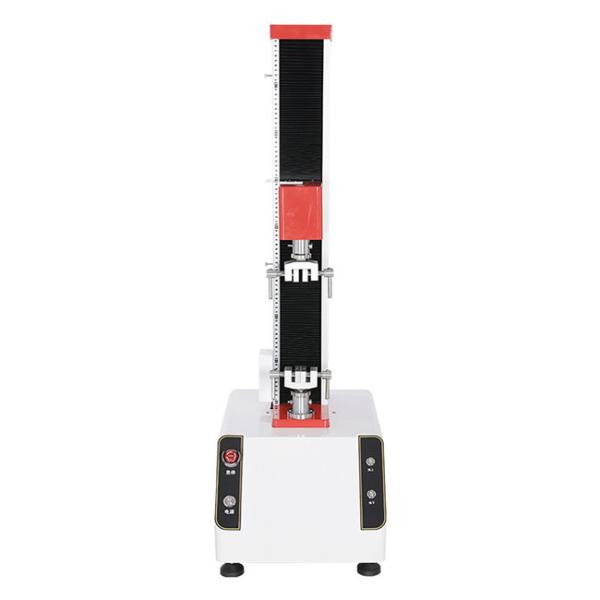

Materials Testing Machine for Tensile Stress Compressive Stress Shearing Force Peeling Force and Elongation Testing

Overview
This precision testing machine performs static mechanical property analysis on metallic, non-metallic and composite materials. It delivers accurate measurements for tensile, compression, bending, shear and peel properties, serving quality control, research and development, and certification needs across multiple industries.

Testing Capabilities

  • Measures tensile properties including ReH, ReL, Rp0.2, Fm and Rm

  • Conducts compression and bending tests

  • Analyzes shear and peel forces

  • Calculates elongation values Rt0.5 through Rt0.7

  • Determines elastic modulus (E)

Material Compatibility

  • Metals: alloys, wires, sheets and structural components

  • Polymers: plastics, rubber and synthetic resins

  • Composites: fibers, laminates and reinforced materials

  • Industrial products: cables, leather goods and adhesives

Standards Compliance
Meets all major international standards including GB, ISO, DIN, ASTM and JIS with automated reporting for certification documentation.

Technical Features

  • High-precision load and displacement measurement

  • Automatic calculation of material properties

  • Wide force range for diverse materials

  • PC-controlled data analysis and reporting

Industry Applications

  • Manufacturing and construction

  • Automotive and aerospace

  • Electronics and packaging

  • Textile and chemical engineering

Features:

Name 0.1-500mm/Min Servo Motor Universal steel wire Tensile Testing Machine 0.5 class
Model YYL-01L, 02L, 05L, 1L, 2L, 5L, 10, 20, 30, 50, YYL-100, YYL-200, 300
Max. test force 300 kN
accuracy class 0.5class
measurement range of force value 2%-100% FS
test force accuracy ±1%
displacement measurement micrometer gauge
speed of test 0.01-500 mm/min
effective testing width 400 mm, 550mm
clamp configuration

1, Equipped fixture can be based on users' needs or customer made.

2, Alternative transducer is available to extend the measuring range.

3, The tensile space can be heighten on users' requirement.
dimension 650*330*1730mm, 760*460*1900mm, 1050*750*2100mm, 1050*900*2400mm

Standard:

GB/T1040 GB/T1042 ASTM D638 ASTM D790 ISO 178 ISO 527 DIN 53-504 DIN 53-452 ETC, ASTM D903GB/T16491GB/T1040GB/T8808GB13022GB/T
