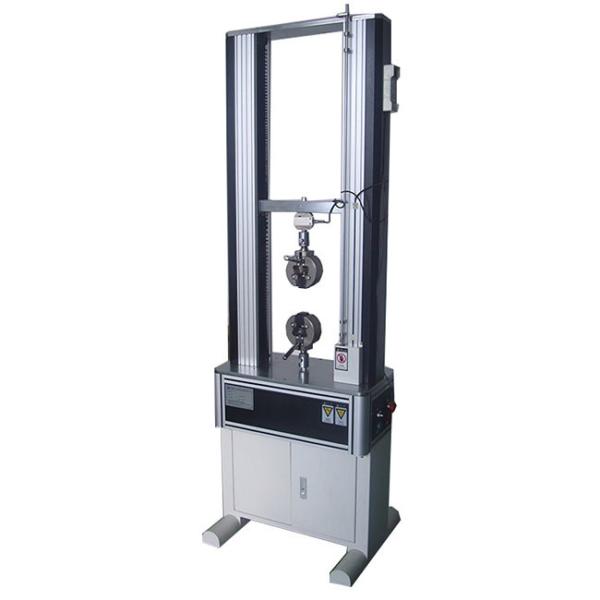

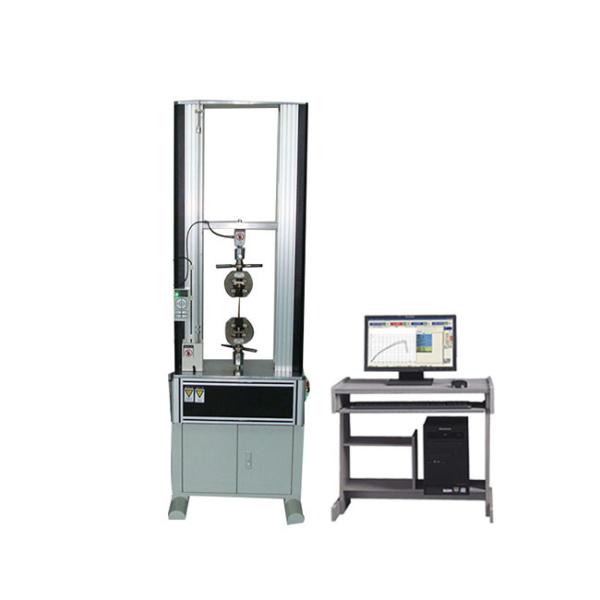

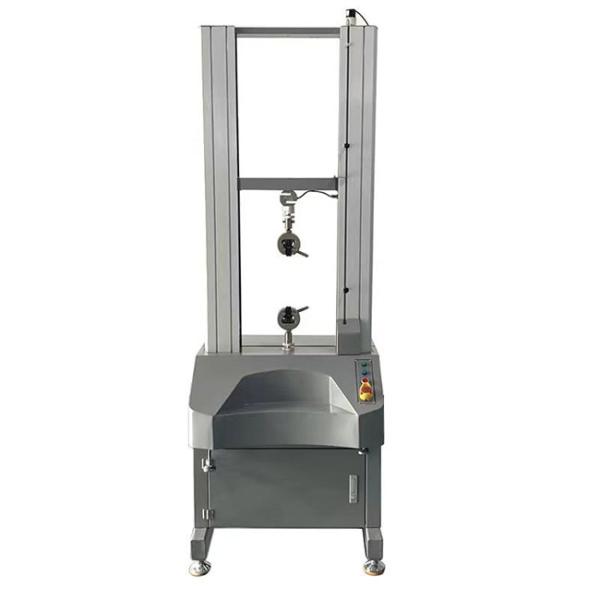

Lab Electronics Tensile Strength Testing Machine 100kn 220v
Lab Electronics Tensile Strength Testing Machine 100kn 220v
Lab Electronics Tensile Strength Testing Machine 100kn 220v
Lab Electronics Tensile Strength Testing Machine 100kn 220v
Lab Electronics Tensile Strength Testing Machine 100kn 220v
Lab Electronics Tensile Strength Testing Machine 100kn 220v
Specifications
Brand Name :
YUYANG
Model Number :
YY005-01
Certification :
QB/T 2918-2007
Place of Origin :
China
MOQ :
1
Price :
$2000
Payment Terms :
Western Union, T/T, L/C,Paypal
Supply Ability :
3pcs /week
Packaging Details :
plywood case
Effective measuring range :
0..4%~100%(0.5 grade)
Measuring accuracy :
Display the value ±1%/Display the value±0.5%
Maximum load :
100KN
Tester resolution :
Max load 1/30000,regardless of inside and outside, constant the resolution
Accuracy of displacement measurement :
Tolerance: ±0.5%/ tolerance: ±0.2%
safety :
Electronic-limit protection
Testing platform moving device :
Fast /slow two speeds to control,can jog
Overload protection :
Overload 10%,automatic protection
Description

2025 Lab Electronics Tensile Strength Testing Machine 100kn 220v

Host structure:
The main machine is connected to the workbench by the upper crossbeam, moving crossbeam, and a rigid floor type frame structure through columns and ball screws. The domestic AC servo motor and AC servo speed control system are installed under the workbench. The AC servo motor drives the double ball screw to rotate through a synchronous toothed belt reduction mechanism, thereby driving the moving crossbeam to move up and down to achieve sample loading and testing.
System composition:
The measurement calculation and automatic control system is composed of high-precision sensors, high-precision electronic extensometers, servo motors, controllers, measurement and control software, HP, Lenovo mainstream brand microcomputers.

Specification:

Force unit N,KN,Kgf,Lbf
Warranty 12 Months
Maximum load 100KN
Work Condition Continuously for 24hours
System Control IGBT
Power Electronic
Feature High Efficiency

Lab Electronics Tensile Strength Testing Machine 100kn 220v

Lab Electronics Tensile Strength Testing Machine 100kn 220v

Decades of research and development strengthen the leading edge of YUYANG in this field, and established as an crucial role in R&D on high quality and high-cost performance of testing equipment. YUYANG's testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, lithium battery, LED, photoelectricity, mobile, plastic and rubber, display, telecommunication, chemical industry, aerospace, building material and product, wire and cable, toys, furniture, textile and fabrix, etc. All YUYANG testing equipment are designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA,CEN and so on.

DONGGUAN YUYANG INSTRUMENT CO.,LTD looks forward to cooperating with customer all over the world.

If you are interested in any of our products or would like to discuss a custom order. Please feel free to contact us. We are looking forward to forming succesful business with new clients around the world in the near future.

Lab Electronics Tensile Strength Testing Machine 100kn 220v

Lab Electronics Tensile Strength Testing Machine 100kn 220v

Lab Electronics Tensile Strength Testing Machine 100kn 220v

Lab Electronics Tensile Strength Testing Machine 100kn 220v

Lab Electronics Tensile Strength Testing Machine 100kn 220v
