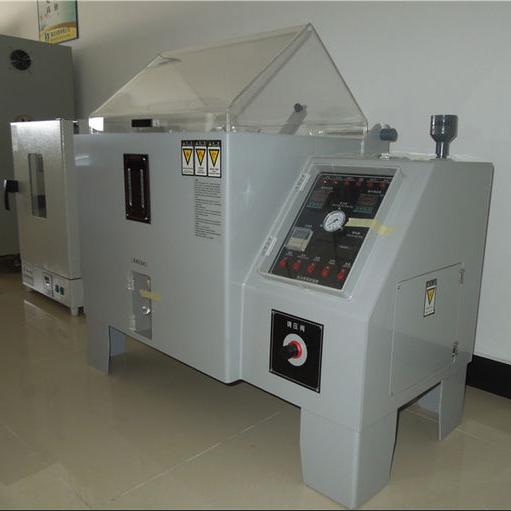

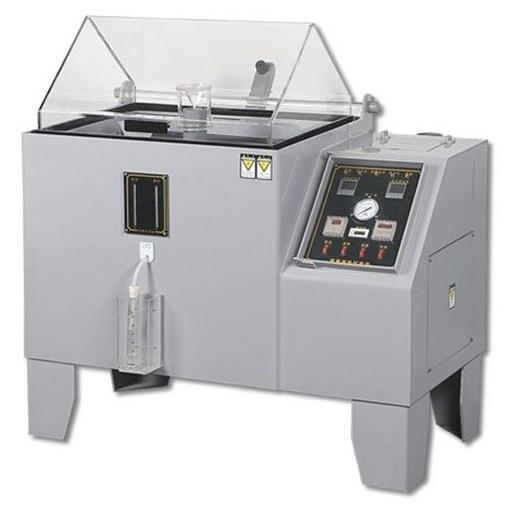

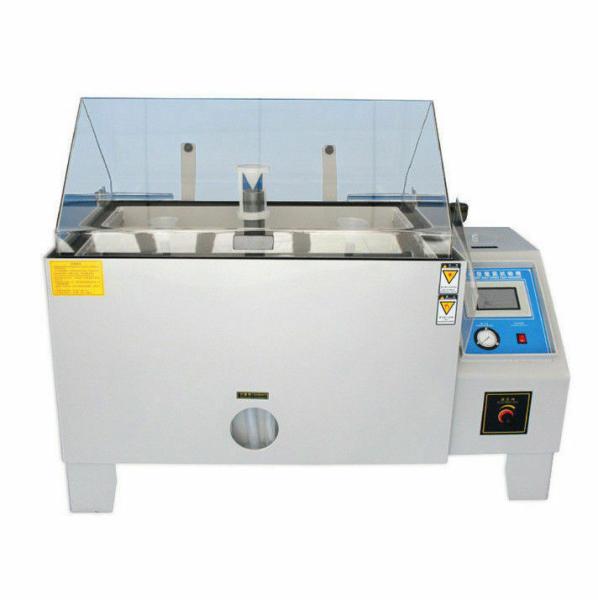

Laboratory Electronic Stainless Steel Salt Spray Corrosion Test Chamber With 220v ASTM Standard Continuity Duty Cycle
Laboratory Electronic Stainless Steel Salt Spray Corrosion Test Chamber With 220v ASTM Standard Continuity Duty Cycle
Laboratory Electronic Stainless Steel Salt Spray Corrosion Test Chamber With 220v ASTM Standard Continuity Duty Cycle
Laboratory Electronic Stainless Steel Salt Spray Corrosion Test Chamber With 220v ASTM Standard Continuity Duty Cycle
Laboratory Electronic Stainless Steel Salt Spray Corrosion Test Chamber With 220v ASTM Standard Continuity Duty Cycle
Laboratory Electronic Stainless Steel Salt Spray Corrosion Test Chamber With 220v ASTM Standard Continuity Duty Cycle
Specifications
Brand Name :
YUYANG
Model Number :
YY-E01
Certification :
ISO: 3768, 3769, 3770; ASTM: 8117, B268
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
2 sets per month
Delivery Time :
15-20 work days
Packaging Details :
Plywood Case
Description

Laboratory Electronic Stainless Steel Salt Spray Corrosion for Test Chamber 220V ASTM Standard Continuity Duty Cycle for Machine

Precision Compliance with Global Standards


Engineered for rigorous adherence to essential corrosion testing protocols:
• ASTM B117 (Operational Parameters)
• ISO 9227 / ISO 7253 (Artificial Atmosphere Testing)
• ASTM G85 (Modified Salt Spray Procedures)
• Additional Compliance: CNS 3627/3385/4159/7669/8886, JIS D0201/H8502/H8610/K5400/Z2371, ISO 3768/3769/3770, ASTM B268/8117


Critical Applications
Validates protective properties across materials and finishes:
• Metallic Coatings: Zinc plating, stainless steel components
• Protective Layers: Water-resistant paints, powder coatings
• Industrial Components: Electronic/electrical parts, metal substrates
• Quality Assurance: Paint adhesion verification, surface treatment inspection


Main technical parameters :


Internal Dimension W*H*D(mm) 1200*1000*500mm
External Dimension W*H*D(mm) 2050*1250*1400mm
Lab Capacity(L) 108
Temperature Range:: 35°C~55°C
Enter./Inter.Material P.V.C&P.P
Compressed Air Pressure(kgf) 1.0-6.0
Weight(kg) 68
Power Source 220V 60/50HZ


Advanced Engineering Features

1. Full-Visibility Design - Transparent canopy + viewing window for real-time specimen monitoring 2. Pressure-Sealed Enclosure - Hydraulic gasket system eliminates fog leakage 3. Precision Atomization System - Tower spray mechanism with ceramic nozzles and dual filtration 4. Continuous Operation Ready - Industrial-grade components support 24/7 testing cycles 5. Ergonomic Access System - Pneumatic safety-interlocked canopy with dry-seal protection 6. Automated Purge Protocol - Timed fresh-air exchange before chamber access 7. Maintenance-Optimized - External 115L solution tank + accessible acrylic atomizers Quality Assurance & Support
• Calibration certificate (NIST-traceable)
• Consumables starter kit included
• Comprehensive 12-month warranty
• Fallout measurement instruments Operational Note


ASTM B117 defines equipment operation standards only - not specimen parameters, test durations, or results interpretation criteria (per ASTM International).


Manufacturer Capabilities
DONGGUAN YUYANG INSTRUMENT provides:
• Global shipping (FOB/CIF/DDP etc.)
• Multi-currency payments (USD/EUR/JPY etc.)
• Multilingual technical support (English/Chinese)
• Custom testing solutions for industrial applications
