Specifications
Brand Name :
YUYANG
Place of Origin :
Guangdong, China
MOQ :
1
Accuracy :
±1%
Power :
2KW
Protection Class :
Ip56
Voltage :
110 V, 220V, 240 V
Gas Burner :
257mm * 4.5mm
Anemometer Accuracy :
0.1m / S
Air Flow :
(5000 ± 500) L / Min
Power Supply :
AC 220V, 50 / 60Hz, 15A
Console Size :
600 (W) * 750 (D) * 1,600 (H) mm
Weight :
1,500kg
Test Chamber Size :
1,000±100(W) *2,000±100(D) * 4,000±100(H) mm
Air Supply Hole :
800±20(W)*400±10(D)
Exhaust Hole :
300±30(W)*1,000±100(D)
Stainless Steel Ladder :
500(W) *3,500(H) mm, 800(W) *3,500(H) mm
Operating Temperature :
10°C to 35°C
Description
IEC 60332-3 Vertical Flammability Tester for Burning Behaviour of Bunched Cables
The IEC 60332-3 Vertical Flammability Tester evaluates the burning behavior of bunched cables and wires according to international standards. This advanced testing equipment measures vertical flame spread using a standardized ignition source within a controlled chamber environment.
Compliance Standards
  • IEC 60332-3-10:2000
  • IEC 60332-3-21 to 25:2000
  • IEEE 383 (IEEE 1202) with burner adjustment
Key Features
  • Test chamber dimensions: 1,000±100(W) × 2,000±100(D) × 4,000±100(H) mm
  • Insulated rear panel with elevated bottom design
  • Air supply opening: 800±20(W) × 400±10(D) mm at 150±10mm from front
  • Exhaust opening: 300±30(W) × 1,000±100(D) mm at rear top corner
  • Integrated flame trap for propane backfire prevention
  • Computer-controlled test recording and condition monitoring
  • Water spray extinguishing system for excessive combustion
  • Programmable standards compliance and 70,000 Btu/h capability
  • Stainless steel ladder options: 500(W) × 3,500(H) mm or 800(W) × 3,500(H) mm
  • Dual standard propane burner and venturi mixture systems
  • Programmable test category selection
Installation Requirements
Electrical 110V AC 60Hz, 230V AC 50Hz, 5A
Ambient Temperature Operating range: 10°C to 35°C
Size 1120 mm (W) × 2200 mm (D) × 5070 mm (H)
Weight 500 kg
Gas Air and propane

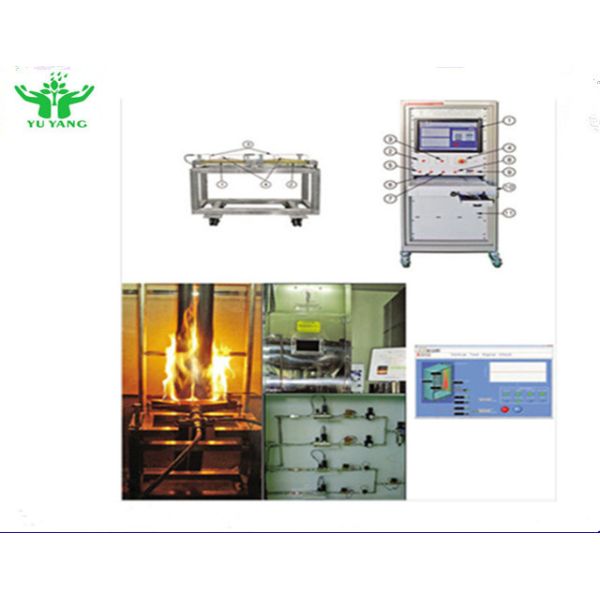

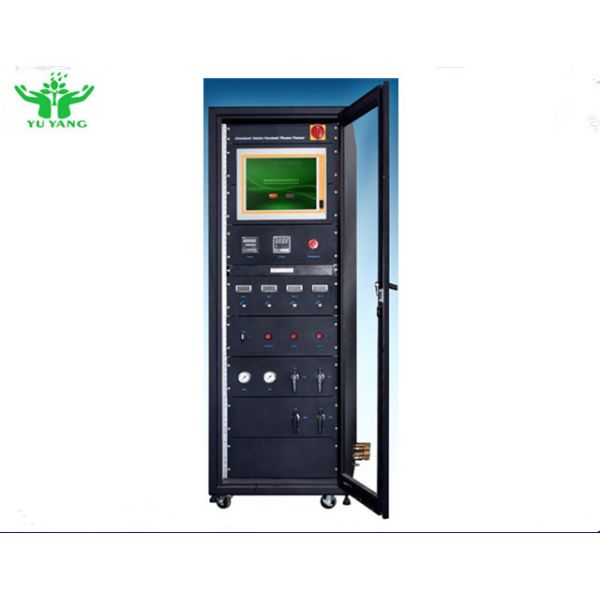

Product Images
IEC 60332-3 Vertical Flammability Tester for Burning Behaviour of Bunched Cables IEC 60332-3 Vertical Flammability Tester for Burning Behaviour of Bunched Cables IEC 60332-3 Vertical Flammability Tester for Burning Behaviour of Bunched Cables IEC 60332-3 Vertical Flammability Tester for Burning Behaviour of Bunched Cables
Company Profile
DONGGUAN YUYANG INSTRUMENT CO., LTD is located in Wanjiang District, Dongguan City, Guangdong Province, China. We are a high-tech enterprise specializing in developing and manufacturing testing equipment including Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.
With decades of research and development experience, YUYANG maintains a leading position in testing equipment innovation, focusing on high quality and cost-effective solutions. Our equipment serves various industries including scientific institutions, colleges, inspection agencies, automotive parts, electronics, electrical components, lithium batteries, LEDs, photoelectric devices, mobile devices, plastics and rubber, displays, telecommunications, chemicals, aerospace, building materials, wires and cables, toys, furniture, and textiles.
All YUYANG testing equipment are designed according to international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA, and CEN.
Certifications
IEC 60332-3 Vertical Flammability Tester for Burning Behaviour of Bunched Cables IEC 60332-3 Vertical Flammability Tester for Burning Behaviour of Bunched Cables
Customer Evaluation
IEC 60332-3 Vertical Flammability Tester for Burning Behaviour of Bunched Cables
Frequently Asked Questions
Who are we?
Based in Guangdong, China since 2018, we serve global markets including Southeast Asia, Eastern Asia, Southern Europe, Domestic Market, Northern Europe, South Asia, North America, South America, Western Europe, Eastern Europe, Middle East, Oceania, and Central America.
How can we guarantee quality?
We provide pre-production samples before mass production and conduct final inspections before shipment to ensure product quality.
What can you buy from us?
Testing Equipment, Tensile Testing Machines, Environmental Test Chambers, Fire Testing Equipment, and Induction Heating Machines.
Why should you buy from us instead of other suppliers?
We are a high-tech enterprise specializing in developing and manufacturing comprehensive testing equipment with decades of R&D experience and focus on quality and cost-effectiveness.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Accepted Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY, CHF
Accepted Payment Types: T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union, Cash, Escrow
Languages: English, Chinese
