Specifications
Brand Name :
YUYANG
Place of Origin :
Dongguan, China
MOQ :
1
Accuracy :
±1%
Power :
500W
Protection Class :
IP57
Voltage :
110 V, 220V
Input voltage :
0 ~ 1000V
Breakdown current :
2A
Maximum power :
5000VA
Flame temperature :
0 ~ 1100 degree
Burner nozzle length :
500mm
Burner nozzle width :
15mm
Holes diameter :
1.32mm
Holes center distance :
3.2mm
Metal rings diameter :
150mm
Cross-sectional diameter :
10 ± 2mm
Timer range :
0 ~ 999min
Description
IEC 60331, BS 6387, EN 50200 Electric Cables Circuit Integrity Burn Test Apparatus
This fire-resistant cable testing apparatus evaluates circuit integrity under flame conditions, ensuring cables maintain safe operation during fire exposure. Designed for fire-resistant cables and optical cables, the system provides reliable testing according to international standards.
User Experience Benefits
  • Stainless steel construction provides excellent resistance to smoke and gas corrosion

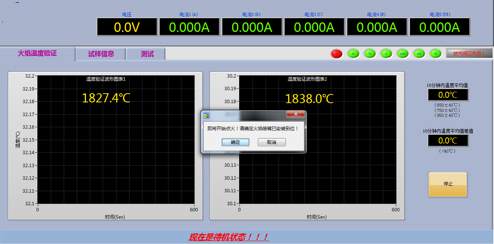

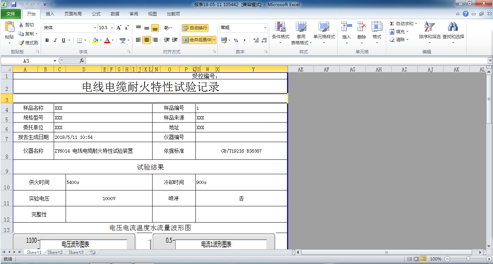

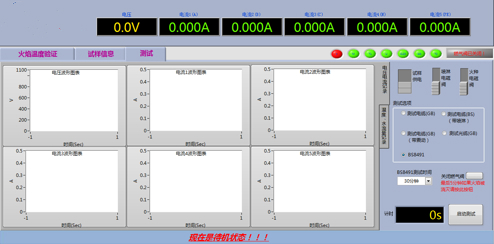

  • Highly automated control system with automatic ignition, digital temperature and time displays for easy observation and recording
  • Stable and reliable performance for consistent test results
Compliance Standards
  • IEC 60331 - Tests for electric cables under fire conditions - Circuit Integrity
  • GB/T19216 - Test for electric or optical fibre cables under fire conditions - Circuit Integrity
  • BS 6387 - Test method for resistance to fire of cables required to maintain circuit integrity
  • EN 50200 - Method of test for resistance to fire of unprotected small cables for use in emergency circuits
Key Features
  • All fixtures constructed from durable stainless steel
  • Belt-type propane blowtorch with Venturi mixer, featuring 500mm length, 15mm width burner nozzle
  • Staggered three-row burning holes with 1.32mm diameter and 3.2mm center distance
  • Specimen holder with clamping mechanism for secure sample fixation and longitudinal heat transfer
  • Cable samples supported by two metal rings with 150mm inner diameter and 300mm spacing
  • Optimal burner positioning: ≥200mm from burning bottom, ≥300mm from tank wall
Combustion System Specifications
  • Independent standard electrical control platform
  • Intelligent detection system automatically alarms and extinguishes fire source upon sample short circuit
  • 2A fuse current in experimental circuit
  • Adjustable sample power application: AC 100V ~ 1000V
  • Programmable fire duration with standard recommendation of 90 minutes
Technical Parameters
Voltage AC 380V 3-phase, 50/60Hz, 30A
Input Voltage 0 ~ 1000V adjustable
Breakdown Current 2A
Maximum Power 5000VA
Timer 0 ~ 999 minutes
Flame Temperature 0 ~ 1100°C adjustable
Test Load Current 0.25A adjustable
