Fabric Breaking Universal Tensile Strength Compression Testing Machine
Fabric Breaking Universal Tensile Strength Compression Testing Machine
Fabric Breaking Universal Tensile Strength Compression Testing Machine
Fabric Breaking Universal Tensile Strength Compression Testing Machine
Specifications
Brand Name :
YUYANG
Model Number :
YYT015
Certification :
QB/T 2918-2007
Place of Origin :
China
MOQ :
1
Price :
$1100
Payment Terms :
Western Union, T/T, L/C,Paypal
Supply Ability :
3pcs /week
Packaging Details :
plywood case
Unit (switchable) :
N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2
Weight :
38-42KG
Load accuracy :
±0.25%
Speed accuracy :
±0.5%
Power Supply :
220 V
Testing Method :
tensile; peel strength
Country :
China
Unit Switchover :
G, KG, N, LB
Warranty :
1 year
Description
Fabric Breaking Universal Tensile Strength Compression Testing Machine

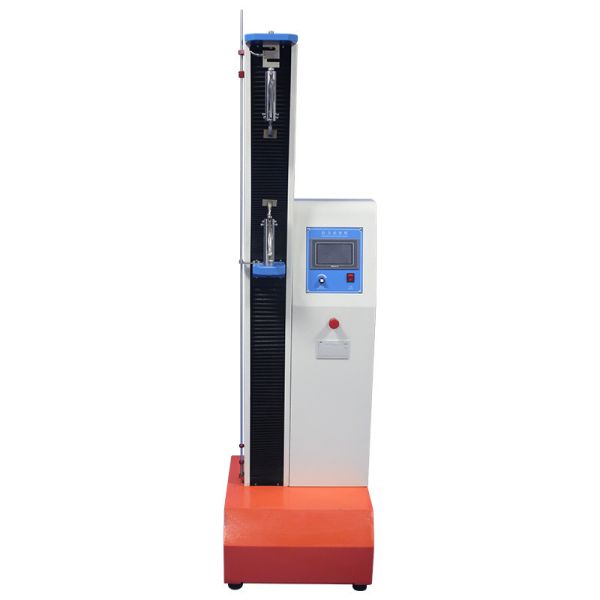

The YUYANG 1KN 3KN 5KN Single Column Computer Automatic Electronic Rubber Universal Material Tensile Testing Machine is designed for comprehensive material testing applications. This single column computerized tensile testing system is ideal for evaluating both metal and non-metallic materials including rubber, plastic, wire and cable, optical fiber and cable, safety belts, leather belt composites, plastic profiles, waterproof materials, and various metal components.
Key Applications
  • Rubber and plastic materials testing
  • Wire, cable, and optical fiber analysis
  • Safety belt and leather composite evaluation
  • Plastic profile and waterproof material testing
  • Metal components including steel, copper, and non-ferrous metals
  • Comprehensive testing capabilities: stretching, compression, bending, shearing, peeling, tearing, and extension measurements
Technical Specifications
Force Units Kg, N, Lb, g
Extension Units mm, cm, in, %
Capacity Selection 1, 2, 5, 10, 20, 50, 100, 200, 500kg
Load Element Accuracy Less than 0.5%
Force Resolution 1/200000
Maximum Test Stroke 650mm standard (1000mm extended type, excluding jig)
Effective Test Space Diameter range 120mm
Test Speed Range Adjustable 0.1-1000mm/min
Safety Stop Modes Upper and lower limit safety setting, emergency stop key, program force and elongation setting, test piece breakpoint sensing
Warranty 1 year
About YUYANG Instruments
DONGGUAN YUYANG INSTRUMENT CO., LTD is a high-tech enterprise located in Wanjiang District, Dongguan City, Guangdong Province, China. With decades of research and development experience, YUYANG has established itself as an industry leader in testing equipment, recognized for high quality, reliability, and excellent cost performance.
Product Specializations
  • Fire testing equipment
  • Building material fire testers
  • Wire and cable fire testers
  • Environmental test chambers
  • Textile testing instruments
  • Toys testing equipment
Industry Applications
Our testing solutions serve diverse sectors including scientific research institutions, universities, inspection agencies, automotive parts, electronics, electrical products, lithium batteries, LEDs, photoelectric devices, mobile phones, plastics and rubber, displays, telecommunications, chemicals, aerospace, building materials, wire and cable, toys, furniture, textiles, and fabrics.
Quality Standards
All YUYANG testing equipment complies with major international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA, CEN, and others.
YUYANG looks forward to cooperating with customers worldwide. Contact us to discuss your testing requirements or customized solutions. We are committed to building long-term, successful partnerships with clients globally.
