Microcomputer Electrical Porcelain Insulator Horizontal Universal Tensile Testing Machine
Microcomputer Electrical Porcelain Insulator Horizontal Universal Tensile Testing Machine
Specifications
Brand Name :
YUYANG
Model Number :
YYD100
Certification :
QB/T 2918-2007
Place of Origin :
China
MOQ :
1
Price :
$1100
Payment Terms :
Western Union, T/T, L/C,Paypal
Supply Ability :
3pcs /week
Packaging Details :
plywood case
Unit (switchable) :
N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2
Max Load :
100kn
Load accuracy :
±0.25%
Speed accuracy :
±0.5%
Net Weight :
550kg
Testing Method :
tensile; peel strength
Country :
China
Unit Switchover :
G, KG, N, LB
Warranty :
1 year
Description
Microcomputer Electrical Porcelain Insulator Horizontal Universal Tensile Testing Machine
The YYD100 Microcomputer Electrical Porcelain Insulator Horizontal Universal Tensile Testing Machine represents the latest generation of microcomputer-controlled electronic universal testing equipment. This advanced system is engineered for comprehensive mechanical performance testing of metals, non-metals, and composite materials.
Key Functions and Features
  • Microcomputer closed-loop control system for precise operation
  • Wide and accurate loading speed and force measurement range
  • High precision and sensitivity in load and displacement measurement
  • Beautiful design with convenient operation and stable, reliable performance
  • Low noise, high efficiency, and pollution-free operation
  • Wedge-shaped translational structure with manual rotary clamping
  • Sample clamping without additional force application
  • Convenient, reliable clamping that prevents slippage
Applications
Ideal for manufacturing industries including metals, adhesives, pipes, profiles, aerospace, petrochemical, waterproof materials, wires and cables, textiles, fibers, rubber, ceramics, food, medical packaging, geotextiles, films, wood, paper, and quality supervision departments. Also suitable for teaching demonstrations in colleges and universities.
Technical Specifications
Parameter Specification
Maximum Load 100 kN
Accuracy Grade 1
Testing Range 2% - 100% F.S (Max Load)
Maximum Tensile/Compression Space 650 mm
Maximum Test Width 400 mm
Displacement Control Speed Range 0.001 - 500 mm/min
Measuring Accuracy Better than ±1% of Indicator
Resolution of Effort 1/300,000 of Full Scale
Displacement Accuracy ±1%
Displacement Error Within ±1% of Indicator
Deformation Resolution 0.001 mm
Deformation Relative Error Within ±1%
Host Size (L×W×H) 815 × 500 × 1975 mm (Customizable)
Net Weight 550 kg
Power Supply Single-phase, 220V, 50Hz
Tensile Test Flat Jaw Range 0-7 mm, 7-14 mm, 14-20 mm
Tensile Test Round Jaw Range 4-9 mm, 9-14 mm, 14-20 mm
Power 1.5 kW
Product Configuration
Test Accessories

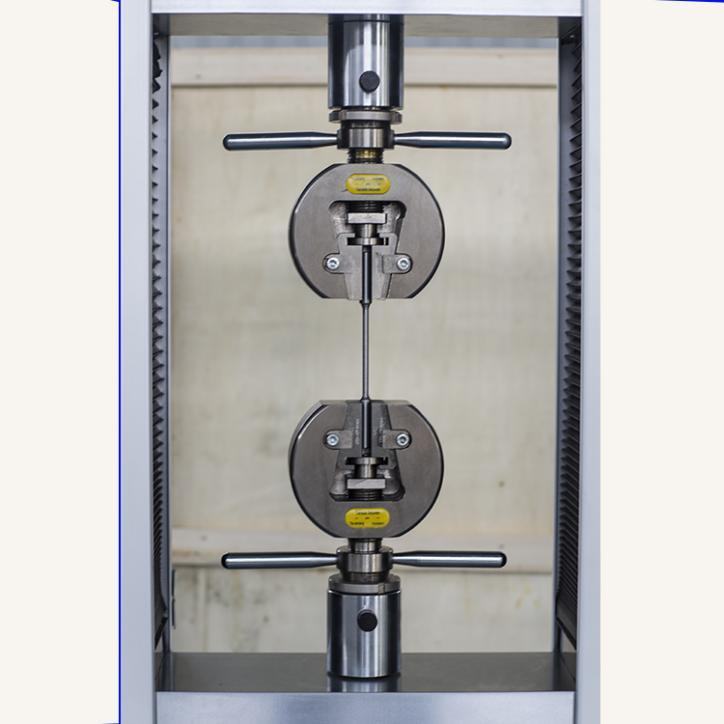

  • Tensile Fixture Microcomputer Electrical Porcelain Insulator Horizontal Universal Tensile Testing Machine

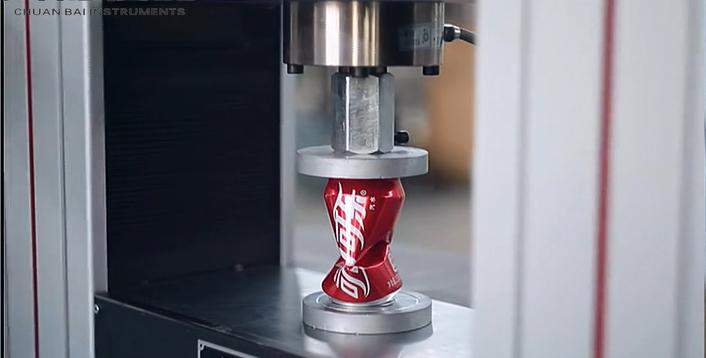

  • Compression Fixture Microcomputer Electrical Porcelain Insulator Horizontal Universal Tensile Testing Machine

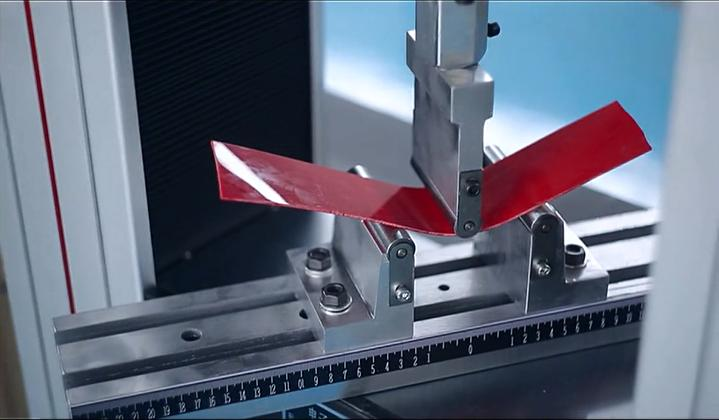

  • Point Bending Fixture (Optional) Microcomputer Electrical Porcelain Insulator Horizontal Universal Tensile Testing Machine
Documentation and Support
  • Operating instructions including user manual, packing list, warranty certificate, and factory inspection certificate
  • Software usage instructions: 1 paper version and 1 software backup CD
  • Random data documentation for original purchased components (computers, printers, etc.)
