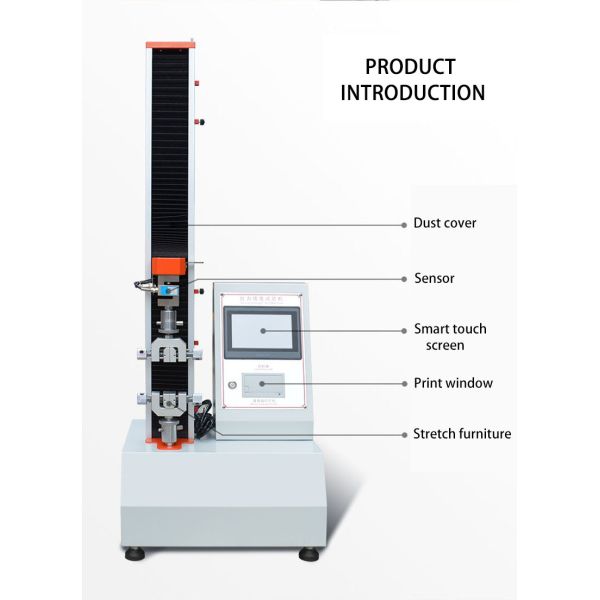

High Precision Tensile Testing Machine For Packaging
High Precision Tensile Testing Machine For Packaging
High Precision Tensile Testing Machine For Packaging
High Precision Tensile Testing Machine For Packaging
High Precision Tensile Testing Machine For Packaging
High Precision Tensile Testing Machine For Packaging
Specifications
Brand Name :
YUYANG
Model Number :
YYT015
Certification :
QB/T 2918-2007
Place of Origin :
China
MOQ :
1
Price :
$1100
Payment Terms :
Western Union, T/T, L/C,Paypal
Supply Ability :
3pcs /week
Packaging Details :
plywood case
Unit (switchable) :
N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2
Load resolution :
1/500,000
Load accuracy :
±0.25%
Speed accuracy :
±0.5%
Power Supply :
220 V
Testing Method :
tensile; peel strength
Country :
China
Unit Switchover :
G, KG, N, LB
Customized support :
OEM
Description
High Precision Tensile Testing Machine For Packaging
This high-precision tensile testing machine features advanced force measurement sensors with exceptional accuracy, stable loading performance, and extended service life. Equipped with an LCD display and professional software, it provides real-time test curve data and comprehensive test reports for efficient testing operations.
Testing Principle
The processed sample is secured between two fixture chucks. When the instrument is activated, the chucks move relative to each other while the force sensor on the movable chuck collects force value changes. The built-in displacement sensor tracks displacement changes to calculate tensile, peeling, heat sealing, and tearing performance indicators.
Key Features
  • Flexible testing capabilities for tensile, peeling, heat sealing, and tearing tests
  • Multi-parameter variable settings for width, speed, thickness, and clamping distance
  • High sampling rate (50 times/second) for accurate and reliable test data
  • Three-level safety protection with emergency stop switch
  • Imported core components for high precision and long service life
  • LCD screen display for test data and operational status monitoring
  • Fully automatic operation with complete safety protection functions
High Precision Tensile Testing Machine For Packaging
Applications
Suitable for mechanical property testing of various materials including plastic films, paper-aluminum-plastic composite films, soft elastic materials, rubber sheets, adhesive tapes, adhesives, paper, and non-woven fabrics. Complies with national technical supervision department requirements and serves quality inspection, pharmaceutical inspection, research, packaging, film, food, pharmaceutical, and daily chemical industries.
About YUYANG Instrument
DONGGUAN YUYANG INSTRUMENT CO., LTD is a high-tech enterprise specializing in fire testing equipment, building material testers, wire and cable testers, environmental test chambers, and various testing instruments. With decades of research and development experience, YUYANG maintains industry leadership in delivering high-quality, cost-effective testing solutions compliant with international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, and others.
