Factory High Sensitivity Walkthrough Metal Detector Gate
Factory High Sensitivity Walkthrough Metal Detector Gate
Factory High Sensitivity Walkthrough Metal Detector Gate
Factory High Sensitivity Walkthrough Metal Detector Gate
Factory High Sensitivity Walkthrough Metal Detector Gate
Factory High Sensitivity Walkthrough Metal Detector Gate
Factory High Sensitivity Walkthrough Metal Detector Gate
Factory High Sensitivity Walkthrough Metal Detector Gate
Specifications
Brand Name :
YUYANG
Model Number :
YY200
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
$448
Payment Terms :
T/T
Supply Ability :
100 Pcs Per Month
Detection program :
99-level sensitivity adjustment, capable of meeting the needs of different scenarios
Personnel throughput rate :
more than 40 people per minute
Power supply :
220V AC, 50/Hz
Power consumption :
35W
Working environment :
-10℃ to 45℃, ≤ 95% RH
Channel size :
200 (height) * 70 (width) * 50 (depth) CM
Overall size :
222 (height) * 80 (width) * 70 (depth) CM
Packaging size :
Door panel: 230*72*25CM (2 pieces per box)
Mainframe box :
78*47*28CM (1 unit per box)
Net weight :
45kg per set; Gross weight: 55kg per set
Description
Factory High Sensitivity Walkthrough Metal Detector Gate
Factory High Sensitivity Walkthrough Metal Detector Gate
The Model 200 is an economical and practical walk-through security detector designed for indoor inspections. Featuring high-brightness LED alarm indicators on aluminum alloy columns with matching light strips that display alarm locations, this detector combines elegant styling with advanced functionality. An electromagnetic field within the door frame triggers alarms when individuals carrying metal objects pass through, accurately detecting concealed metals in clothing, handbags, and suitcases.
This security solution effectively identifies various controlled items including knives, weapons, metal products, electronic devices, and other metal-bearing objects while pinpointing their specific locations on the body. Primarily used for theft prevention and security checks in factories, schools, exhibition halls, and manufacturing facilities, it serves as an essential tool for maintaining security protocols.
Key Features & Capabilities

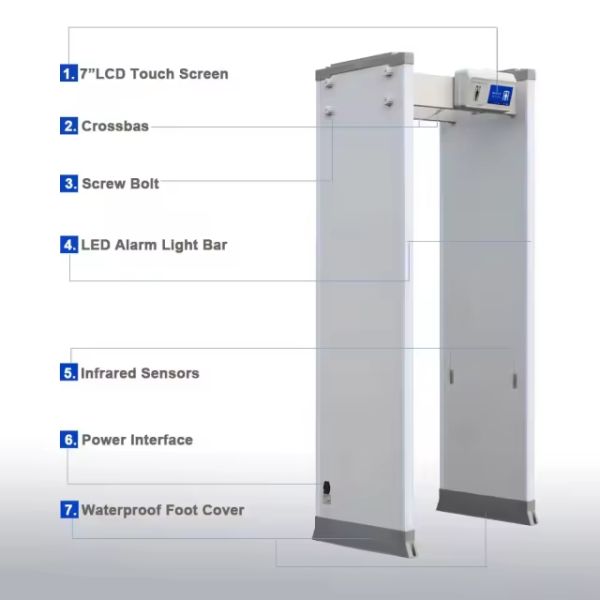

  • Zone Positioning: Six overlapping detection areas with high-brightness LED indicators at human body height for precise metal object location identification
  • 360° Detection: Four infrared transmitters and receivers ensure comprehensive coverage with no blind spots
  • Adjustable Sensitivity: 0-256 sensitivity levels per zone, eliminating interference from common objects like zippers and belt buckles
  • Digital Control: Microprocessor technology provides strong anti-interference capabilities, automatic people counting, and alarm triggering
  • Scalable Deployment: Operates independently or multiple units can be connected in parallel (minimum 10cm spacing) for high-traffic areas
  • Password Protection: Working parameters secured with password protection to prevent unauthorized modifications
Technical Standards & Certifications
  • EU CE Certified product
  • Complies with GB 15210-1994 national standard for through-type metal detection gates
  • Meets Ministry of Public Security safety and quality standards for electronic security products
  • Personal safety: NILECJ-0601 standard compliant
  • Radiation safety: EMC electromagnetic radiation standard compliant
Applications
Ideal for security screening in factories, schools, exhibition halls, and manufacturing facilities - particularly effective in hardware and electronics manufacturing environments for theft prevention and controlled access.
