Specifications
Brand Name :
YUYANG
Model Number :
YYT001
Certification :
CE ISO
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
5 sets per month
Delivery Time :
5-30 work days
Packaging Details :
Plywood Case
Protection Class :
IP55
Heat flux meter accuracy: :
± 0.2Kw / m2
Heat flux measurement range: :
(0-15) Kw / m2
Flame height: :
60 ~ 120mm adjustable
Power supply: :
AC 220V,50HZ
Description

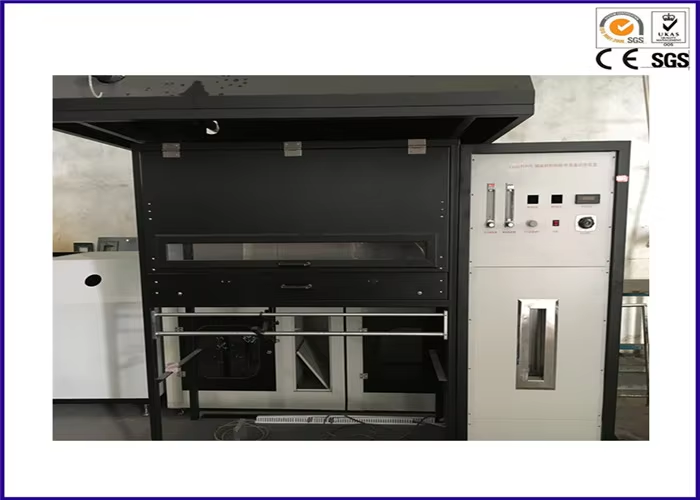

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus
This professional testing machine measures the critical radiant flux and flame spread characteristics of flooring materials under controlled thermal exposure conditions.
Product Overview
The ISO 9239 Radiant Flooring Panel test is the fundamental method for evaluating flooring materials' reaction to fire in the Euroclass system. The apparatus assesses flame spread on samples exposed to radiant heat ignition, simulating fire conditions that radiate from one room to adjacent spaces through door openings.
Compliance Standards
This versatile testing apparatus supports multiple international standards including:
  • GB/T 11785 - Flooring combustion performance measurement with radiant heat source
  • ISO 9239-1:2002 - Determination of burning behavior using a radiant heat source
  • ASTM E648 - Critical radiant flux of floor-covering systems
  • ASTM E970 - Critical radiant flux of exposed attic floor insulation
  • NFPA 253 - Critical radiant flux of floor covering systems
  • DIN 4102-14 - German standard for fire behavior of building materials
Key Features
  • Insulated test chamber with calcium silicate insulation board and temperature-resistant observation window
  • Stainless steel sample support assembly on sliding platform for safe and easy loading
  • Gas-fuelled radiant panel inclined at 30° directing heat at horizontally mounted specimens
  • Radiant energy flux distribution from 1.1 kW/m² to 10.9 kW/m²
  • Complete calibration system with dummy specimen, holder, and heat flux meter

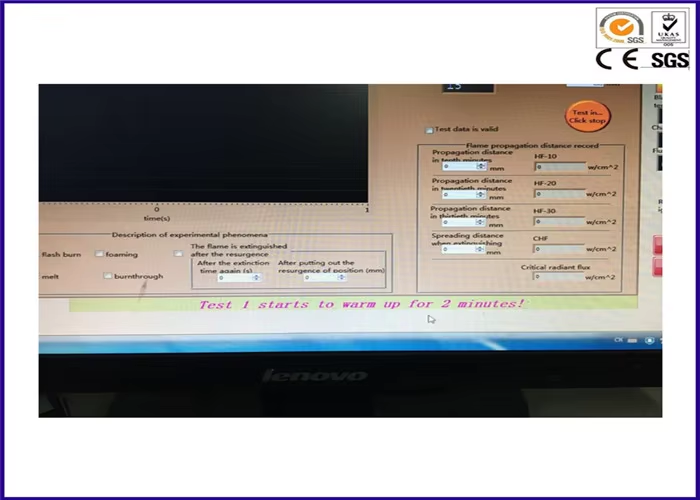

  • Automatic measurement of burned distance converted to critical radiant flux values
  • Heat flux meter range: 0-50 kW/m² with surface emissivity ε=0.95±0.05
  • Integrated smoke measurement system compliant with DIN 50055
  • Centralized control rack for convenient operation and monitoring
  • Automatic ignition system with safety cut-out protection
  • Automatic T-type ignition burner movement
  • Stainless steel hood with dedicated smoke measurement ports
Installation Requirements
Parameter Specification
Electrical Supply 230 volts nominal, 10 Amps
Ambient Temperature Operating range: 10°C to 35°C
Gas Supplies Propane and air compressor
Product Images
ISO 9239-1 ASTM E 846 Compliant Flooring Radiant Heat Flux Test Apparatus with Adjustable Flame Height 60-120mm and 0-15 Kw/m2 Heat Flux Measurement ISO 9239-1 ASTM E 846 Compliant Flooring Radiant Heat Flux Test Apparatus with Adjustable Flame Height 60-120mm and 0-15 Kw/m2 Heat Flux Measurement ISO 9239-1 ASTM E 846 Compliant Flooring Radiant Heat Flux Test Apparatus with Adjustable Flame Height 60-120mm and 0-15 Kw/m2 Heat Flux Measurement ISO 9239-1 ASTM E 846 Compliant Flooring Radiant Heat Flux Test Apparatus with Adjustable Flame Height 60-120mm and 0-15 Kw/m2 Heat Flux Measurement ISO 9239-1 ASTM E 846 Compliant Flooring Radiant Heat Flux Test Apparatus with Adjustable Flame Height 60-120mm and 0-15 Kw/m2 Heat Flux Measurement ISO 9239-1 ASTM E 846 Compliant Flooring Radiant Heat Flux Test Apparatus with Adjustable Flame Height 60-120mm and 0-15 Kw/m2 Heat Flux Measurement
Manufacturer Information
DONGGUAN YUYANG INSTRUMENT CO., LTD is located in Wanjiang District, Dongguan City, Guangdong Province, China - a region known for its industrial prosperity and convenient transportation infrastructure.
As a high-tech enterprise, we specialize in developing and manufacturing comprehensive testing equipment including:
  • Fire Testing Equipment
  • Building Material Fire Testers
  • Wire and Cable Fire Testers
  • Environmental Test Chambers
  • Textile Testing Equipment
  • Toys Testing Equipment
With decades of research and development experience, YUYANG has established itself as a leading provider of high-quality, cost-effective testing solutions. Our equipment serves diverse industries including scientific institutions, colleges, inspection agencies, automotive, electronics, electrical, lithium battery, LED, photoelectric, mobile communications, plastics, rubber, display technology, telecommunications, chemicals, aerospace, building materials, wire and cable, toys, furniture, and textiles.
All YUYANG testing equipment is designed in compliance with international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA, and CEN.
We welcome inquiries about our products and custom order discussions. Contact us today to explore successful business partnerships with clients worldwide.
