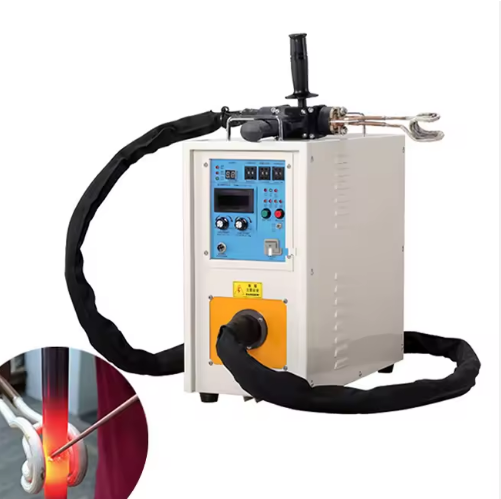

Touchscreen Frequency Induction Heating Portable 200 Kw LGBT Wire Continuous Annealing Machine With Induction Heating Machine
Touchscreen Frequency Induction Heating Portable 200 Kw LGBT Wire Continuous Annealing Machine With Induction Heating Machine
Touchscreen Frequency Induction Heating Portable 200 Kw LGBT Wire Continuous Annealing Machine With Induction Heating Machine
Touchscreen Frequency Induction Heating Portable 200 Kw LGBT Wire Continuous Annealing Machine With Induction Heating Machine
Specifications
Brand Name :
YUYANG
Model Number :
YYSQ-TC - 200AC
Certification :
CE, ISO
Place of Origin :
China
MOQ :
Set/Sets
Price :
US $ 3000-14000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
5-15 days
Packaging Details :
1160 x 1040 x 1320mm
Rated Power output :
200Kw
Frequency rang :
5-20khz
Current input :
300A
Product size :
main : 870*550*1610MM；Flexible transformer : OD146MM
Net Weight :
main : 185kg；Flexible transformer : 20 kg
Gross weight :
50C
Duty cycle :
100%
Brand :
YUYANG
The flow rate of cooling water: :
0.08-0.16Mpa 12L/Min
Work power :
340V-430V
Description
Touchscreen Frequency Induction Heating Portable 200 kW IGBT Wire Continuous Annealing Machine
This advanced induction heating equipment utilizes parallel IGBT inverter circuitry to deliver exceptional load adaptability. Engineered for high power output, rapid heating speeds, and operational efficiency, it supports 24-hour continuous operation with comprehensive full-load capability.
Compared to conventional heating methods, this machine significantly enhances economic returns, improves workpiece quality, reduces energy and material consumption, minimizes labor intensity, and creates a superior production environment.
Applications
Heating Applications
  • Hot forging for shaping workpieces using punch press and forging machines
  • Hot fitting for metal connections and composite materials
  • Smelting for melting metals into liquid form
Heat Treatment (Surface Quench)
  • Quenching for tools, automotive parts, electric tools, and machine tools
  • Quench for various hardware metal parts and machined parts (shaft, gear, cam, chuck, clamp)
  • Quench for hardware molds, small-size molds, mold accessories and inner holes
  • Hardening of mechanical parts, gears, shafts, and mold components
Welding Applications
  • Braze welding, silver soldering & brazing
  • Welding of cutting tools, mechanical gadgets, and composite materials
  • Specialized applications for pot bottom welding and heating elements
Annealing Processes
  • Annealing of various stainless steel products
  • Tempering and modulation processes
Machine Images
Touchscreen Frequency Induction Heating Portable 200 Kw LGBT Wire Continuous Annealing Machine With Induction Heating Machine
Front View
Touchscreen Frequency Induction Heating Portable 200 Kw LGBT Wire Continuous Annealing Machine With Induction Heating Machine
Front View
Touchscreen Frequency Induction Heating Portable 200 Kw LGBT Wire Continuous Annealing Machine With Induction Heating Machine
Internal Components
Touchscreen Frequency Induction Heating Portable 200 Kw LGBT Wire Continuous Annealing Machine With Induction Heating Machine
Cooling System
Machine Features
Advanced Power Technology
Utilizes imported high-quality IGBT solid power modules with advanced frequency conversion technology for superior performance and reliability.
Continuous Operation
Advanced cooling system enables 24-hour continuous operation at maximum power output without performance degradation.
Efficient Control
Constant current and power control functions optimize heating efficiency and significantly reduce energy consumption.
Easy Installation
Simple setup process - operational immediately after connecting to standard 380V power and water supply connections.
Programmable Operation
Programmable timing function with fully adjustable heating time, heat-preservation time, and current settings for precise process control.
Comprehensive Protection
Integrated self-diagnosis system with multi-level protection against overvoltage, overcurrent, overheating, and phase loss for maximum operational safety.
