EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction
EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction
EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction
EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction
EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction
EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction
EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction
EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction
EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction
EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction
Specifications
Brand Name :
YUYANG
Model Number :
YY511
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram,Western Union
Delivery Time :
7-30 Days
Packaging Details :
Wooden Box
Method :
Hot&Cool water regular test
Standards :
GB, ASTM, EN 200,EN 1112，EN 817
Function :
The solenoid valve automatically detects and automatically adds water, circulates the water, and provides adjustable test speed.
Range :
70,000 times triangular or rectangular action life test
Water Temperature range :
Room temperature-60℃
Power :
380V 50HZ 2.5KW
Material :
304 stainless steel
Description

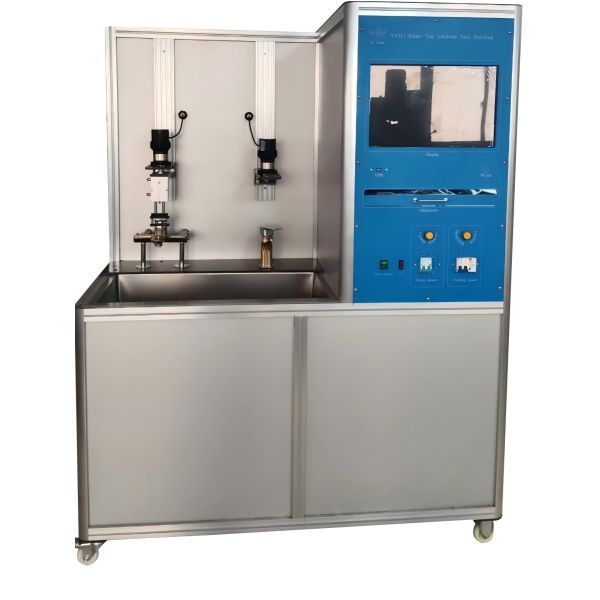

EN817 Professional Faucet Switch Life Tester
This faucet life tester simulates daily lifespan testing of customer-provided faucets. It can test two
faucets simultaneously. Each group of faucets undergoes separate counting. The solenoid valve
automatically detects and automatically adds water, circulates the water, and provides adjustable
test speed.

EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction

Technical Parameters:
1. Control System: Computer-controlled, six-digit count range from 0 to 999999, with selectable
stop.
2. Speed Range: Configurable from 0 to 15 times/min.
3. Stroke: Adjustable from 0 to 10 revolutions.
4. Return Water System: Automatically adds and discharges water for circulation.
5. Control Method: Precision stepper motor control.
6. Operating Voltage and Current: 380V/50Hz.
7. Operating Pressure: Adjustable from 0 to 4bar.
8. Faucet Life Tester Surface Material: Stainless steel.
9. Surface Treatment: Electrostatic powder coating, chrome plating, and oxidation treatment.
10. Water Tank: Stainless steel.
11. Water Pump: 3kW high-power centrifugal pump, generating 4
bar pressure.
12. Filtration System: The water inlet is equipped with a three-stage filtration device to filter
impurities in the incoming water and extend the service life of the water pump.
13. Work Fixture: Based on the final product design (2-station).
14. Safety Protection: Alarm protection devices for leakage, short circuit, and water shortage.
15. Included water heater, providing hot water at 65°C +/- 2°C.

Lifetime Test:

1. Single handle double control spool valve (shower): 70,000 times triangular or rectangular action life test

2. Single handle double handle (single hole): 10000 times life test

3. Swing pipe outlet: 80000 times life test

4. Quick open 90 degrees spool valve: 200000 times life test

5.The device can be used to test the mechanical endurance of cartridges and diverters in single-lever taps in accordance with EN 817:2008, clauses 12.1 and 12.2.
