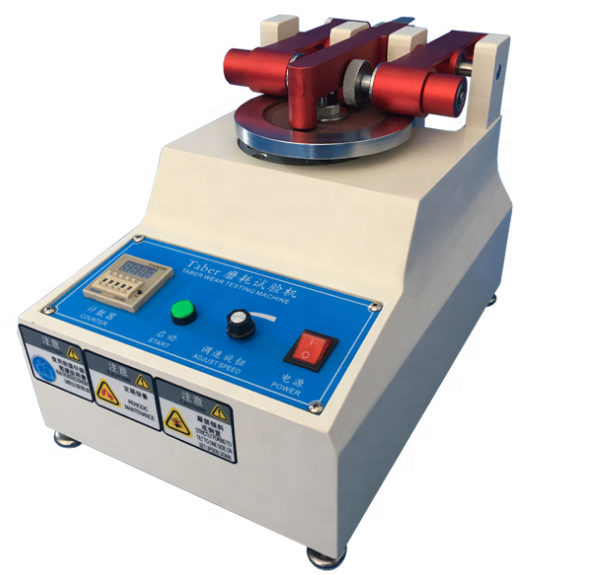

Taber Abrasion Resistance Tester for Rubber Plastic Rubber Textile Electronic
Taber Abrasion Resistance Tester for Rubber Plastic Rubber Textile Electronic
Taber Abrasion Resistance Tester for Rubber Plastic Rubber Textile Electronic
Taber Abrasion Resistance Tester for Rubber Plastic Rubber Textile Electronic
Taber Abrasion Resistance Tester for Rubber Plastic Rubber Textile Electronic
Taber Abrasion Resistance Tester for Rubber Plastic Rubber Textile Electronic
Taber Abrasion Resistance Tester for Rubber Plastic Rubber Textile Electronic
Taber Abrasion Resistance Tester for Rubber Plastic Rubber Textile Electronic
Specifications
Brand Name :
YUYANG
Model Number :
YY007
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
pending
Payment Terms :
Western Union,T/T,L/C,Paypal
Packaging Details :
plywood case
Description
Specification
Specimen Size:
ED:108mm ID:8mm ,3mm
Abrasion Wheel:
2"(max.45mm), 1/2"(W)
Wheel Center Distance:
63.5mm
Rotating Speed:
60/72 rpm
Load:
250g, 500g, 1000g
Counter:
LCD Touch screen, 0-999,999 Automatic shutdown
Wheel and Specimens disk center space:
37~38mm
Machine Size:
(L*W*H)530*320*310mm + vacuum cleaner
Weight:
18kg (Excluding vacuum cleaner)
Power:
1, AC220V/50Hz
Wear index calculation formula:
Abrasion loss weight/test turnover number×1000
Design criteria:
DIN-53754, 53799,53109,52347, TAPPI-T476, ASTM-D1044,D3884, ISO-5470
Specimen Size:
ED:108mm ID:8mm ,3mm
Abrasion Wheel:
2"(max.45mm), 1/2"(W)
Wheel Center Distance:
63.5mm


Standards

ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799

Feature

1.Unique wear process. Place test sample on turntable and two abrasive wheel press on material to make material to wear.
2.Specimen turntable speed control options of both 60 rpm and 72 rpm.

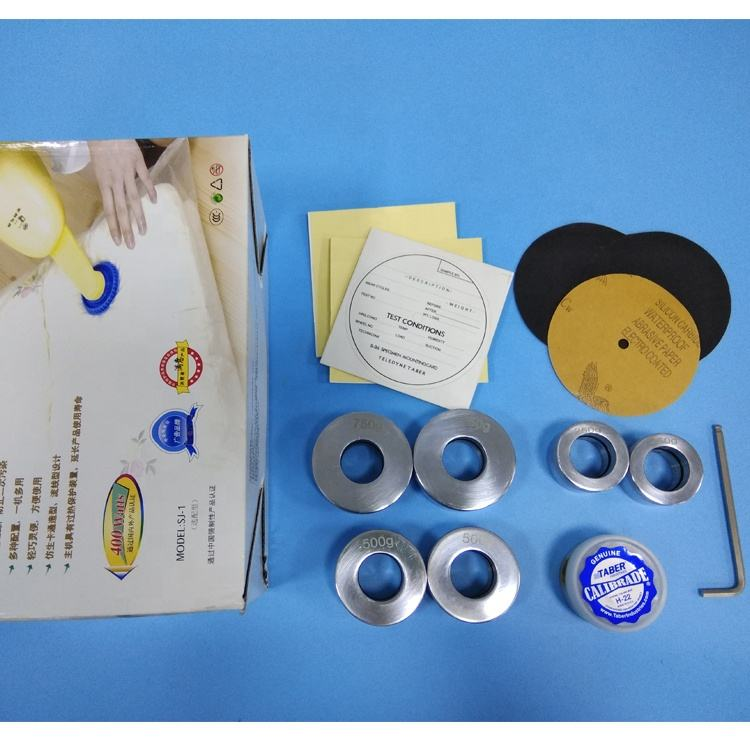

3.Precision steel weights of 250 grams and 750 grams are furnished to provide standard wheel loads of 500 and 1000 grams. Weights are marked to show total load on each wheel. This marking includes the weight of the abrading arm (250 grams).
4.Equip with vacuum cleaner to clear abrasive dusts Can test with different wear medium and accessories.

Key attributes


Type
Testing Machine
Accuracy
custom
place of origin
Dongguan, China
customized support
OEM, ODM
power
custom
Protection Class
IP55
Voltage
220V
brand name
YUYANG
warranty
1 year
Product name
Taber Tester
Application
Textile Rubber Plastic Leather
Function
Resistance Test Machine
Power supply
220V 50Hz
Warranty
1 Year
Specimen Size
ED:108mm ID:8mm ,3mm
Abrasion Wheel
2"(max.45mm), 1/2"(W)
Counter
250g, 500g, 1000g
Gyration Speed
60±1rpm
Grinding wheel model
H18,H22,CS10,CS17,S32,S33

Packaging and delivery

Selling Units
Single item
Single package size
60X50X40 cm
Single gross weight
35.000 kg
