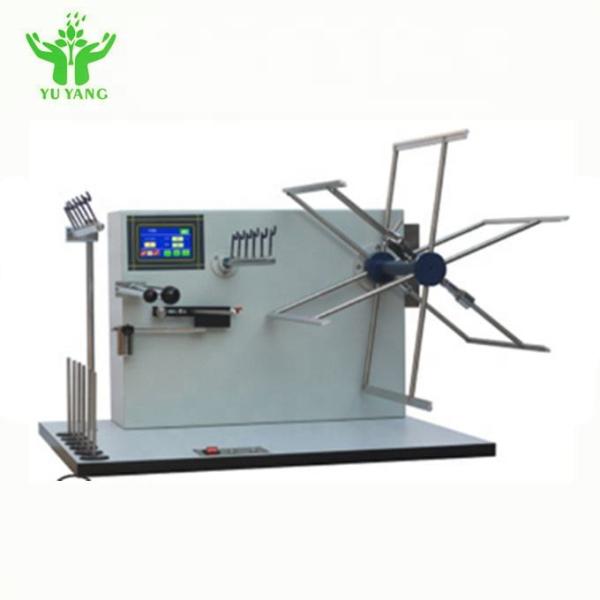

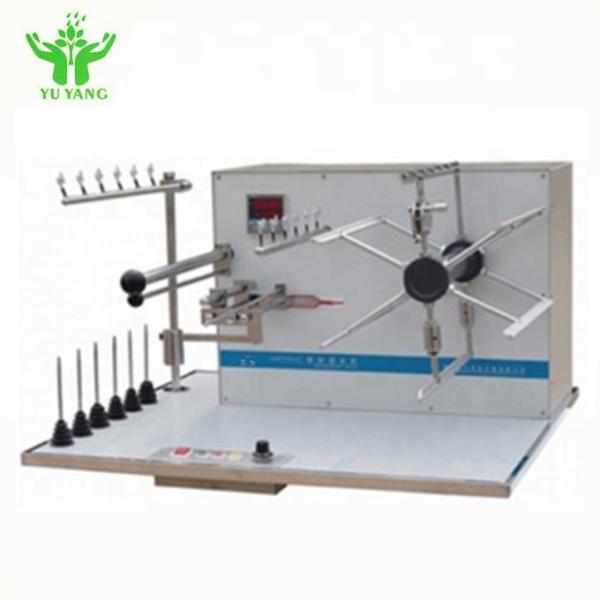

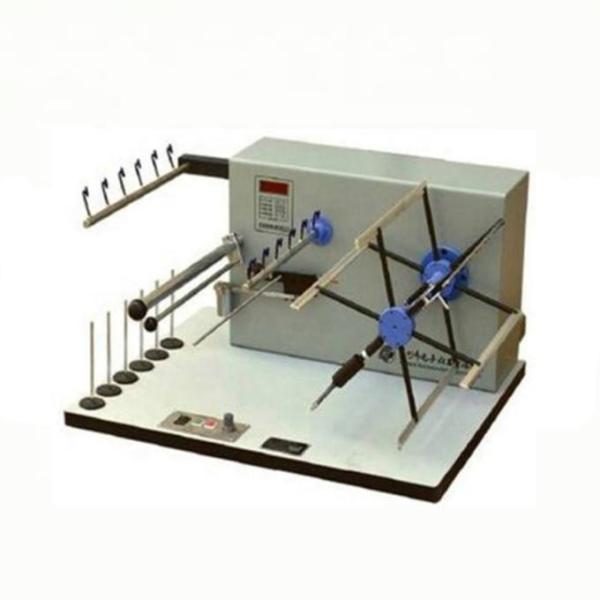

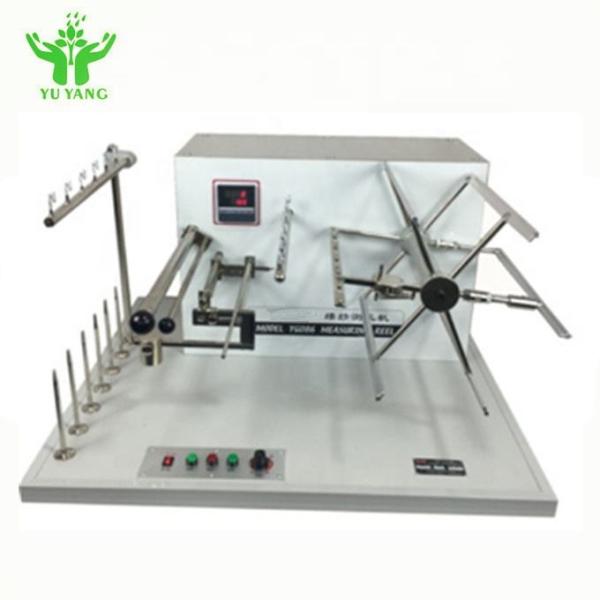

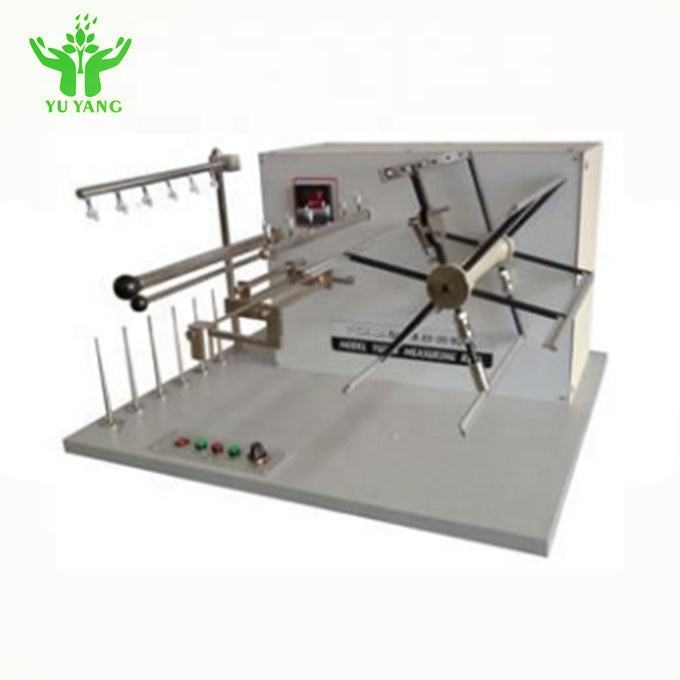

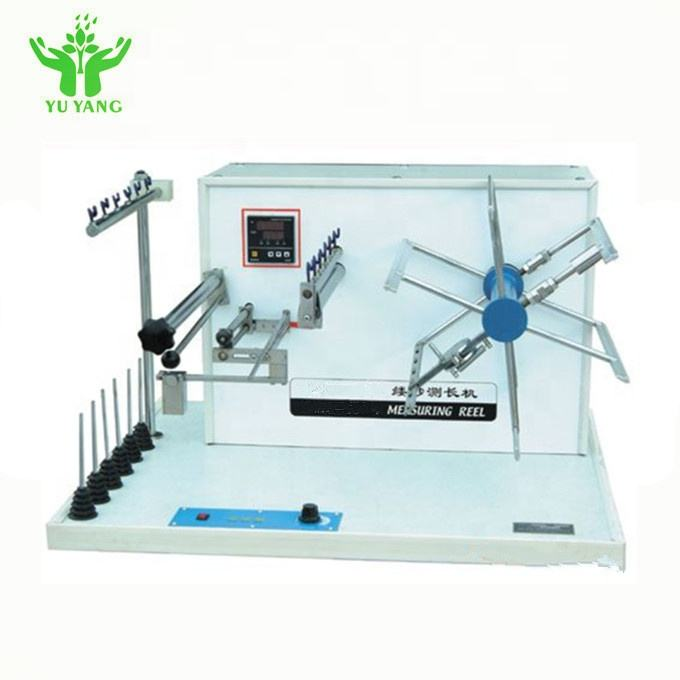

Electronic Digital Textile Yarn Wrap Reel Test Equipment
Electronic Digital Textile Yarn Wrap Reel Test Equipment
Electronic Digital Textile Yarn Wrap Reel Test Equipment
Electronic Digital Textile Yarn Wrap Reel Test Equipment
Electronic Digital Textile Yarn Wrap Reel Test Equipment
Electronic Digital Textile Yarn Wrap Reel Test Equipment
Electronic Digital Textile Yarn Wrap Reel Test Equipment
Electronic Digital Textile Yarn Wrap Reel Test Equipment
Specifications
Brand Name :
YUYANG
Model Number :
YY001
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
pending
Payment Terms :
Western Union,T/T,L/C,Paypal
Packaging Details :
plywood case
Description

Usage

Electronic Wrap Reel is designed to produce skeins of yarn of a pre-determined length and number of turns for count and/or strength testing. Complete with yarn package stand and pre-tension device, fitted with pre-determined counter.


Standards

ASTM D1907 Textile Testing Equipment Standard Test Method for Linear Density of Yarn (Yarn Number) by the Skein Method
ASTM D2260 Tables of Conversion Factors and Equivalent Yarn Numbers Measured in Various Numbering Systems
ISO 2060 Textiles -- Yarn from packages -- Determination of linear density (mass per unit length) by the skein method
BS 2010 Method for determination of the linear density of yarns from packages
DIN 53830 Testing of textiles; determination of linear density of single and plied yarns (reel method)


Characteristics

1. Electronic Wrap Reel Use MCU to control unit, allow numeric programming parameter (such as speed, bobbin number, reel presetting parameters are pre-settable), and auto tracking speed of reel, have two start up model (hard startup, soft start up), all make unit work consistently and stably;
2. Precision DC speed regulating motor with synchromesh belt makes precisely positioning;
3. Numeric speed controlling panel, make unit work consistently and stably;
4. Two optional start up mode (hard start up, soft start up), do not break yarn when start up;
5. Electronic limit trips, total rev number and user programmable stops;
6. Closed-loop controlled and speed tracking system, Ensure to keep even speed when Voltage is variable.


Model
YY821
Reel circumference
1000mm (metric system)
Rev of reel
25-300 RPM (numeric pre-settable)
Interval of spindle
65cm
Number of wrap
2~9999 Rev(pre-settable)
Programmable stop
1~9 rev(pre-settable)
Traveling reciprocating distance
35mm±1mm
Reeling pre-tension
0~100cN (pre-settable)
Instrument Size
780×660×480mm
Instrument weight
50kg


Features

1. Timing cog belt of direct transmission, No-lap skid
2. Countint by Optocoupler
3. Import electronic tension sensors, dynamic display the around yarn tension, no additional tension impact (B type)

Key attributes

Type
Testing Machine
Accuracy
custom
place of origin
Guangdong, China
customized support
OEM, ODM
power
custom
Protection Class
IP55
Voltage
220 V
brand name
YUYANG
warranty
1 year
Reel Circumference:
1000mm
Interval Of Spindle:
65cm
Number Of Wrap:
2~9999 Rev
Rev Of Reel:
25-300 RPM
Programmable Stop:
1~9 Rev
Dimensions:
780*660*480mm
Certification
CE


Packaging and delivery

Selling Units
Single item
Single package size
78X66X48 cm
Single gross weight
47.000 kg
